Comm Select button — Repeatedly press this button as necessary to select the board
to be connected to the Configuration port (item e ). The Comm LED (item a ) for the
selected board lights.
e
Config port — This 2.5 mm mini stereo jack serves the same serial communications
function as the Remote RS-232 port on the transmitter or receiver board, but is easier
to access than the ports on the boards after the units have been installed and cabled.
The 9-pin D to 2.5 mm mini jack TRS RS-232 cable (shown below), provided with the
enclosure, can be used for this connection.
6 feet
(1.8 m)
Part #70-335-01
5
1
9
6
Sleeve (Gnd)
Ring
Tip
9-pin D Connection TRS Plug
Pin 2 Computer Rx line Tip
Pin 3 Computer Tx line Ring
Pin 5 Computer signal ground Sleeve

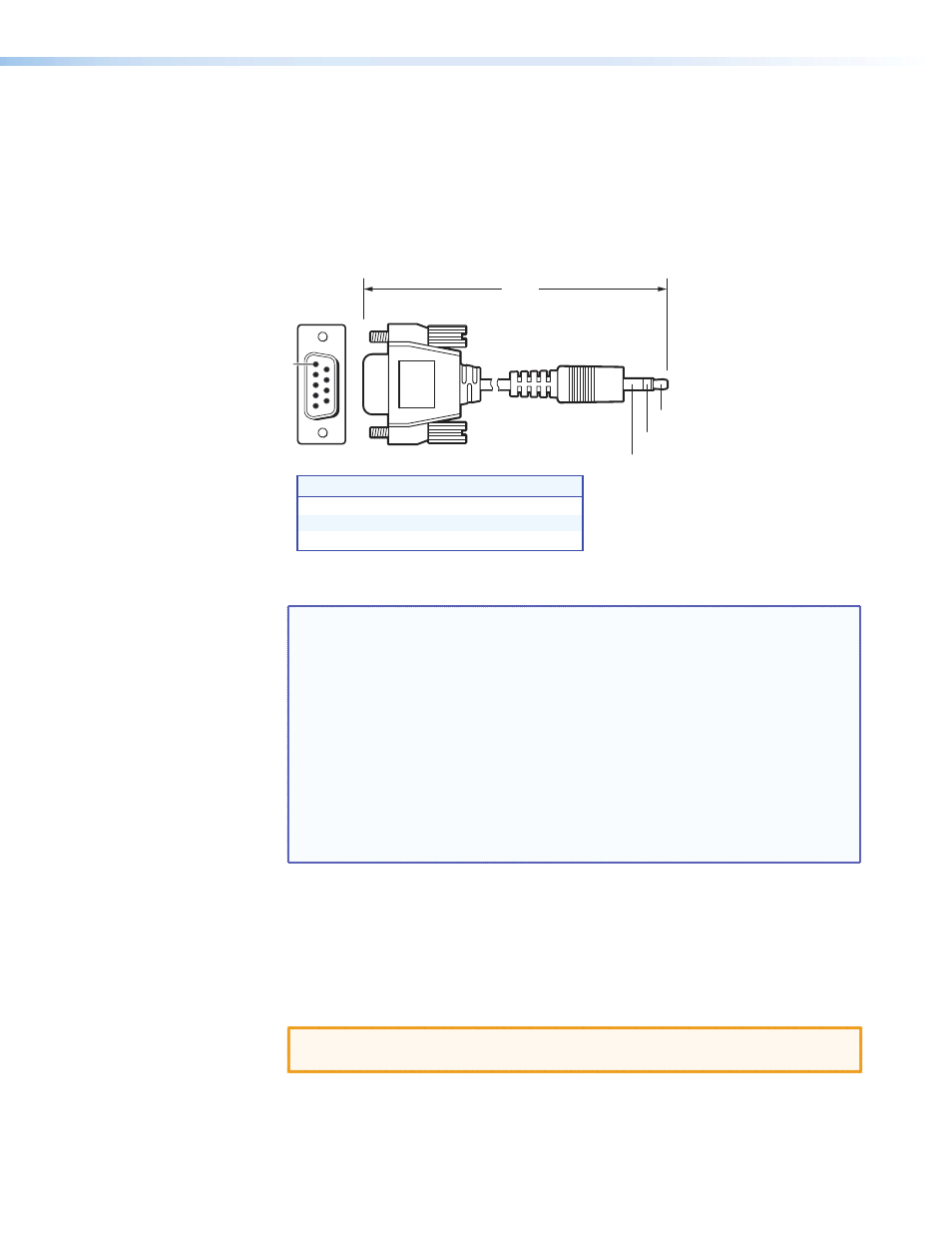

Figure 10. Pinout for the 9-pin TRS RS-232 Cable
NOTES: • This port is for remote control of the transmitter or receiver, not for the
over fiber RS-232 link.
• This port parallels the Remote RS-232 ports on the boards. If an active
front panel configuration connection is made, the Remote RS-232 port
on the PowerCage FOX Tx/Rx AV board becomes inactive.
• The maximum distances from the transmitter or receiver to the
controlling device can vary up to 200 feet (61 m). Factors such as cable
gauge, baud rates, environment, and output levels (from the unit and
the controlling device) all affect transmission distance.
Distances of up to 50 feet (15 m) are typically not a problem. In some
cases, the unit may be capable of serial communications via RS-232 up
to 250 feet (76 m) away.
This port has the following protocols:
z 9600 baud • no parity • 8 data bits
z 1 stop bit • no flow control
f
Temp LED — This LED lights to indicate that the temperature within the PowerCage
enclosure is at a dangerously high temperature (approximately 167 °F [75 °C]) and
that equipment damage is imminent
.
CAUTION: If this LED lights, remove power from the unit and contact Extron S3
Sales & Technical Support Hotline.
PowerCage FOX Tx/Rx AV • Installation and Operation 13
