FOX Extenders Main Window

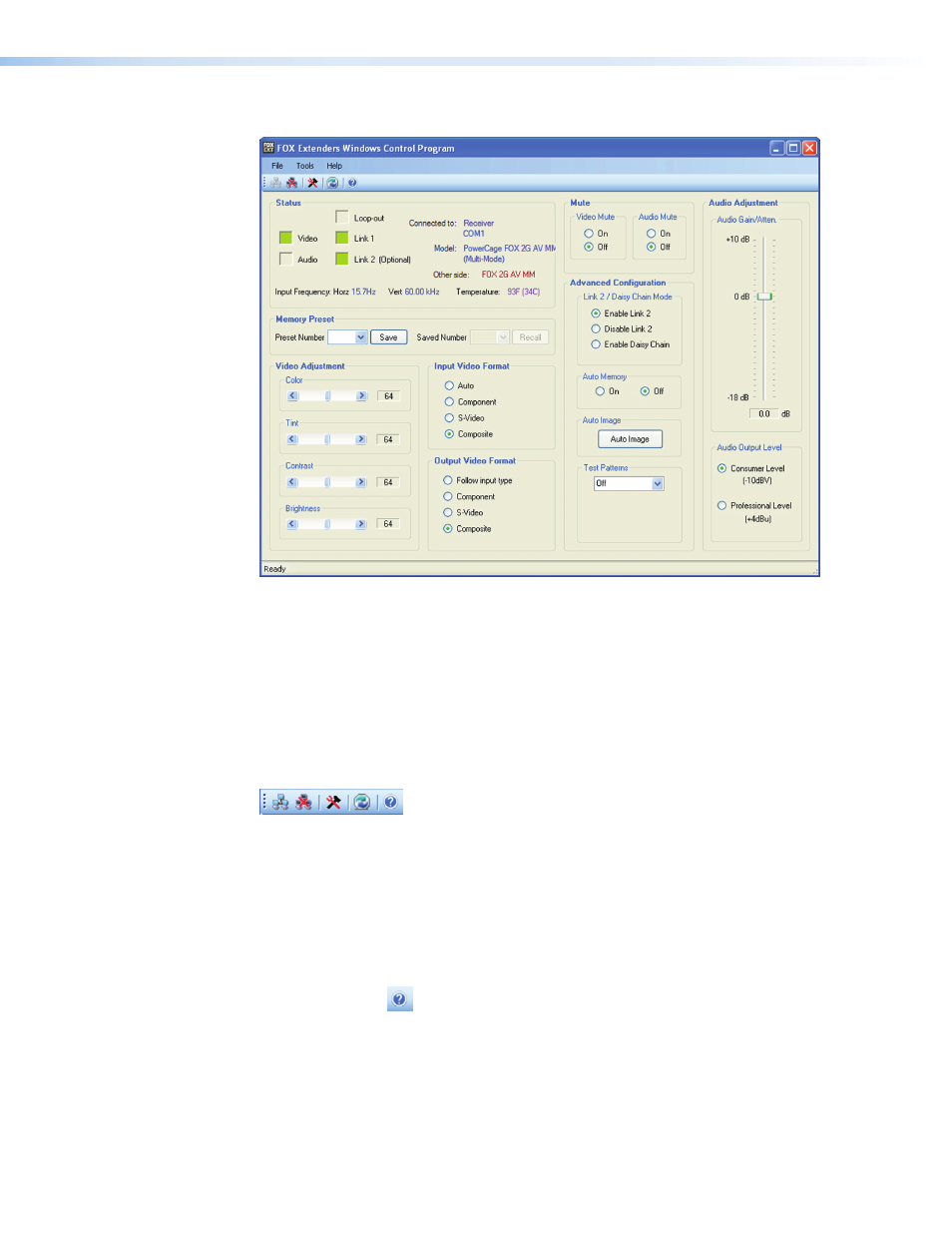

Figure 16. FOX Extenders Main Window
The FOX Extenders Control Program main window contains the following:
Menu bar and toolbar
The File, Tools, and Help menus on the menu bar provide access to various functions,
including connecting to and disconnecting from the FOX Tx/Rx AV; viewing information
about your unit such as firmware version, part number, and model name; uploading
firmware; refreshing the status display; and opening the FOX Extenders control program
help file. Some of these functions are also accessed by clicking buttons on the toolbar.
Figure 17. Toolbar on the Main Window
Accessing the help file
The FOX Extenders Control Program help file provides instructions on using the control
program, including details on the functions available via the menus and toolbar buttons.
You can view the help file by doing any of the following:
z From the Help menu, select Contents .
z Click the Help button on the toolbar.
z Press F1 on your computer keyboard.
PowerCage FOX Tx/Rx AV • Remote Communication and Control 27
