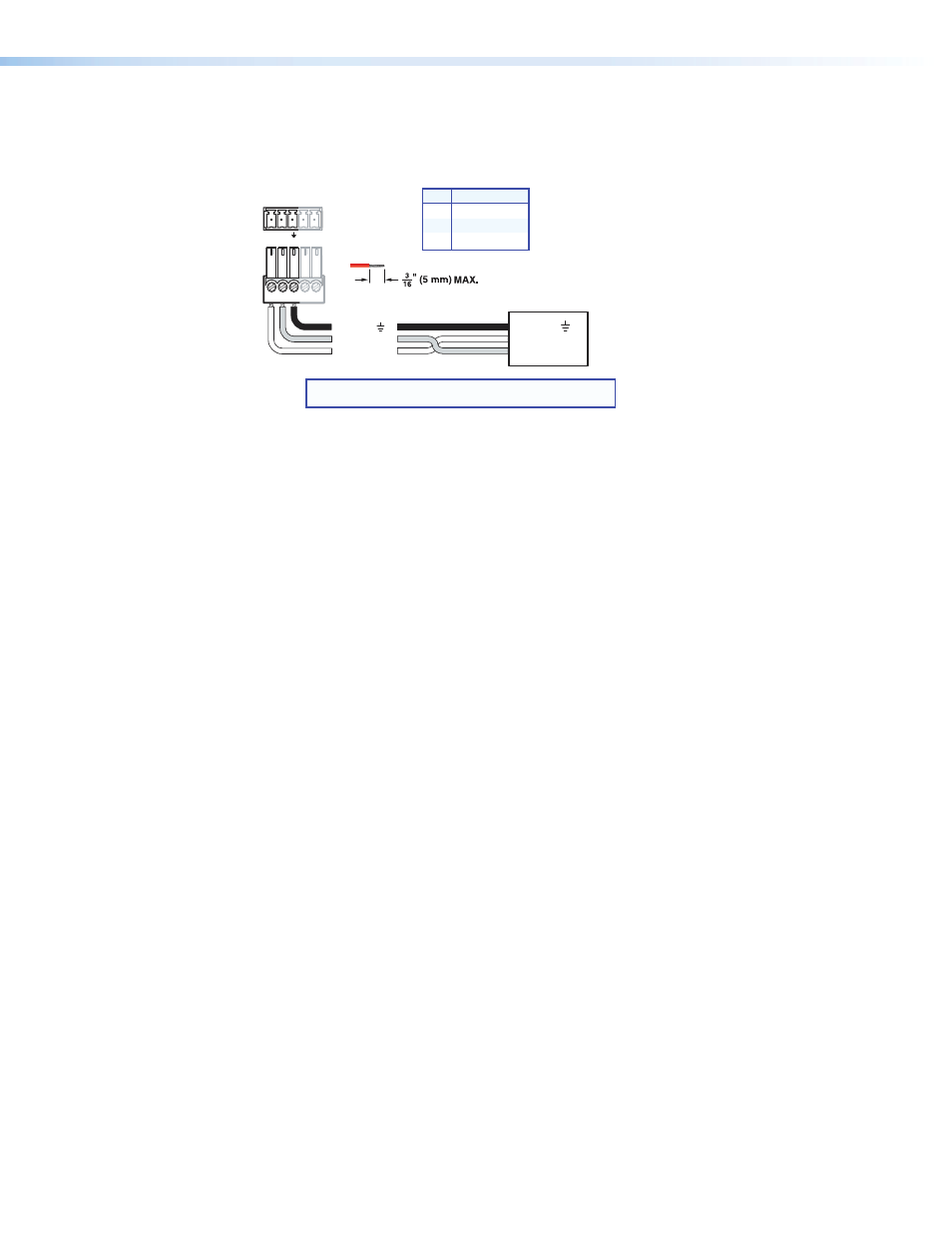

Remote Port on the PowerCage FOX Tx/Rx AV Board
The Remote RS-232 captive screw port is located on the rear panel of the PowerCage
FOX Tx/Rx AV. The pin assignments for this port are shown below.
Do not tin the wires!
Controlling
Device
Ground ( )
Receive (Rx)
Transmit (Tx)
Ground ( )
Receive (Rx)
Transmit (Tx)
Bidirectional
Pin
NOTE: Cross the Tx and Rx lines once between the source
and the target.
1 2
REMOTE
RS-232
Tx Rx
ALARM
Transmit data
Receive data
Signal ground
Function
Tx
Rx
Gnd
Figure 11.
Remote Connector Pin Assignments
Configuration Port on the PowerCage Front Panel
The Extron 9-pin D to 2.5 mm mini jack TRS RS-232 cable, provided with the
PowerCage 1600 Enclosure, can be used for connection to the Config port on the
enclosure front panel. For pin assignments for this port, see “
under “PowerCage 1600 Front Panel Port, Control, and Indicators” in the “Installation and
Operation” section.
SIS Control
Host-to-Unit Instructions
SIS commands consist of one or more characters per field. No special characters are
required to begin or end a command character sequence. When a command is valid, the
unit executes the command and sends a response to the host device. All responses from
the unit to the host end with a carriage return and a line feed (CR/LF = ]), which signals
the end of the response character string. A string is one or more characters.
Introduction to SIS
SIS commands consist of a string of one or more characters per command field.
Commands do not require any special characters to begin or end the command string.
Each response from the unit ends with a carriage return and a line feed (CR/LF = ]),
which signals the end of the response character string. When the PowerCage FOX Tx/
Rx AV unit is first switched on, it sends one of the following messages, depending on the
model:
z
(C) Copyright 2010, Extron Electronics PowerCage FOX Tx AV, Vx.xx, 70-702-11]
(for multimode)
z
(C) Copyright 2010, Extron Electronics PowerCage FOX Tx AV, Vx.xx, 70-702-12]
(for singlemode)
z
(C) Copyright 2010, Extron Electronics PowerCage FOX Rx AV, Vx.xx, 70-702-21]
(for multimode)
z
(C) Copyright 2010, Extron Electronics PowerCage FOX Rx AV, Vx.xx, 70-702-22]
(for singlemode)
where V x.xx is the firmware version number and 70-702-xx is the product number.
