PowerCage 1600 Front Panel Port, Control, and Indicators
The following features are on the front panel of the PowerCage 1600 enclosure.
PowerCage 1600
COMM
1
POWER
ALARM
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
1
PSU
2
PSU
1
FAN
2
FAN COMM
SELECT
CONFIG
TEMP
1
Board Status LEDs
for Multi-function Boards
(up to 16 optional boards)
3
Fan
Status
LEDs
5
Config-
uration
Port
(RS-232)
4
Communi-
cation
Selection
Button
6
System
Temperature
Status LED
2
Power
Supply
Status
LEDs

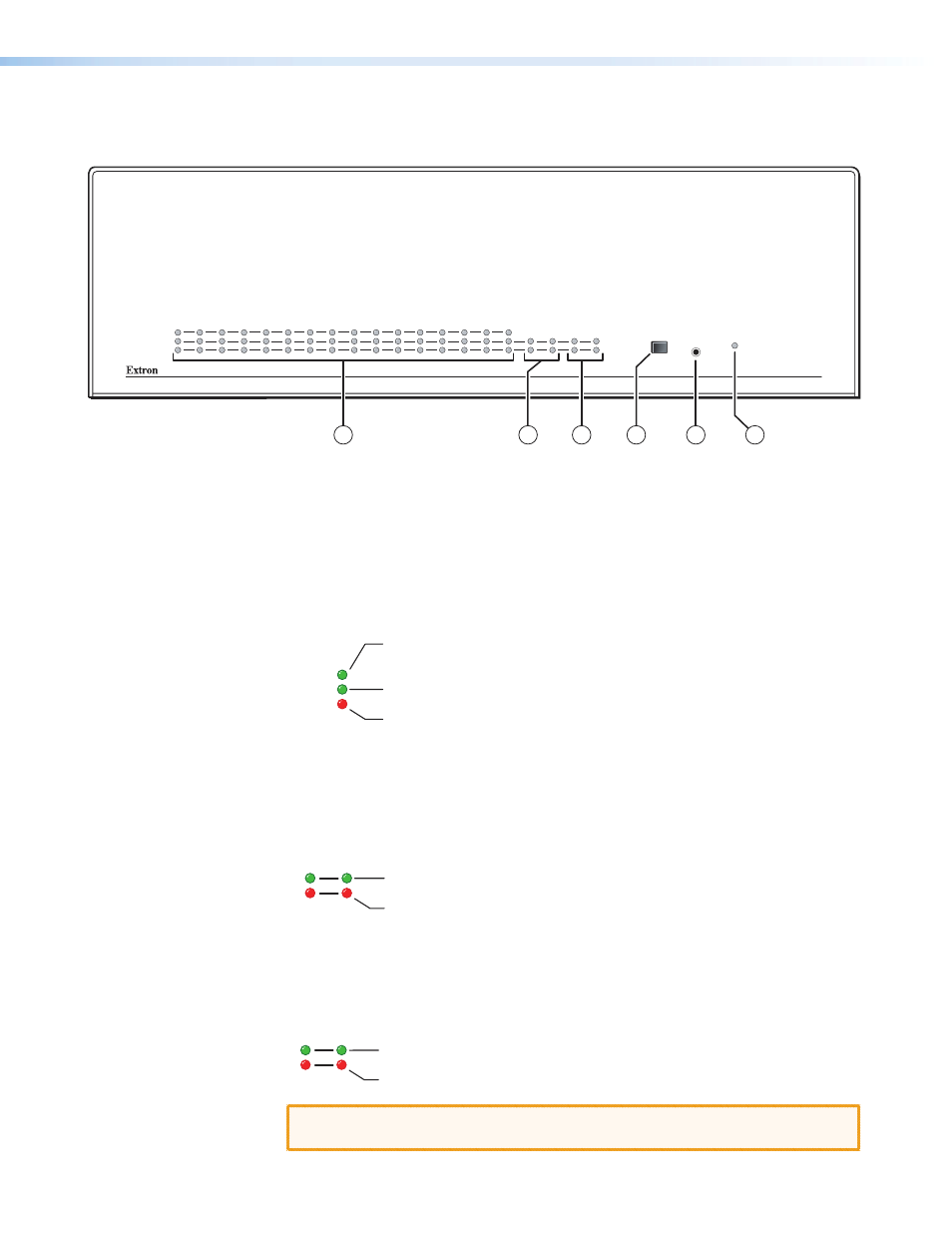

Figure 9. PowerCage 1600 Enclosure Front Panel
a
Board status LEDs: Comm, Power, Alarm (16 board locations) — There is
one set of these LEDs for each of the 16 rear panel slots that is available for boards. If
a board is installed in the identically-numbered slot, the LEDs light under the following
circumstances:
COMM
1
POWER
ALARM
Alarm LED — Lights when the fiber link on a PowerCage FOX board is
broken or disconnected. This feature depends on the model of
PowerCage board.
Comm LED — Lights when the corresponding board is selected and
can be communicated with via the front panel Config port.
Power LED — Lights when the corresponding board is receiving power.
b
Power supply (PSU) status LEDs (2 power supply locations) — These
pairs of LEDs correspond to the primary (included) power supply and the redundant
(optional) power supply. For each power supply, the LEDs light as follows:
1
PSU
2
PSU
Alarm LED — Lights when the power supply malfunctions, such as
providing an overvoltage (14 VDC or more) or an undervoltage
(10.5 VDC or less).
Power LED — Lights when the power supply is receiving power.
c
Fan status LEDs (2 fan locations) — These pairs of LEDs indicate whether the
two fans are functioning correctly. For each fan, the LEDs light as follows:
1
FAN
2
FAN
Alarm LED — Lights when the corresponding fan malfunctions.
Power LED — Lights when the corresponding fan is receiving power.
CAUTION: If a power supply or fan status Alarm LED lights, remove power from
the unit and contact Extron S3 Sales & Technical Support Hotline.
