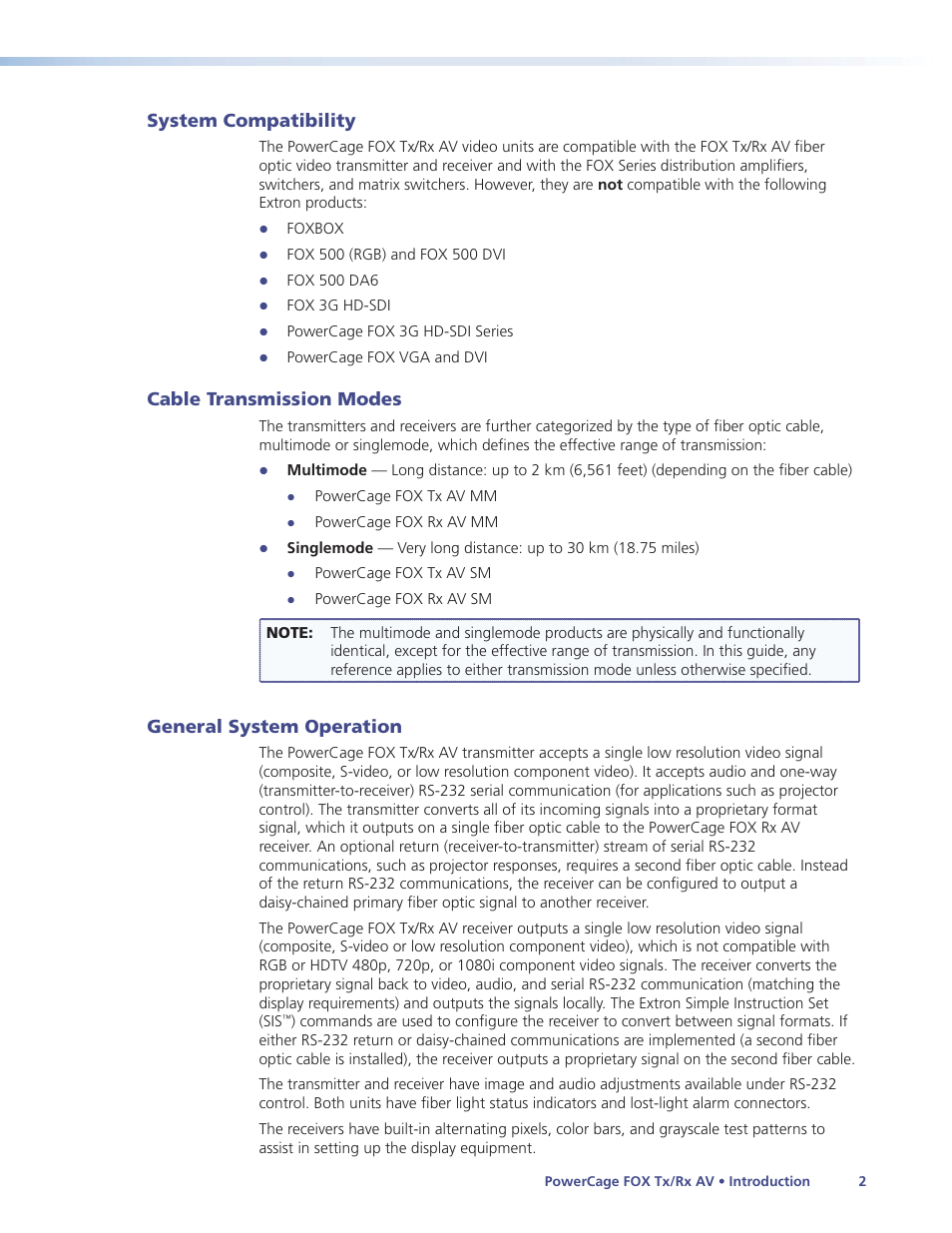

System compatibility, Cable transmission modes, General system operation – Extron Electronics PowerCage FOX Tx_Rx AV User Guide User Manual
Page 8
