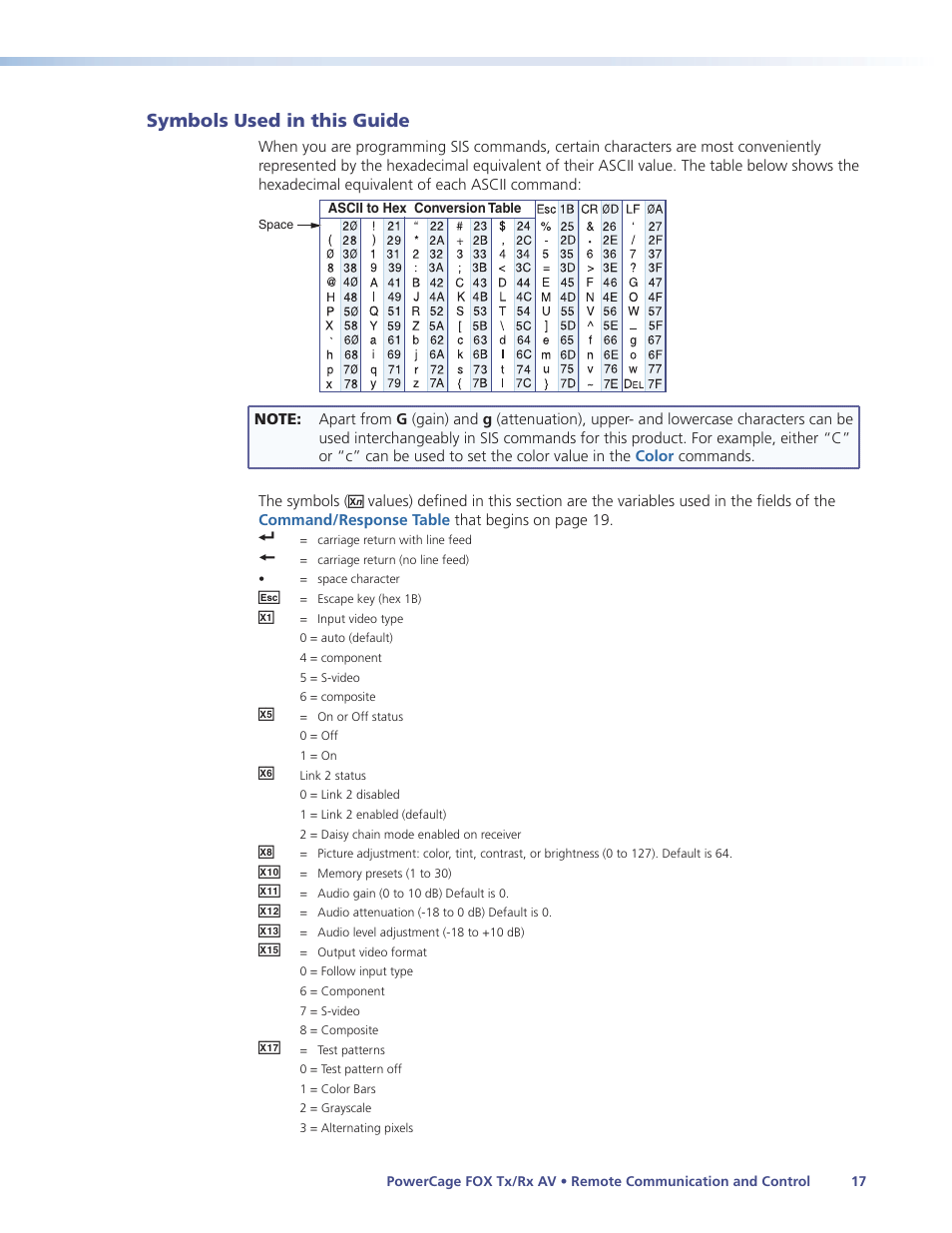

Symbols used in this guide – Extron Electronics PowerCage FOX Tx_Rx AV User Guide User Manual
Page 23
