MLA-VC10 • Configuration and Operation
3-15
Using the command/response table
The command/response table lists valid command ASCII
codes, the MLA's responses to the host, and a description of the
command's function or the results of executing the command.
Lower case characters are acceptable in the command field
unless otherwise indicated. The following ASCII to HEX
conversion table is for use with the command/response table.
Symbol definitions
]
= CR/LF (carriage return/line feed) (hex 0D 0A)
•
= Space
X!
= Volume adjustment range (0 through 100%)
X@
= On/off status
0 = off/disable
1 = on/enable
X#
= Controller firmware version (listed to
two decimal places e.g.: x.xx)

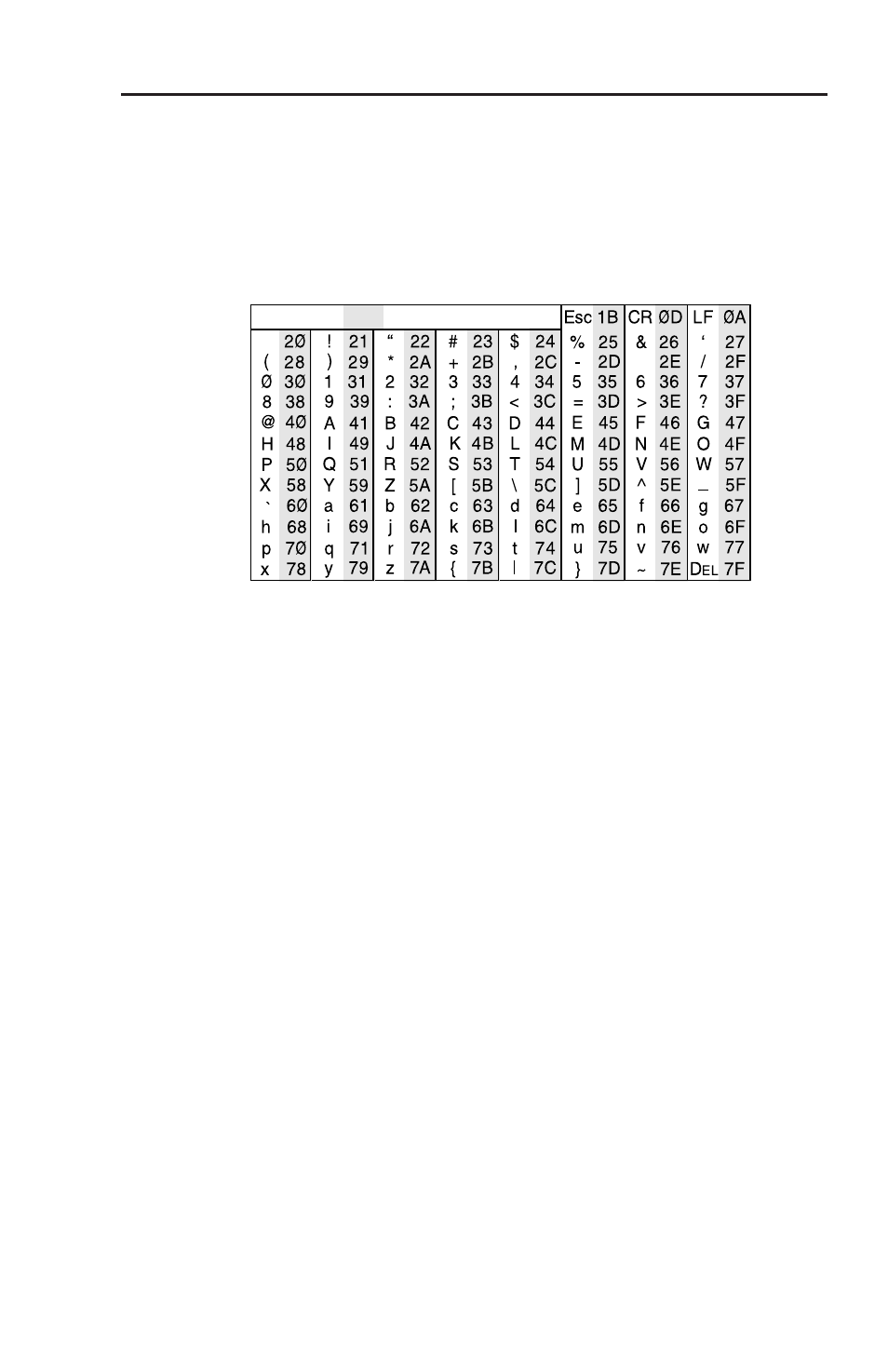

ASCII to HEX Conversion Table
•
Space
