MLA-VC10 • Installation and Setup
2-9
A B
MLA-VC10's
front panel
MLC/RS-232
Power port
+12 VDC
Ground ( )
MLC/RS-232
POWER
Ground all devices
White or
white-striped
wire
An external
power supply
(12 VDC, 1A max.)
Not used for connecting
to computers or
3rd party controllers.
To Controllers

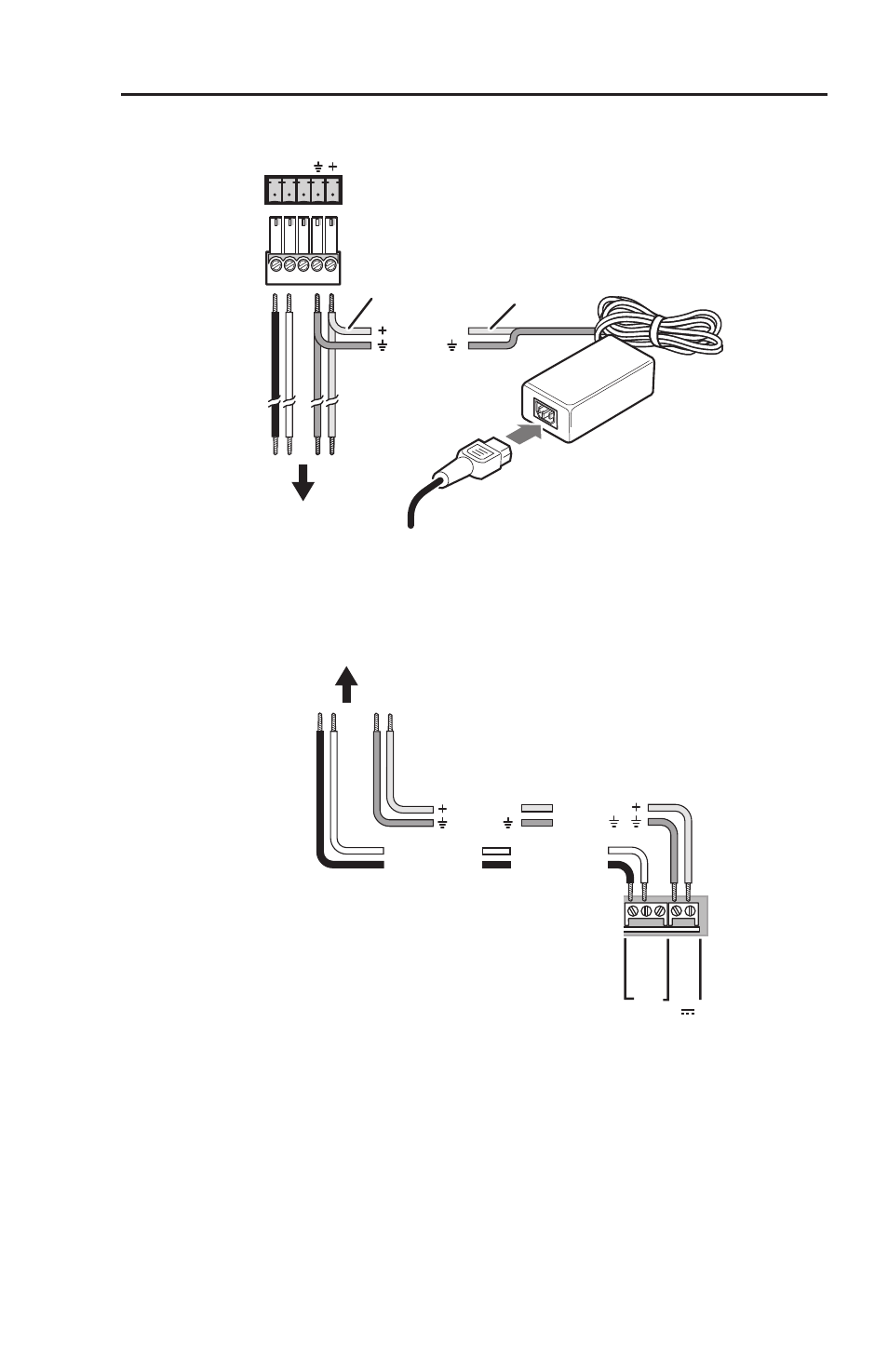

Figure 2-8 — Connecting a power supply and
controllers to MLA-VC10
To MLA-VC10's front panel
MLC/RS-232 Power port
MLS and
Power ports
for MLC 226 IP
or MLC 104 IP Plus
RS-232 12V
MLS PWR
A B
Rx
Tx
GR
OUND
GR
OUND
+12V IN
Ground ( )
Transmit (Tx)
B Receive (Rx)
A
Transmit (Tx)
Receive (Rx)
B
A
+12 VDC
+12 VDC
Ground ( )
Figure 2-9 — Connecting an MLC 226 IP or MLC 104 IP
Plus to MLA-VC10
