Configuration and operation, cont’d – Extron Electronics MLA-VC10 User Manual
Page 32
MLA-VC10 • Configuration and Operation
Configuration and Operation, cont’d
3-4
“Advanced
Configuration” tab
Volume Settings
Select “Range”.
Select “100”.

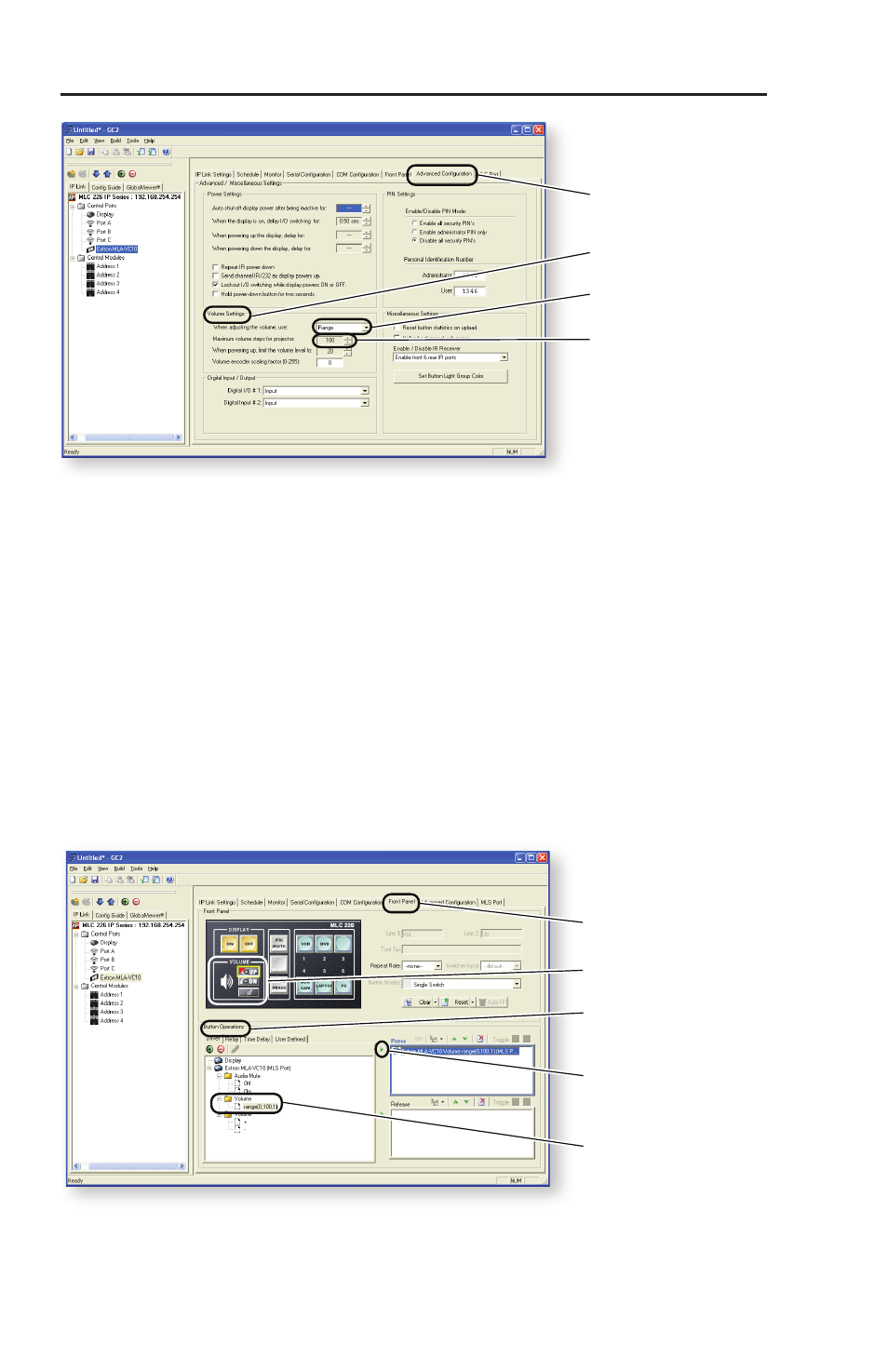

Figure 3-3 — Configuring the driver
12.
Select the Front Panel tab in the right pane and select the
Volume Up
button (see figure 3-4).
13.
In the "Button Operations" section, ensure the Driver tab is
selected and that all the directories and sub-directories in
that window are open.
14.
Highlight the "range(0,100,1)" option.
15.
Click on the green arrow next to the "Press" pane, which
associates the "range(0,100,1)" driver with pressing the
Volume "Up" button.
16.
Select the Volume Down button and repeat steps 13-15, which
will also associate the "range(0,100,1)" driver with pressing
the Volume Down button.
“Front Panel” Tab
Volume Up/Down
Buttons
Select “range(0,100,1)”
Press green arrow
to associate selected
driver with selected
front panel button.
“Button Operations”
section
Figure 3-4 — Configuring the volume buttons
