Page 22
MLA-VC10 • Installation and Setup
Installation and Setup, cont’d
2-10
MLC 206's
MLS/Power
port
Ground ( )
+12 VDC
Transmit (Tx)
B Receive (Rx)
A
A B
MLS / Power
Transmit (Tx)
Receive (Rx)
+12 VDC
Ground ( )
B
A
To MLA-VC10's front panel
MLC/RS-232 Power port

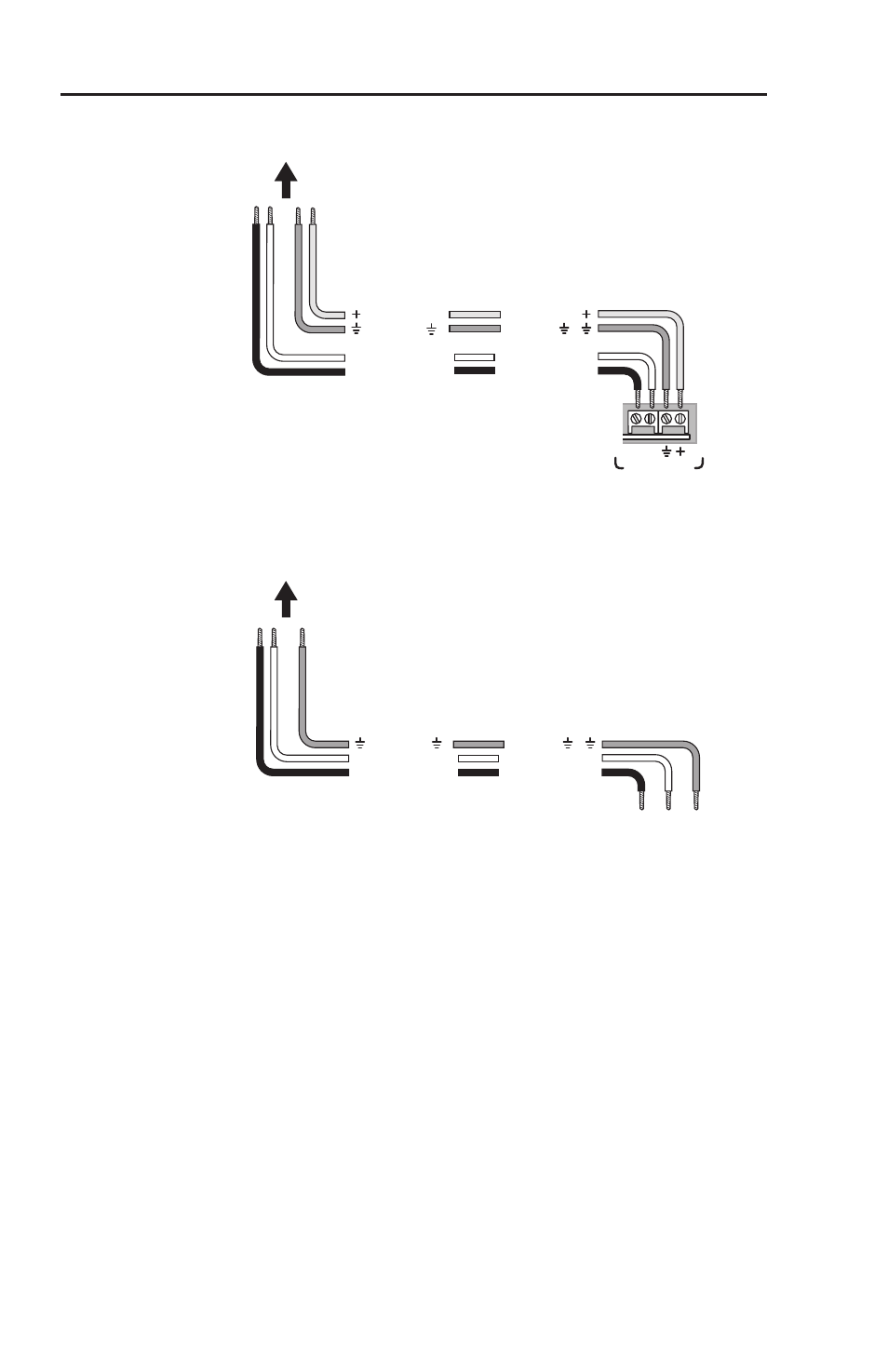

Figure 2-10 — Connecting an MLC 206 to MLA-VC10
Transmit (Tx)
B Receive (Rx)
A
Computer or
Third Party Controller's
RS-232 Port
Rx Tx Gnd
Transmit (Tx)
Receive (Rx)
B
A
Ground ( )
Ground ( )
To MLA-VC10's front panel
MLC/RS-232 Power port
Figure 2-11 — Connecting a third party controller to
MLA-VC10
N
The length of the exposed wires in the stripping process
is critical. The ideal length is 3/16” (5 mm). If the
stripped section of wire is longer than 3/16”, the exposed
wires may touch, causing a short circuit between them.
If the stripped section of wire is shorter than 3/16”, the
wires can be easily pulled out even if tightly fastened by
the captive screws.
C
Do not tin the wires. Tinned wire does not hold its
shape and can become loose over time.
