Mla-vc10 • installation and setup, Extron mlc 226 ip, Extron mla-vc10 – Extron Electronics MLA-VC10 User Manual
Page 27: Toa 900 series amplifier, Front rear, Projector
MLA-VC10 • Installation and Setup
2-15
MLA-VC10
POWER/
STATUS
A B
Front
Rear
MLC/RS-232
POWER
CTRL
AMP/MIXER
CONTROL
1 2 3 4 5 6
ON
7 8
CONFIGURATION
DISPLAY
REMT
VOL
Extron MLC 226 IP
Projector
Extron MLA-VC10
To
MLS
port
TOA 900 Series Amplifier
1k Ohm
MUTE
1
MUTE
2
GND
To
Ground
port
To
Ground
port
To
projector
port
MLC 226 IP
1
2
3
4
5
6
VOLUME
CONFIG
IR
ON
OFF
PIC
MUTE
VCR
DVD
DOC
CAM
PC
LAPTOP
AUTO
RS-232

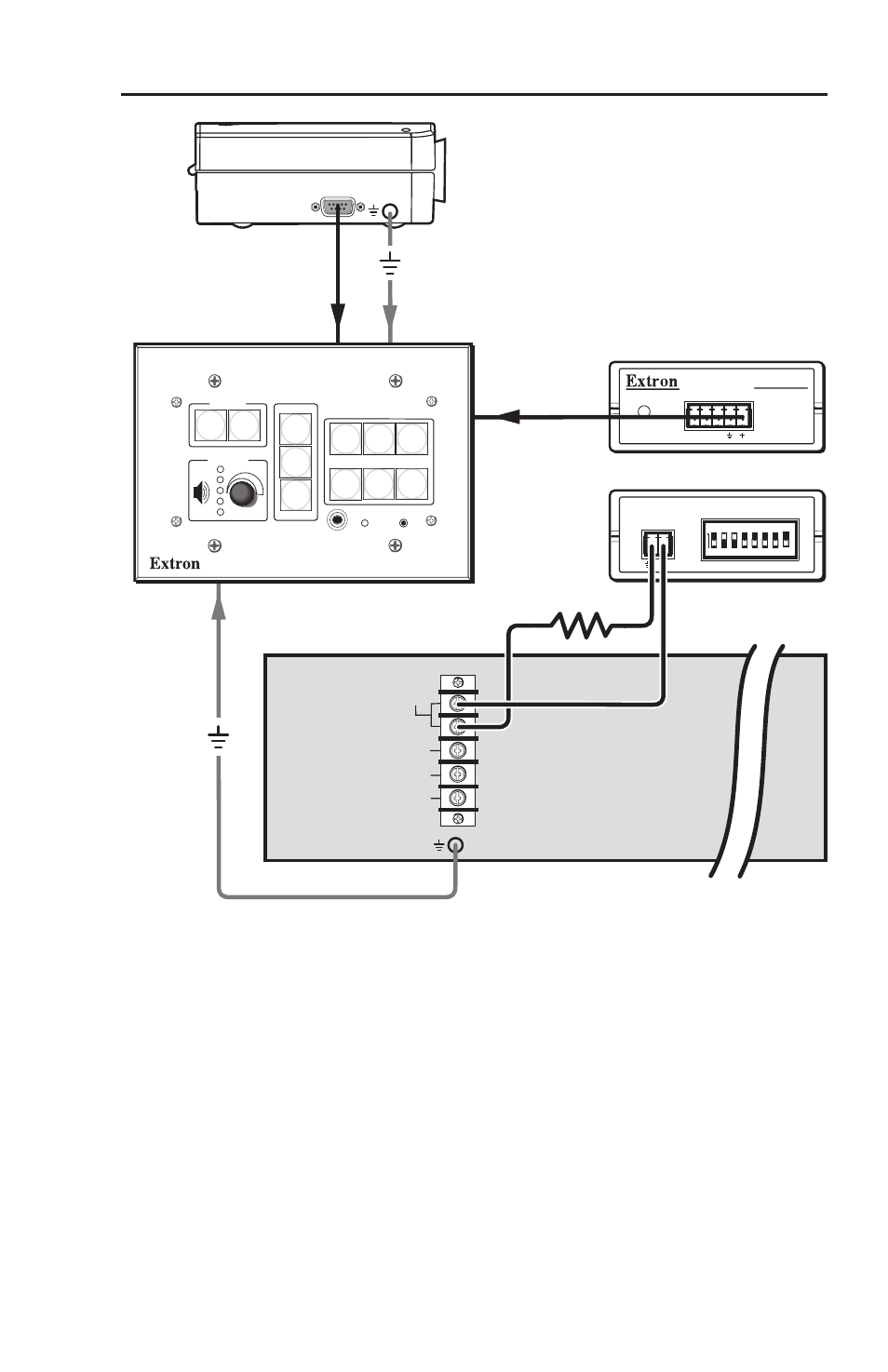

Figure 2-14 — Controlling a TOA 900 Series Amplifier
with MLA-VC10
