Software-based Confi guration and Control, cont’d
DVCM 50 • Software-based Confi guration and Control
5-22
PRELIMINAR
Y
Using the command/response tables
The command/response tables on the following pages list valid command ASCII
codes, the DVCM’s responses to the host, and a description of the command’s
function or the results of executing the command. Upper- and lowercase characters
may be used interchangeably in the command fi eld.
The ASCII to HEX conversion table below is for use with the command/response
tables.

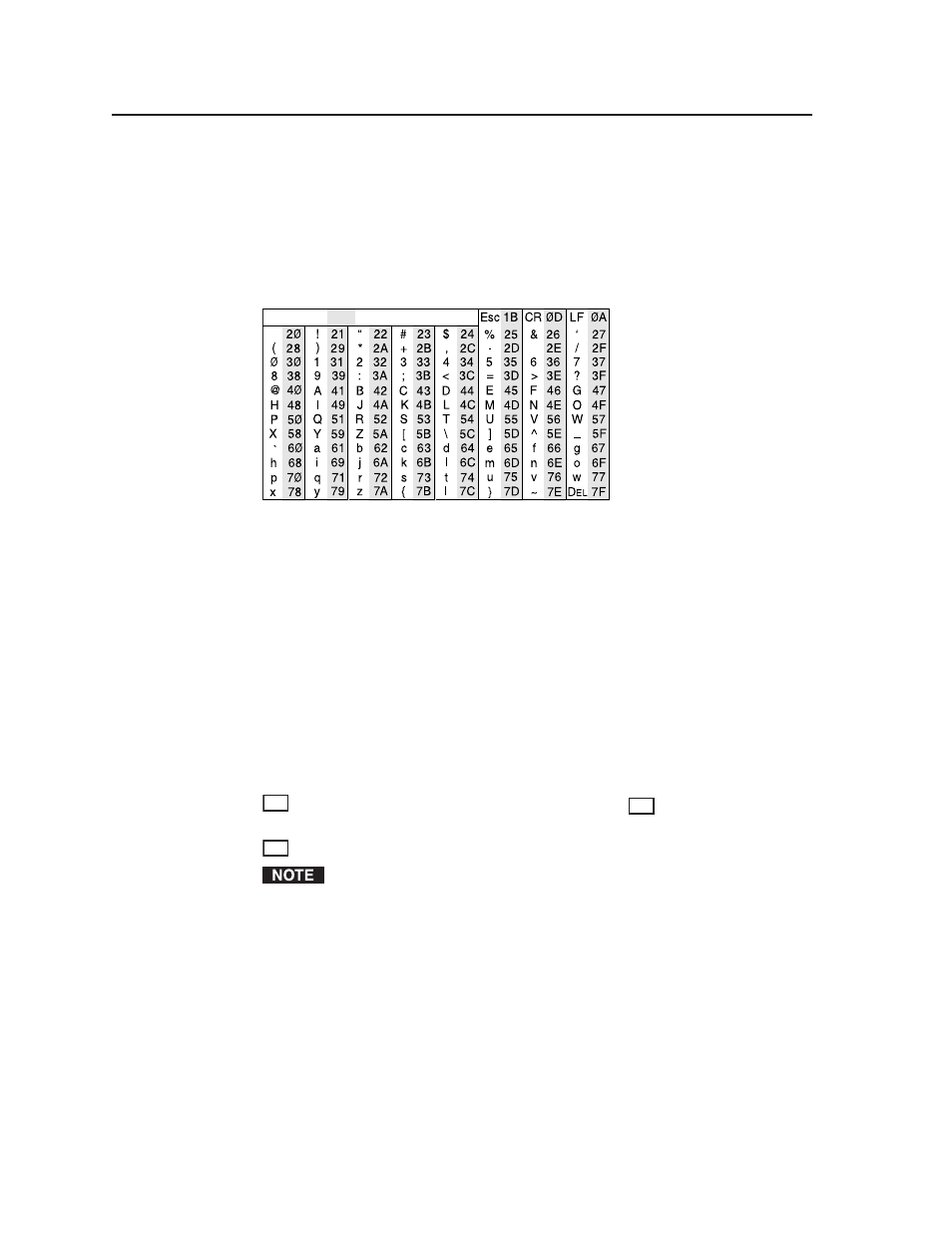

ASCII to HEX Conversion Table
•
ASCII to Hex conversion table
Symbol defi nitions
]
= CR/LF (carriage return/line feed) (hex 0D 0A)
}
= CR (carriage return only) (hex 0D)
• =
Space
E
= Escape key
X!
= Firmware version number (X.XX format)
X#
= On/off
status
0 = off/disabled
1 = on/enabled
??
= Memory block number in hexadecimal, where
??
can be 0 to 7F (hex)
(0 to 127 decimal)
??d
= Memory block number in ASCII numeric notation
Commands are not case-sensitive unless otherwise indicated.
