DVCM 50 • Software-based Confi guration and Control
PRELIMINAR
Y
5
.
Click Learn IR to Button.

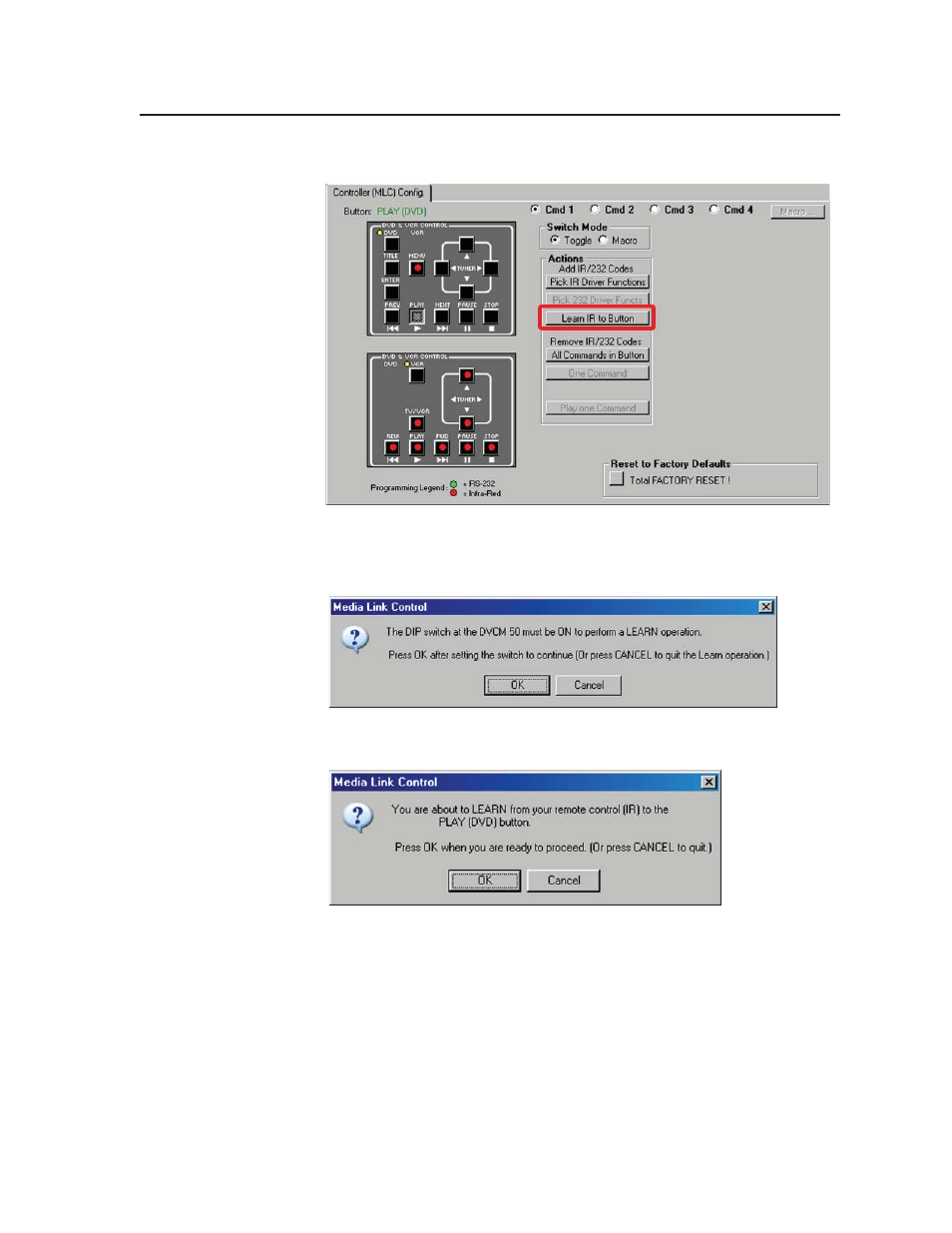

Learn IR to Button on the DVCM 50 screen
If you have not set Confi guration Switch #1 to On (step 1), the following
dialog box opens, prompting you to do so. Set the switch, then click OK.
6
.
The following dialog box opens, indicating the button to which IR codes will
be learned, and to allow you to OK or cancel the IR learning process.
7
.
When you are ready to start, click OK. A Status of IR Learning message area
appears beneath the Actions fi eld, instructing you to aim the DVD or VCR
remote control and press the button whose function you want the DVCM to
learn.
