Preliminar y – Extron Electronics DVCM 50 User’s Manual User Manual
Page 57
5-17
DVCM 50 • Software-based Confi guration and Control
PRELIMINAR
Y

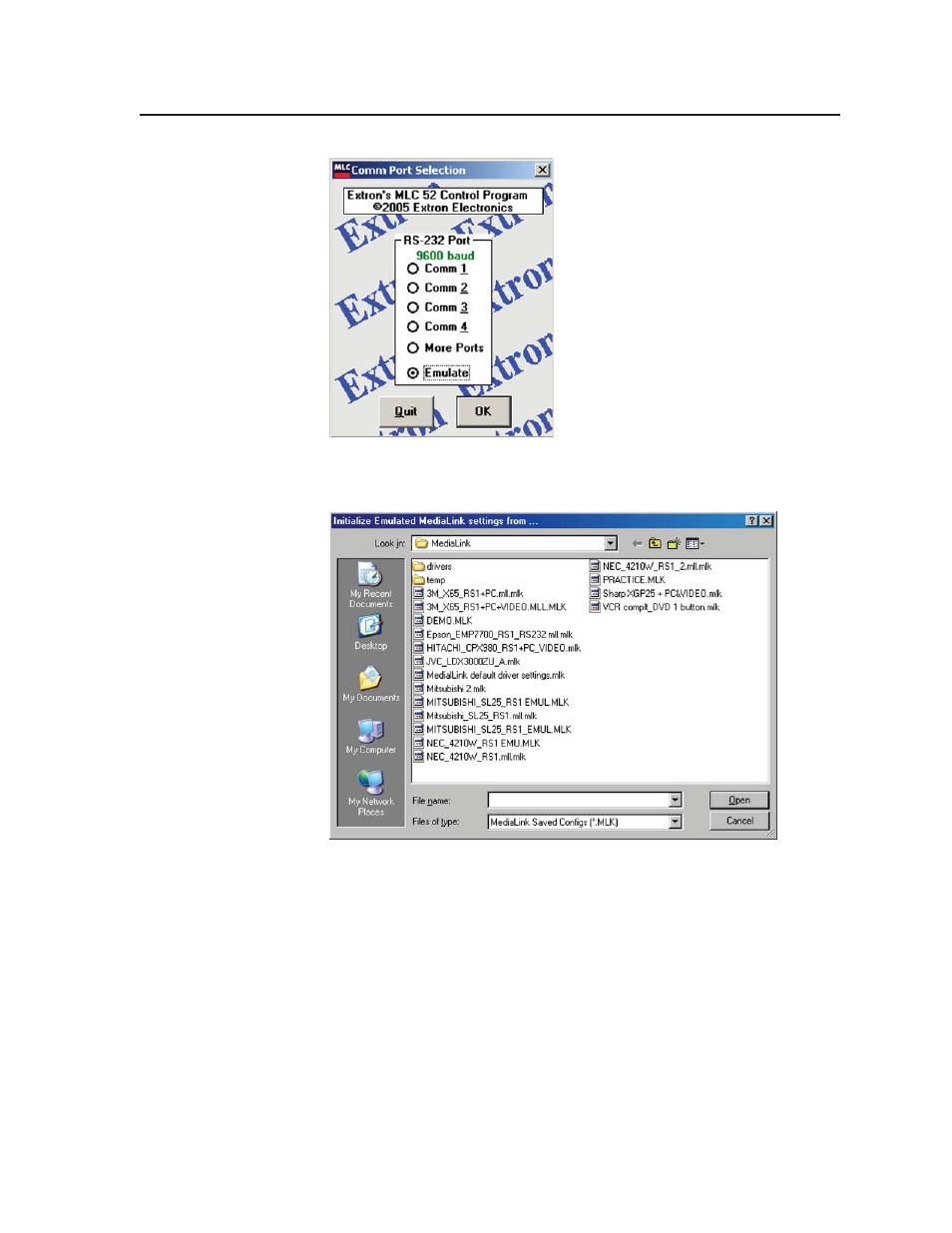

Comm Port Selection screen with Emulate selected
The Initialize Emulated MediaLink Confi guration from... dialog box opens.
Initialize Emulated MedialLink settings from... window
3
.
You can create a new confi guration starting from the default settings, or you
can base the confi guration on an existing setup.
•
If you will be creating a brand new confi guration
, click Cancel on
the Initialize Emulated MediaLink Confi guration from... window. The
emulated system starts out with the DVCM 50 default settings.
•
If you want to create a confi guration based on an existing confi guration
fi le, (one that was previously saved), select the desired confi guration
(___.MLK) fi le, and double-click on it to open it.
The Save Emulated MediaLink Confi guration as... dialog box opens.
