DVCM 50 • Software-based Confi guration and Control
PRELIMINAR
Y

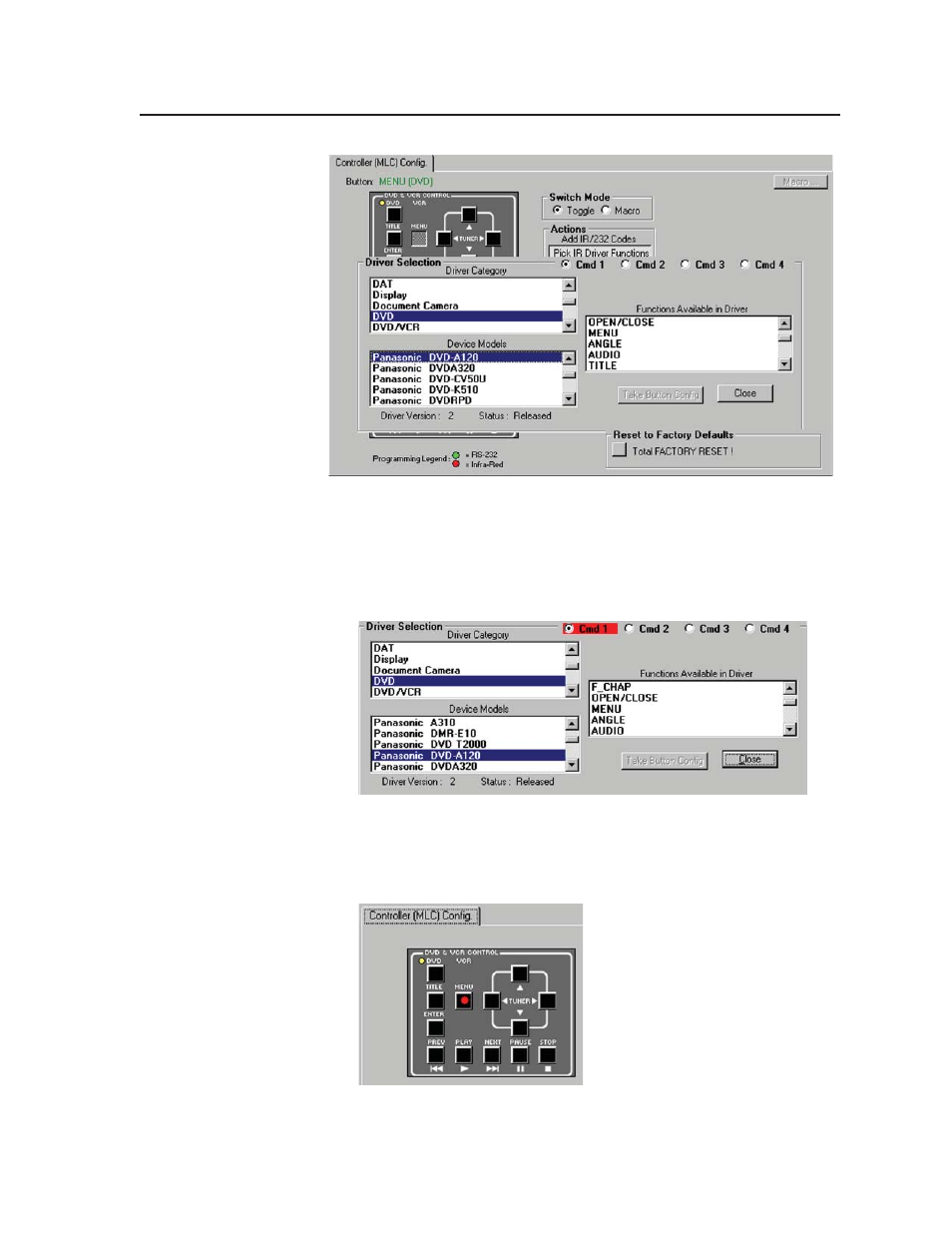

Driver Selection window
4
.
Click the Take Button Confi g button to implement your selections. The
command is programmed into the button’s selected memory block.
•
On the Driver Selection window, the radio button for the command
memory block you just programmed is surrounded by a red fi eld. This
indicates that the block contains an IR command.
Driver Selection window showing that memory block 1 (Cmd 1)
contains an IR command
•
On the DVCM – DVD diagram, a red dot appears on the button you
programmed.
DVD mode diagram showing Menu button programmed
