DVCM 50 • Confi guration and Operation

PRELIMINAR

Y

Confi guring using IR Learning

You can confi gure the DVCM 50 by using IR Learning, which does not require
confi guration software. By this method, you can program the functions on your
DVD or VCR remote control into the buttons on the DVCM front panel.

To program the DVCM via IR Learning, follow these steps:

1

.

Apply power to the DVCM.

2

.

On the rear panel, set confi guration switch #1 to On. All other switches
should be Off.

3

.

Press the DVD or VCR button to select the mode in which the button will be
programmed.

When you press the DVD or VCR mode button, the LED lights above the

button that you pressed, indicating that the front panel buttons will be
programmed for that mode.

4

.

Press the button on the front panel that will store the IR code that you want
the DVCM to learn.

The following takes place on the DVCM rear panel:

The orange button indicator LED(s) light and remain lit to show which

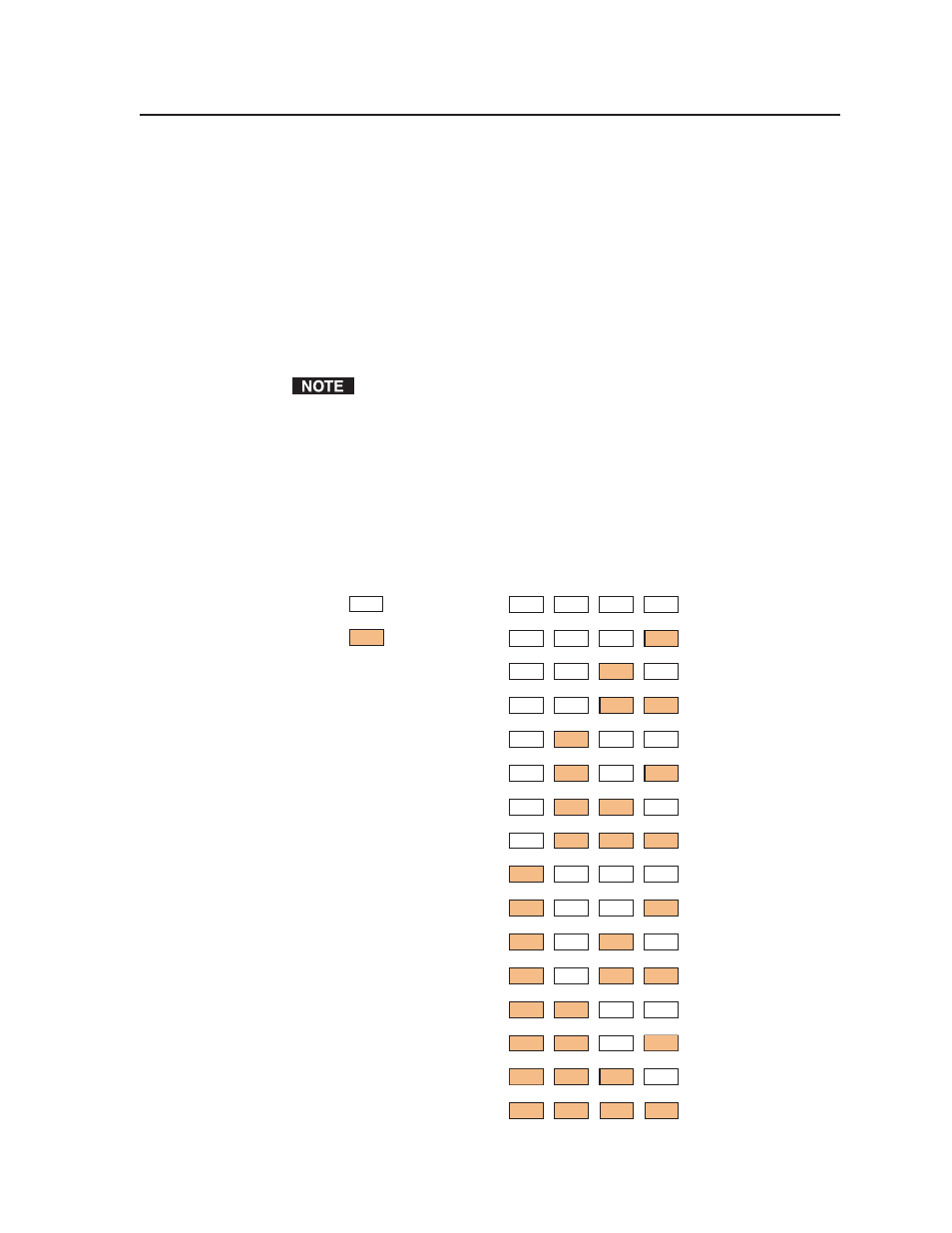

button was pressed. The following diagram shows which LEDs are lit
when each button is pressed.

No Buttons

DVD

Legend

OFF

ON

VCR

UP

TITLE

MENU

LEFT

RIGHT

ENTER

TV/VCR

DOWN

REW

PLAY

FWD

PAUSE

STOP

Button press indicator LEDs
