Selecting Live Mode and Pushing or Pulling a Configuration
To switch from emulate mode to live mode:
4. Click the Live button, see a on the main DSP Configurator screen. The
Connect to device... dialog box opens.
- or -
DMP 44LC
1
4a
4b
3a
3b
3c
2a 2b

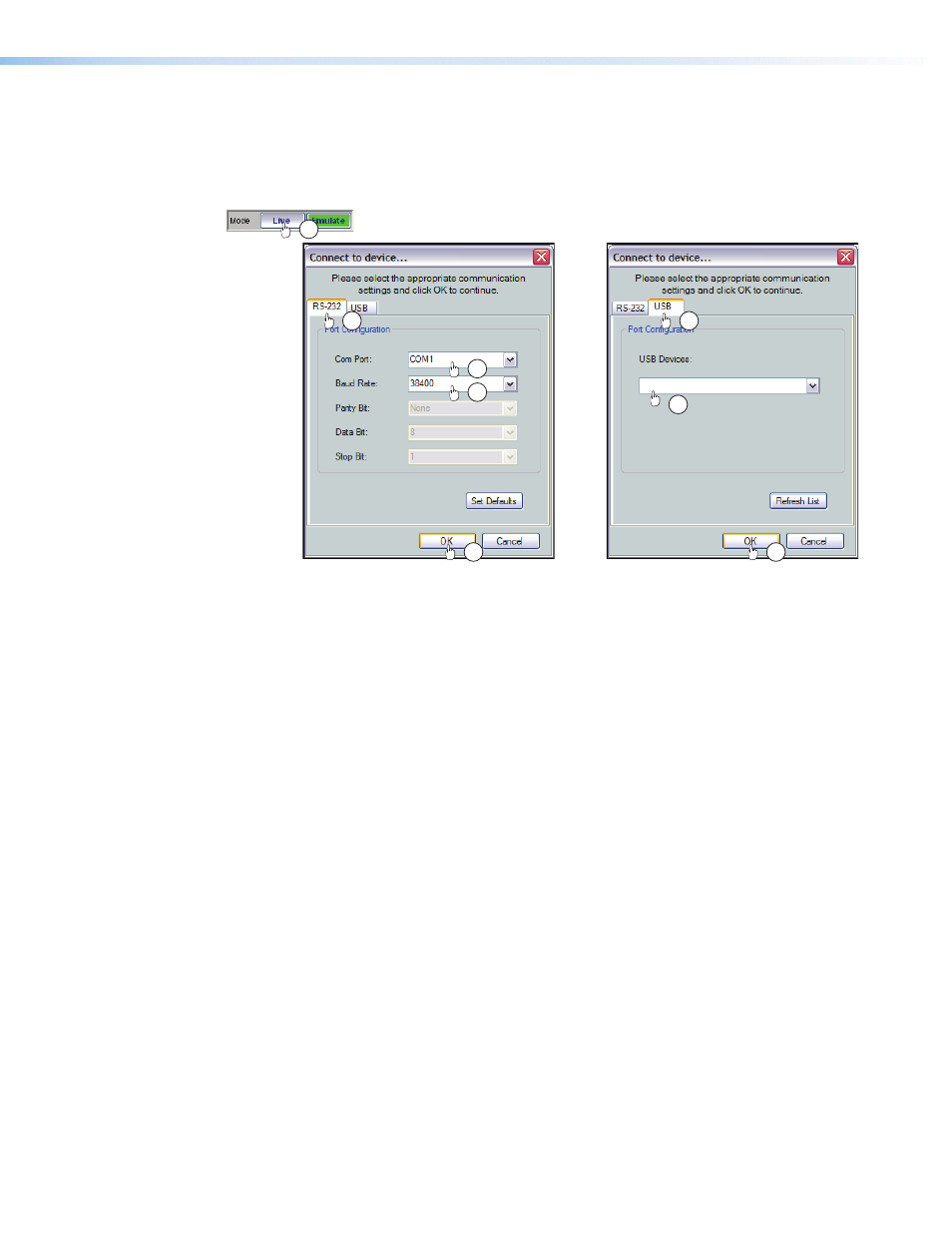

Figure 30. Selecting Live Mode
5. As needed, click either the:
a. RS-232 tab (for connection to the rear panel RS-232 ports — proceed to step 3,
b. USB tab (for connection via the front panel configuration port — proceed to
step 4.
6. If RS-232 was selected in step 2:
a. Click the Com Port drop-down menu and select the PC com port connected to
the rear panel RS-232 port.
b. Check the baud rate displayed in the Baud Rate field. If the baud rate does not
match the device rate, click the Baud Rate drop-down menu and select the
desired baud rate. The default is 38400.
c. Click OK.
The Synchronize with Device dialog box appears. Proceed to step 5.
7. If USB was selected in step 2:
a. Click the USB Device drop-down menu and select DMP 44 LC (or
Extron USB device , if DMP 44 LC is not available),
b. Click OK .
The Synchronize with Device dialog box appears. Proceed to step 5.
Several options are now available for either configuring the DMP 44 LC or
reconfiguring to suit current operating conditions.
DMP 44 LC • Software Control 57
