Installation

This section describes the installation of the DMP 44 LC, including:

Mounting the DMP 44 LC

Rear Panel Features and Cabling

Mounting the DMP 44 LC

The 1U high, quarter rack width, 3.0 inch deep DMP 44 LC Digital Matrix Processor can
be:

Set on a table,

Mounted on a rack shelf,

Mounted under a desk or tabletop, or

Mounted on a projector bracket.

See “

Mounting

” in the “

Reference Information

” section for detailed mounting

instructions.

Rear Panel Features and Cabling

DMP 44 LC

RESET

Tx Rx 1 2 3

RS-232 DIGI IN

3

4

1

2

3

4

1

INPUTS

2

OUTPUTS

POWER

12V

0.3A MAX

7

1

2

3

4

5

6

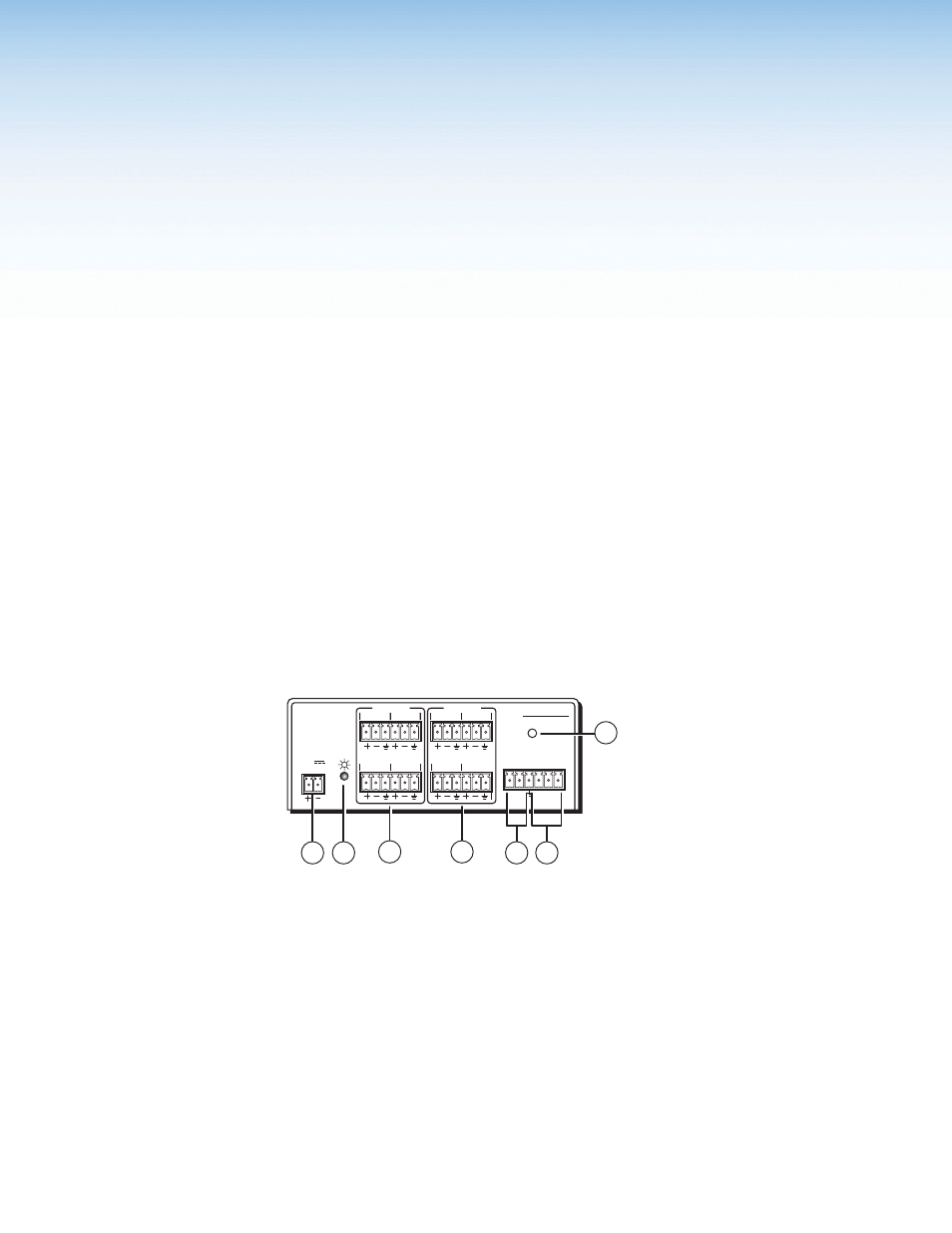

Figure 1.

DMP 44 LC Rear Panel

a

Power connector — Connect the included 12 VDC external power supply into the

2-pole 3.5 mm captive screw connector. Be careful to observe the correct polarity.

DMP 44 LC • Installation

5
