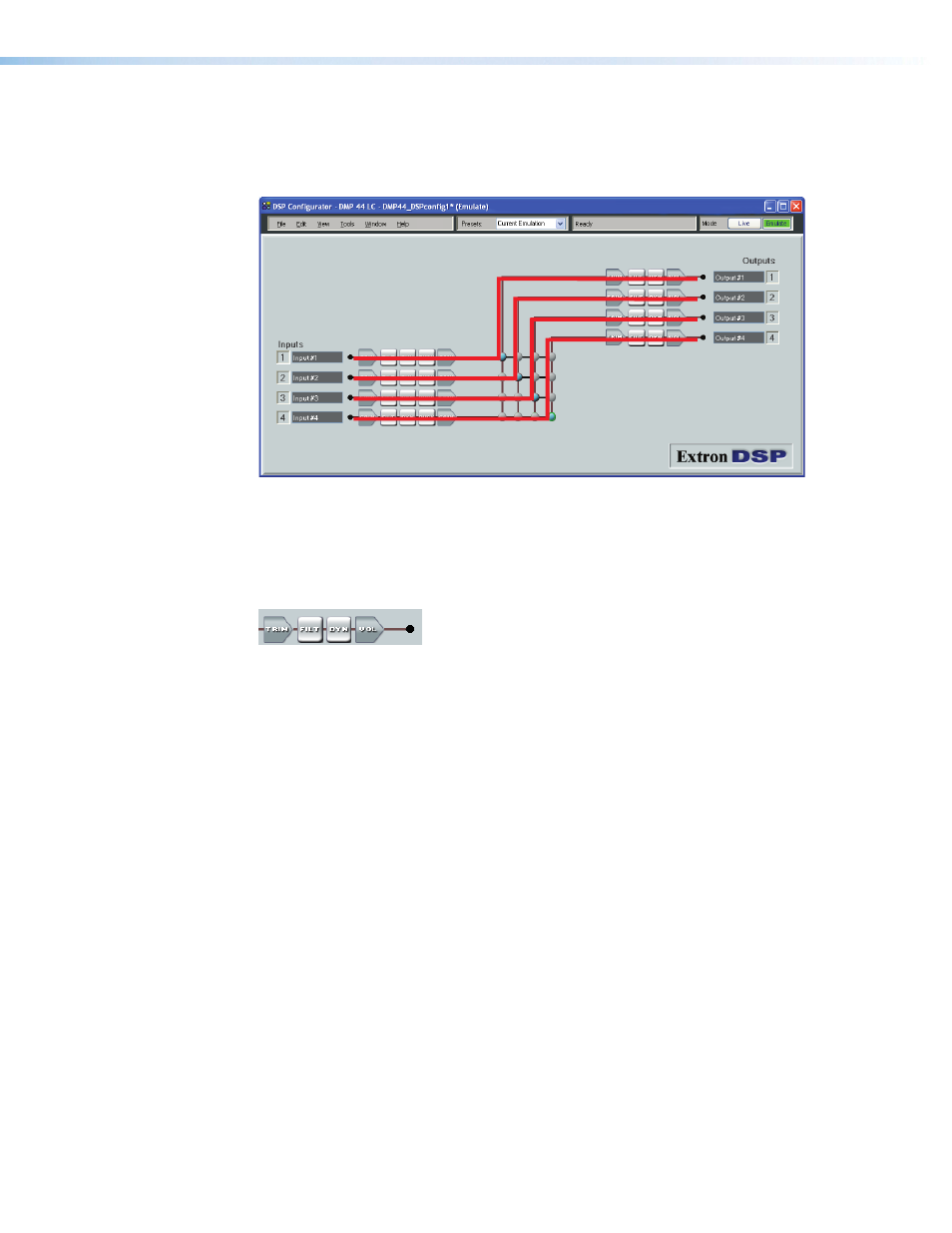

In the example figure below, inputs 1 to 4 have been routed to outputs 1 through 4 by
unmuting the mix-point for mic/line input 1 on each output (1 through 4) bus. Again, the
mix-points are teal to indicate the routing.

Figure 21.

All Inputs to All Outputs

Line Output Channels

There are four mono line output channels. Controls and processing blocks, identical for
each output channel, are described in the following sections.

Filter

Filter function and interface is identical to the line input channel filter block, described
in “

Filter Block

.” However, there are a total of nine filters allowed in the output signal

processor chain.

DMP 44 LC • Operation

37
