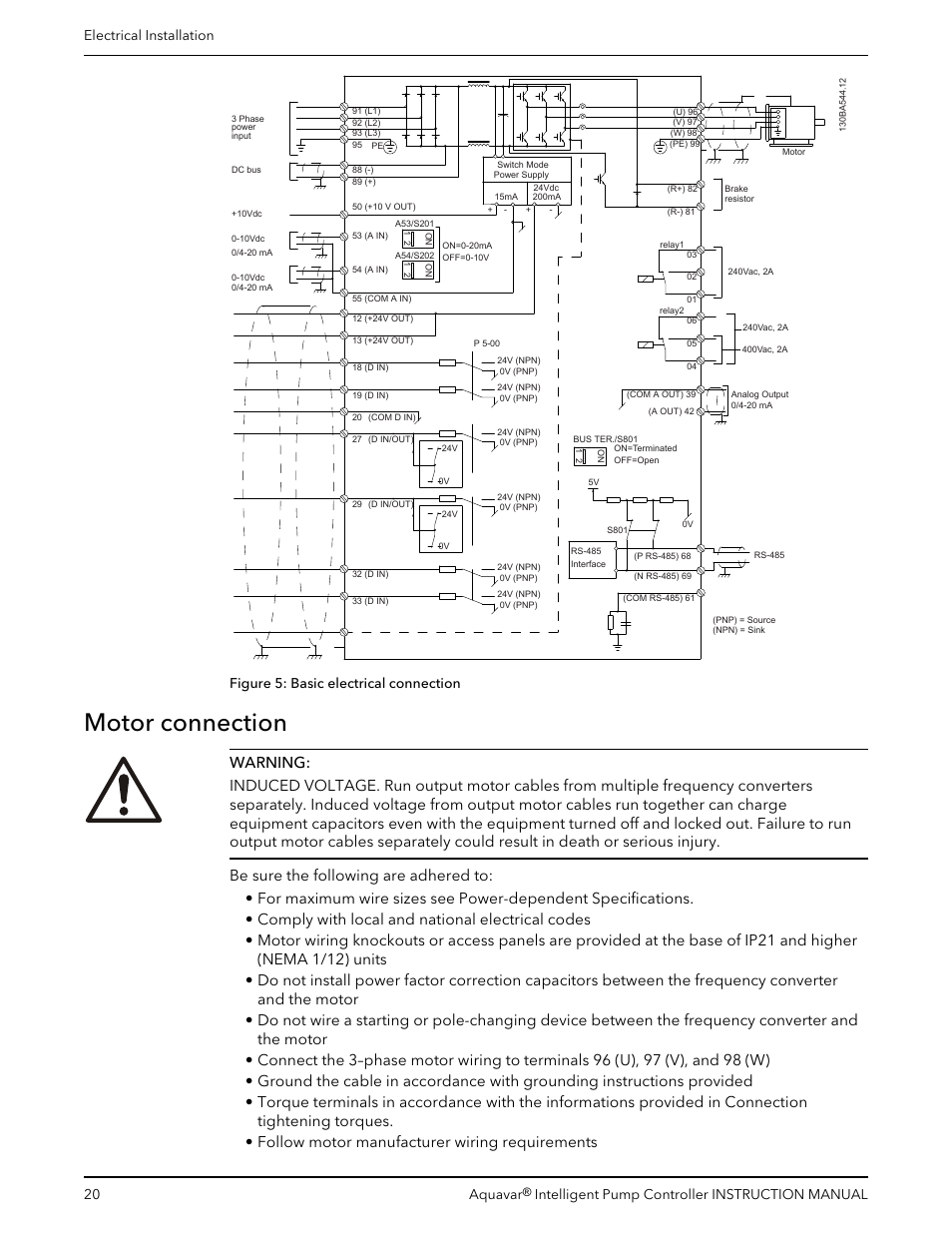

Motor connection, Figure 5: basic electrical connection, Electrical installation 20 aquavar – Xylem IM255 AQUAVAR Intelligent Pump Controller User Manual
Page 22: Intelligent pump controller instruction manual
