Bell & Gossett 193 TECHNOVAR VARIABLE SPEED PUMP CONTROLLER AND INTEGRATED AJUSTABLE FREQUENCY DRIVE User Manual
Page 60
Operating Instruction
60
10.25 Lift-Intensity
LIFT – AMOUNT
0.0 %
Adjustable from 0% to 99,9%; this value states how
much the set value should be continually
increased, till the maximum speed (maximum volume) is reached.
1. Setting the set pressure (see: Inverter main menu)
2. Enter frequency for demand = 0 and set pressure = Actual Value
(see: Jog Mode ) Þ FREQU. LIFTING
3. Set desired lift at maximum speed, in % of set pressure.

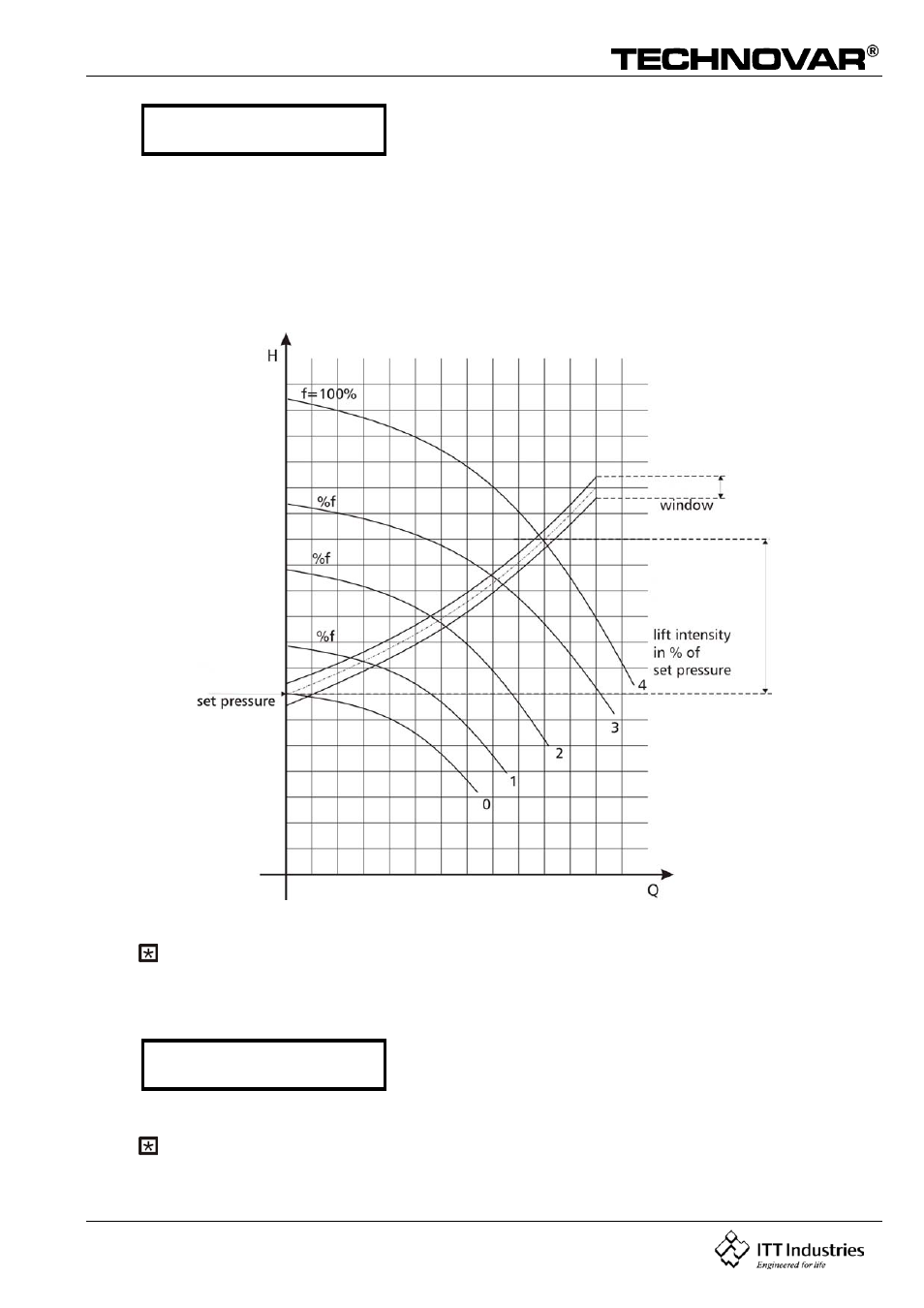

Figure:
Lift-Intensity
Press on the Technovar to change to
10.26 Analog - Output
ANALOG - OUT
Actual value
Analog output 0 - 10V = 0 - 100% (max. 2 mA)
Possible settings:
¨ Actual value (signal at terminal X1/3)
¨ Output frequency (0 - f
max
)
Press on the Technovar to change to
