Bell & Gossett 193 TECHNOVAR VARIABLE SPEED PUMP CONTROLLER AND INTEGRATED AJUSTABLE FREQUENCY DRIVE User Manual
Page 15
Operating Instruction
15

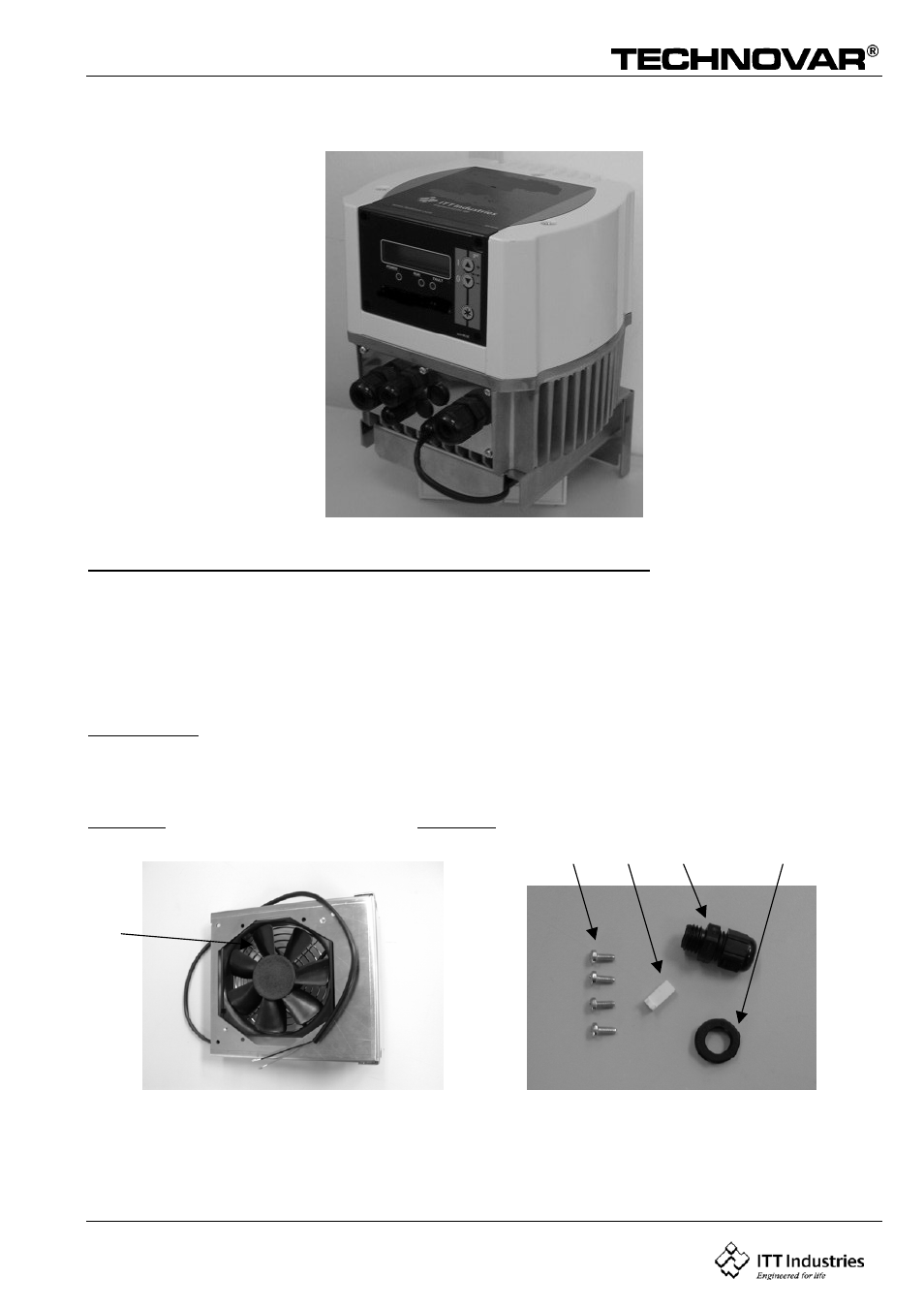

Wall mounting kit HV2.1-3.11
Included components for wallmounted kit HV2.1-3.11
1 mounting plate with fan
Picture 1 A
4 M3x 8mm screws (self threading) for kit HV2.1-3.4
Picture 2 B
or M4x15mm screws (self threading) for kit HV3.5-3.11
Picture 2 B
1 Molex connector Mod. 6471-021
Picture 2 C
1 Cable gland M12x1,5
Picture 2 D
1 counter nut M12x1,5
Picture 2 E
not included: Dowels and mounting screws for mounting the kit on the wall.
Recommended diameter for this screws:
Æ 5-6mm for kit HV2.1-3.4
Æ 6-8mm for kit HV3.5-3.11
Picture 1
Picture 2
A
B
C
D
E
