6.1.2 Mounting
HV2.1-3.11
Fix the display with the 4 Screws.

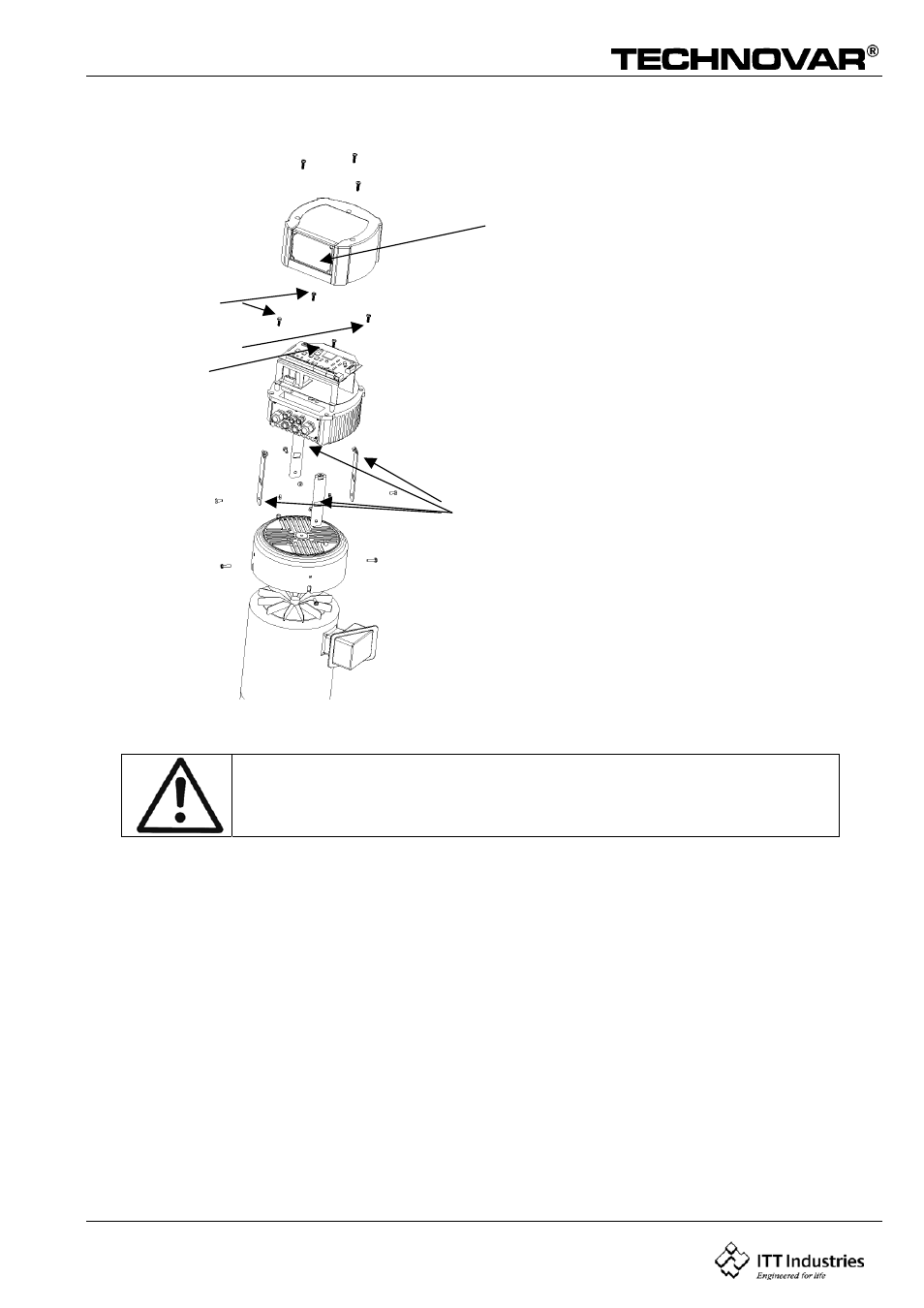

Mounting:
u Remove the 3 screws from the
Technovar cover.
u Place the Technovar fan cover on
the motor .
u Hang the 4 clamps by the
Motor fan cover and mounted
with the 4 screws.
u Mounted the cover with the
3 screws.
Display
changeable
to 180°
Thermistor
4 Mounting
clamps
4 Screws
M5x90
Don’t forget the gaskets for the 3 screws .
Ensure that there is no water on the unit before you open the cover.
