4.0 System Monitoring
If all the previous instructions have been properly completed, it is time to activate the monitor display panel.
The monitor display panel has its own power on/off switch located in the lower left hand corner of the display
panel. Depress the on/off button and the LCD display window will illuminate indicating that power is being
supplied to the monitor. The MDU will either be equipped with a GE Zenith Series or an M4 monitoring
package. Refer to the Bill of Materials to verify your specific model
4.1. GE Zenith Series MDU Monitor
GE’s GE Zenith Series MDU Monitor features a graphic LCD panel accessible from the front of the
MDU. The monitor is part of a microprocessor based Operator Interface Module that monitors
analog power points within the MDU unit.

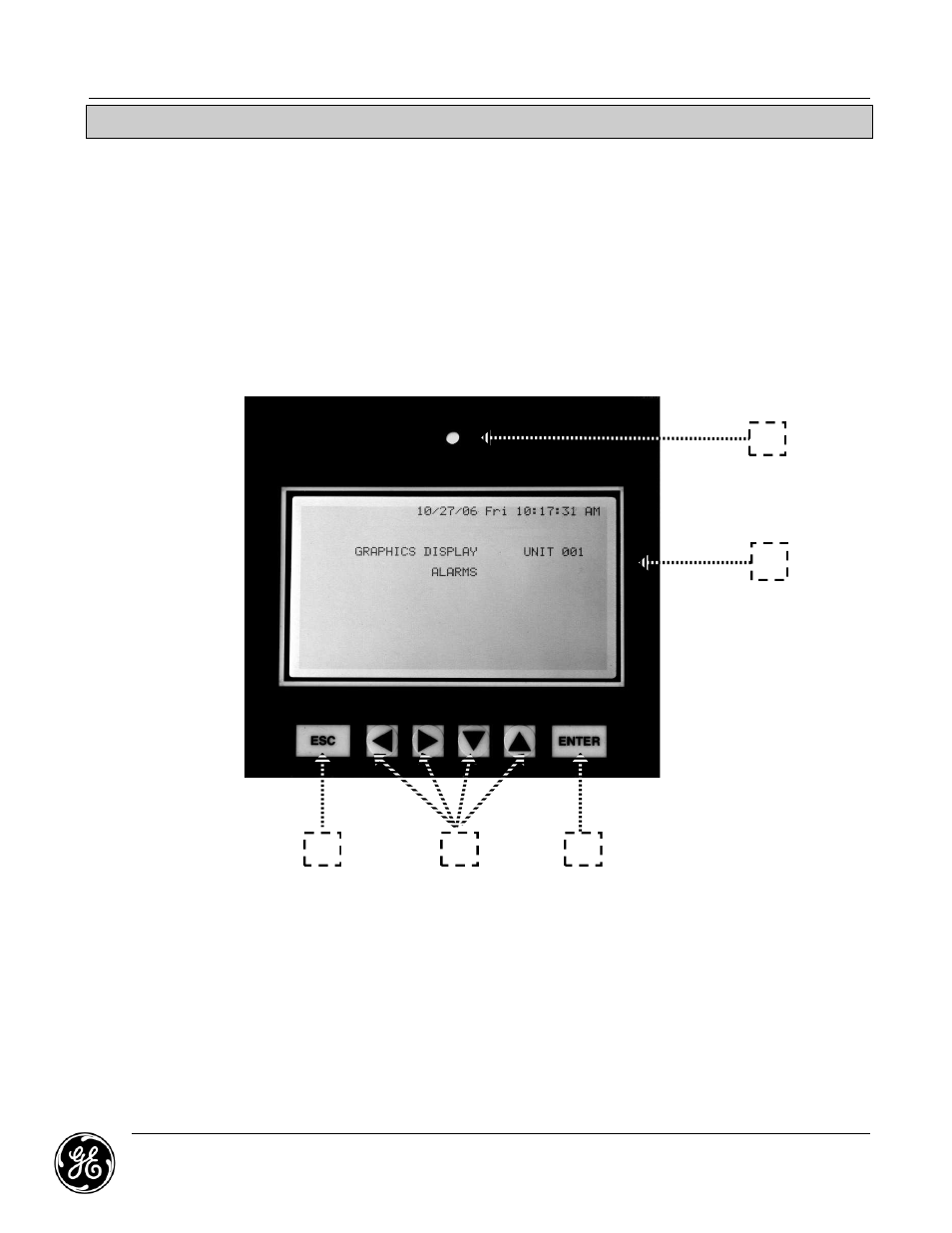

4.1.1. LCD Monitor Layout
1. LED Status Indicator
2. Graphics Display
3. Esc/Setup
4. Navigation Controls
5. Enter/Toggle Screen
3 5 4
2
1
