POWER MONITORING INSTALLATION GUIDE
ZL0115-0A PAGE 1 ©2013 For technical support please contact 01132
DET-785 our GE tech support team at 1-800-GE-1-STOP (1-800-431-7867)
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
• Follow safe electrical work practices. See NFPA 70E in the USA, or applicable local codes.
• This equipment must only be installed and serviced by qualified electrical personnel.
• Read, understand and follow the instructions before installing this product.
• Turn off all power supplying equipment before working on or inside the equipment.
• Any covers that may be displaced during the installation must be reinstalled
before powering the unit.
• Use a properly rated voltage sensing device to confirm power is off.
DO NOT DEPEND ON THIS PRODUCT FOR VOLTAGE INDICATION
Failure to follow these instructions will result in death or serious injury.
A qualified person is one who has skills and knowledge related to the construction and
operation of this electrical equipment and the installation, and has received safety
training to recognize and avoid the hazards involved. NEC2009 Article 100
No responsibility is assumed by Veris Industries for any consequences arising out of the
use of this material.
DANGER
NOTICE
• This product is not intended for life or safety applications.
• Do not install this product in hazardous or classified locations.
• The installer is responsible for conformance to all applicable codes.
• Mount this product inside a suitable fire and electrical enclosure.
FCC PART 15 INFORMATION
NOTE: This equipment has been tested by the manufacturer and found to
comply with the limits for a class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a
residential environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
Modifications to this product without the express authorization of the
manufacturer nullify this statement.

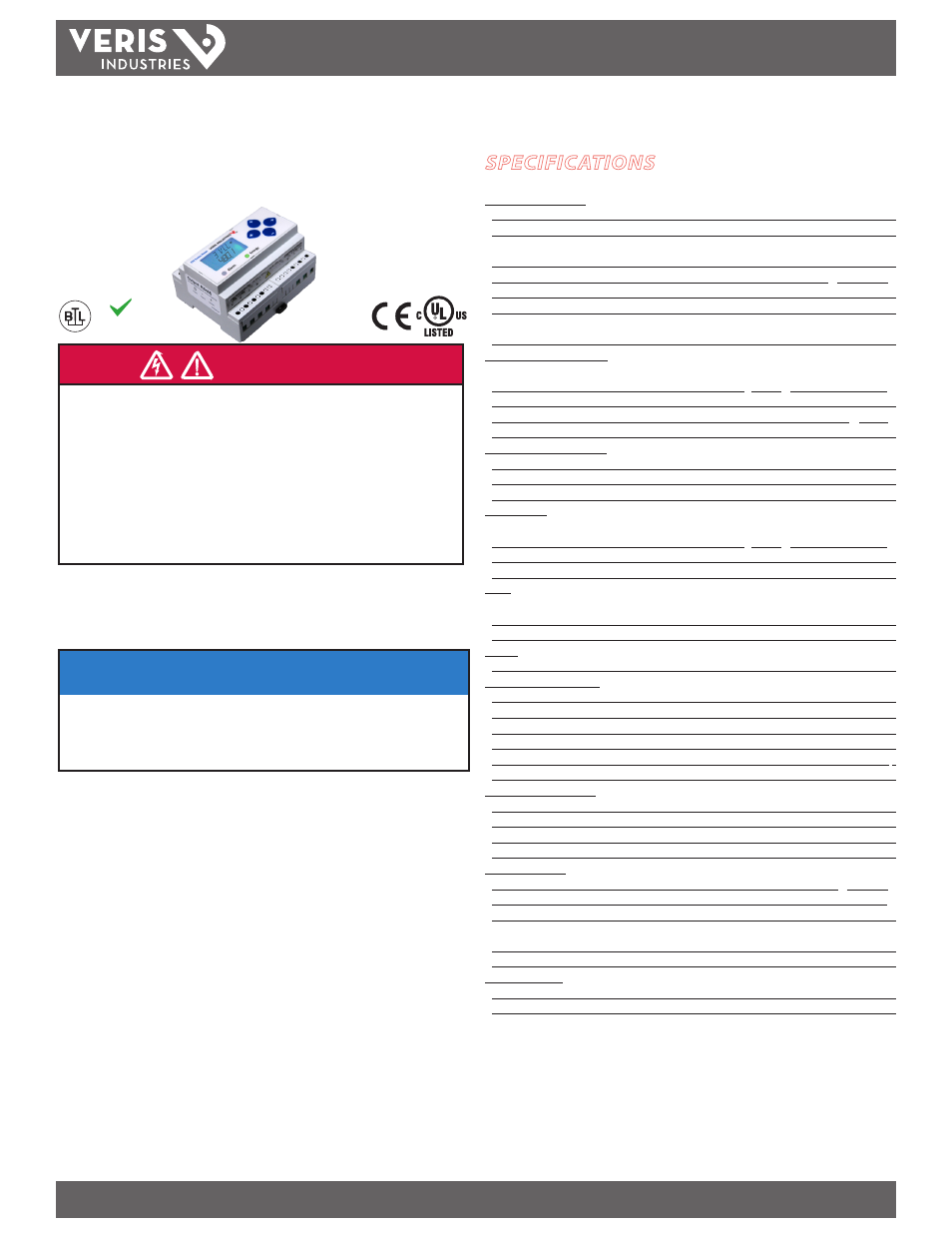

AMP1H5
Compact Power and Energy Meter
With BACnet MS/TP Support
SPECIFICATIONS
Measurement Accuracy:
Real Power and Energy IEC 62053-22 Class 0.5S, ANSI C12.20 0.5%
Reactive Power and Energy IEC 62053-23 Class 2, 2%
Current 0.4% (+0.015% per °C deviation from 25°C) from 5% to 100% of range;
0.8% (+0.015% per °C deviation from 25°C) from 1% to 5% of range
Voltage 0.4% (+0.015% per °C deviation from 25°C) from 90 V
L-N
to 600 VAC
L-L
Sample Rate 2520 samples per second
Data Update Rate 1 sec
Type of Measurement True RMS up to the 21st harmonic 60 Hz
One to three phase AC system
Input Voltage Characteristics:
Measured AC Voltage Minimum 90 V
L-N
(156 V
L-L
) for stated accuracy;
UL Maximums: 600 V
L-L
(347 V
L-N
); CE Maximum: 300 V
L-N
Metering Over-Range +20%
Impedance 2.5 MΩ
L-N
/5 MΩ
L-L
Frequency Range 45 to 65 Hz
Input Current Characteristics:
CT Scaling Primary: Adjustable from 5 A to 32,000 A
Measurement Input Range 0 to 0.333 VAC or 0 to 1.0 VAC (+20% over-range)
Impedance 10.6 kΩ (1/3 V mode) or 32.1 kΩ (1 V mode)
Control Power:
AC 5 VA max.; 90 V min.
UL Maximums: 600 V
L-L
(347 V
L-N
); CE Maximum: 300 V
L-N
DC* 3 W max.; UL and CE: 125 to 300 VDC
Ride Through Time 100 msec at 120 VAC
Input:
Pulse Solid-state or mechanical contacts (current less than 1 mA);
2 pulse inputs)
Minimum Pulse Width 20 msec
Output:
RS-485 Port 2-wire, 9600 to 115.2 kbaud, BACnet MS/TP
Mechanical Characteristics:
Weight 0.62 lb (0.28 kg)
IP Degree of Protection (IEC 60529) IP40 front display; IP20 Meter
Display Characteristics Back-lit blue LCD
Terminal Block Screw Torque 0.37 ft-lb (0.5 N·m) nominal/0.44 ft-lb (0.6 N·m) max.
Terminal Block Wire Size 24 to 14 AWG (0.2-2.1 mm 2 )
Rail T35 (35 mm) DIN Rail per EN50022
Environmental Conditions:
Operating Temperature -30° to 70°C (-22° to 158°F)
Storage Temperature -40° to 85°C (-40° to 185°F)
Humidity Range <95% RH (non-condensing)
Altitude of Operation 3 km max.
Metering Category:
North America CAT III; for distribution systems up to 347 V
L-N
/600 VAC
L-L
CE CAT III; for distribution systems up to 300 V
L-N
Dielectric Withstand Per UL 508, EN61010
Conducted and Radiated Emissions FCC part 15 Class B, EN55011/EN61000 Class B
(residential and light industrial)
Conducted and Radiated Immunity EN61000 Class A (heavy industrial)
Agency Approvals:
US and Canada (cULus) UL508 (open type device)/CSA 22.2 No. 14-05
Europe (CE) EN61010-1:2001
* External DC current limiting is required, see fuse recommendations.
RoHS
Compliant
For use in a Pollution Degree 2 or better environment only. A Pollution Degree 2 environment must
control conductive pollution and the possibility of condensation or high humidity. Consider the
enclosure, the correct use of ventilation, thermal properties of the equipment, and the relationship
with the environment. Installation category: CAT II or CAT III
Provide a disconnect device to disconnect the meter from the supply source. Place this device
in close proximity to the equipment and within easy reach of the operator, and mark it as the
disconnecting device. The disconnecting device shall meet the relevant requirements of IEC 60947-
1 and IEC 60947-3 and shall be suitable for the application. In the US and Canada, disconnecting
fuse holders can be used. Provide overcurrent protection and disconecting device for supply
conductors with approved current limiting devices suitable for protecting the wiring. If the
equipment is used in a manner not specified by the manufacturer, the protection provided by the
device may be impaired.
®
