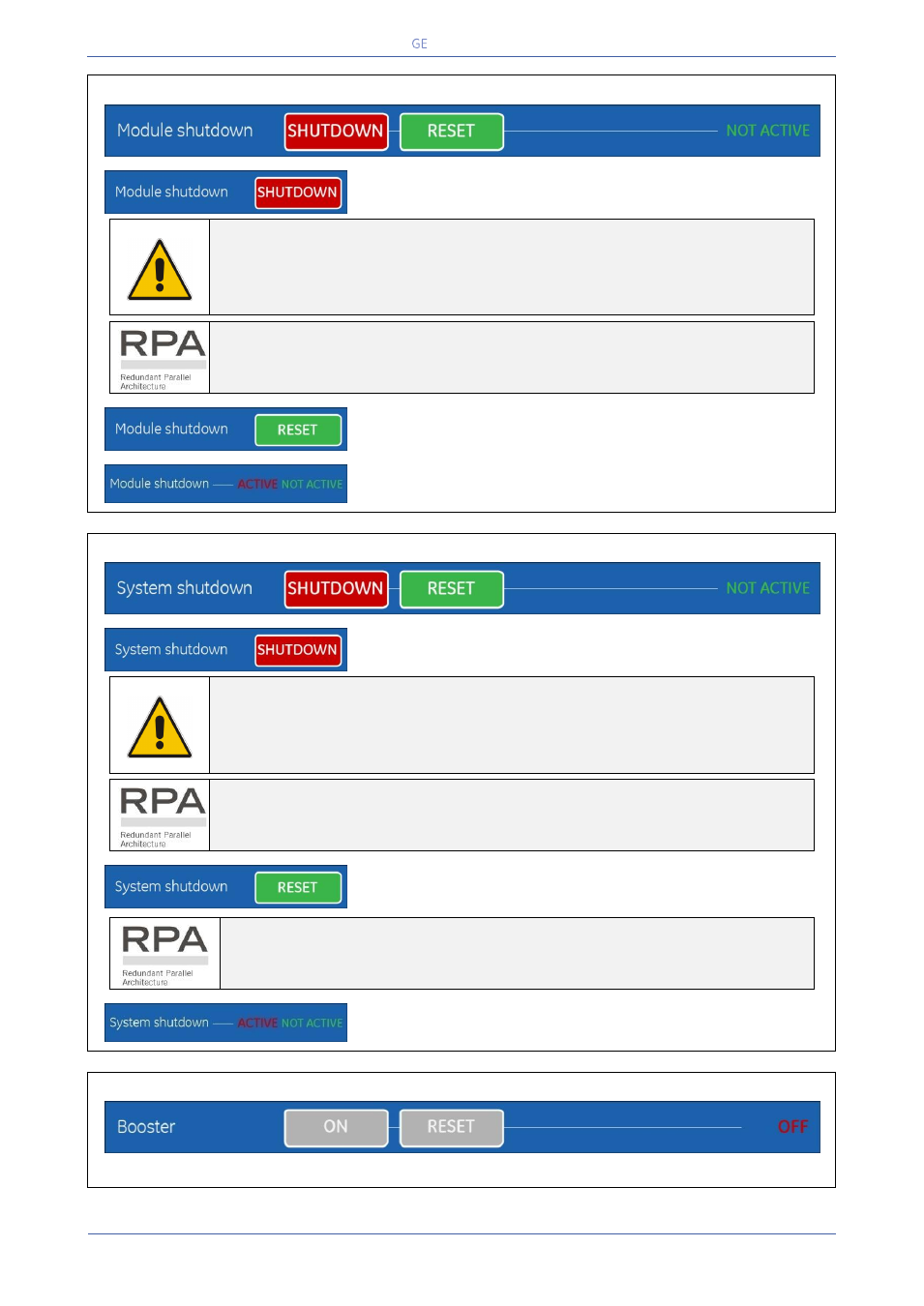

Module shutdown
Module shutdown
Load Off command for a single UPS.
NOTE !
This command will immediately disconnect the Load.
“Module shutdown” cannot disconnect the UPS from the Load with Q2
closed.
For the RPA Parallel System
In an RPA Parallel System, the “Module shutdown” command disconnects the
Load to the selected unit only (switch Q1 closed).
Module shutdown RESET
Module shutdown restore command for an individual UPS.
Led Module shutdown status
Shows the Module shutdown status: ACTIVE / NOT ACTIVE
System shutdown
System shutdown
Load Off command for an RPA Parallel System.
NOTE !
This command will immediately disconnect the Load.
“System shutdown” cannot disconnect the RPA Parallel System from the
Load with Q2 closed.
For the RPA Parallel System
If “System shutdown” is pressed on one unit connected to the parallel bus (switch
Q1 closed), all the units are separated from the Load.
System shutdown RESET
System shutdown restore command for a RPA Parallel System.
For the RPA Parallel System
The “System shutdown reset” must be done only on one unit connected to the
parallel bus (switch Q1 closed).
Led System shutdown status
Shows the System shutdown status: ACTIVE / NOT ACTIVE
Booster
Only for Service Center.
