6 LCD SCREEN
Composed of an LCD color “Touch Screen” which provides the following information to users:

Synoptic diagram indicating UPS status.
 UPS operating, AC and DC metering information.
 History of events (alarms and messages).

Functionality can be programmed to meet customer needs by changing parameters.

Operation commands of the UPS.
6.1 HOME SCREEN

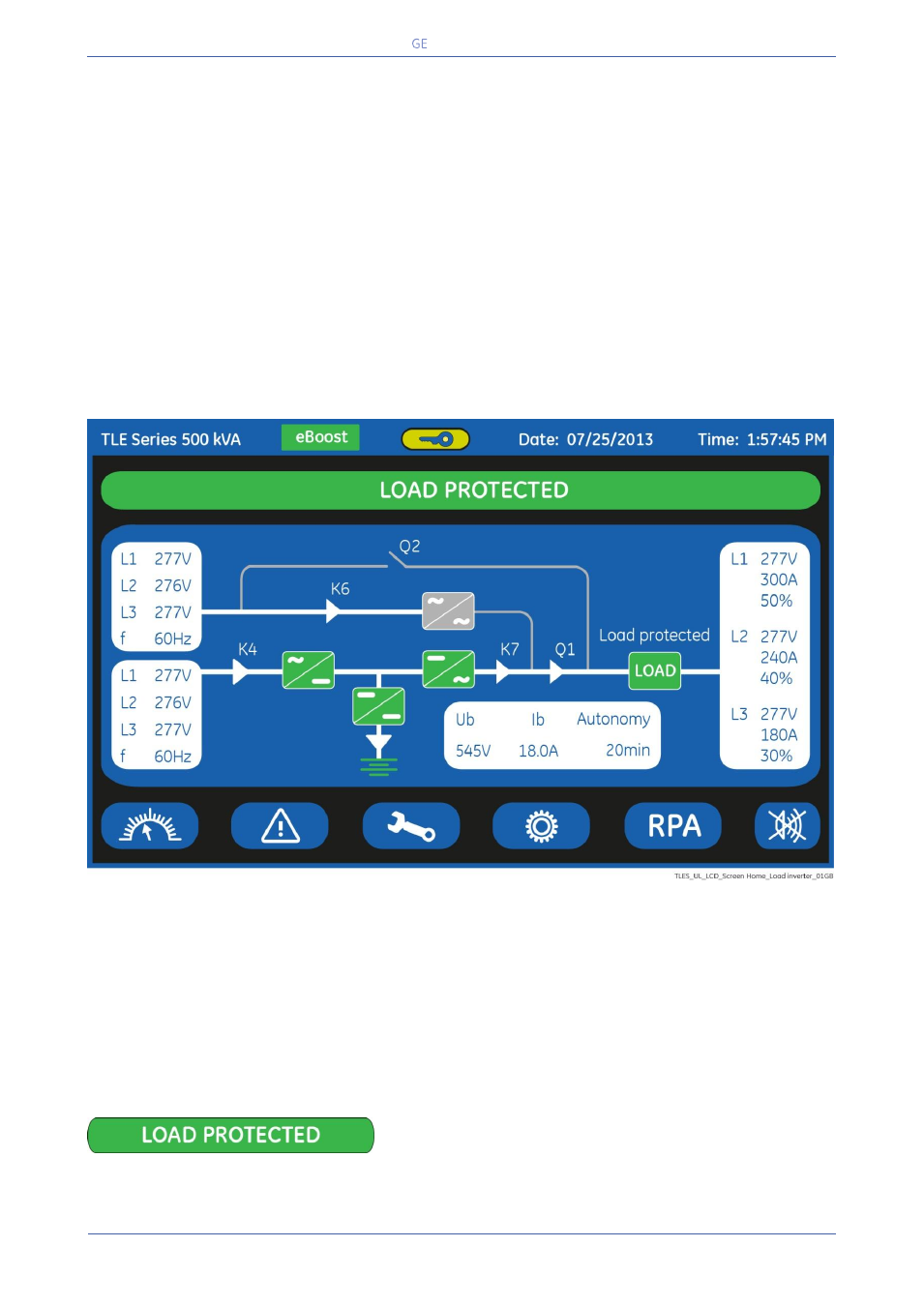

Fig. 6.1-1 LCD screen
The LCD screen, after 5 minutes of inactivity, shuts down the backlight.
To reactivate it, it is sufficient to press any keys mentioned to Section 6.1.1.
If the keypad remains inactive for 5 minutes or longer, during the viewing of a screen such as
MEASURES, EVENTS, SETUP or COMMANDS, the LCD screen returns automatically to the main screen.
Pressing the key “UPS status” for a few seconds
automatically sets the “ENGLISH” language on the LCD
screen.
