GE Industrial Solutions TLE Series 225-500 User Manual User Manual
Page 45
Critical Power
Modifications reserved
Page 45/90
GE_UPS_USM_TLE_SUL_M22_M50_1US_V010.docx
User Manual TLE Series 225 - 500 UL S1

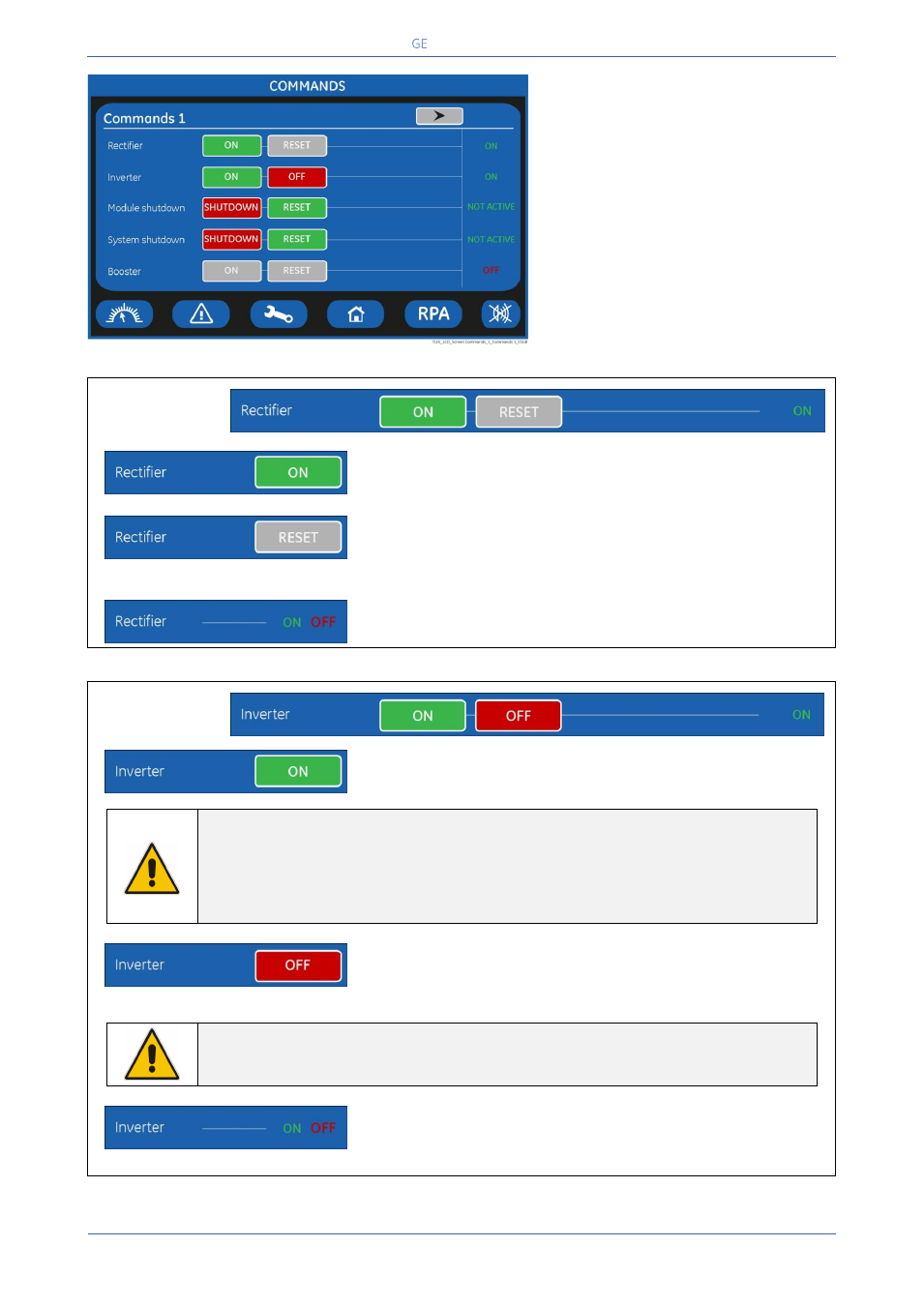

COMMANDS 1 SCREEN
Allows the user to execute UPS
operation commands.
Rectifier
Rectifier ON
Rectifier switching ON command.
Rectifier RESET
Rectifier restore command.
Reserved for the Service Center.
Led Rectifier status
Indicates the Rectifier’s status: ON = lit
OFF = turned Off
Inverter
Inverter ON
Inverter switching ON command.
NOTE !
When eBoost™ Operation Mode is enabled, control of Inverter status and
selection of the feed path is done autonomously by the UPS control logic.
Therefore, Inverter ON / Inverter OFF commands are disabled when eBoost™
Operation Mode is enabled.
Inverter OFF
Inverter switching OFF command.
This command is also used as EPO (Emergency Power Off) reset after the contact closing.
NOTE !
Inverter OFF command is disabled when eBoost™ Operation Mode is enabled.
Led inverter status
It indicates the Inverter status:
ON / OFF / Pre-charge / Pre-charge completed / Soft-start
