User Manual TLE Series 225 - 500 UL S1

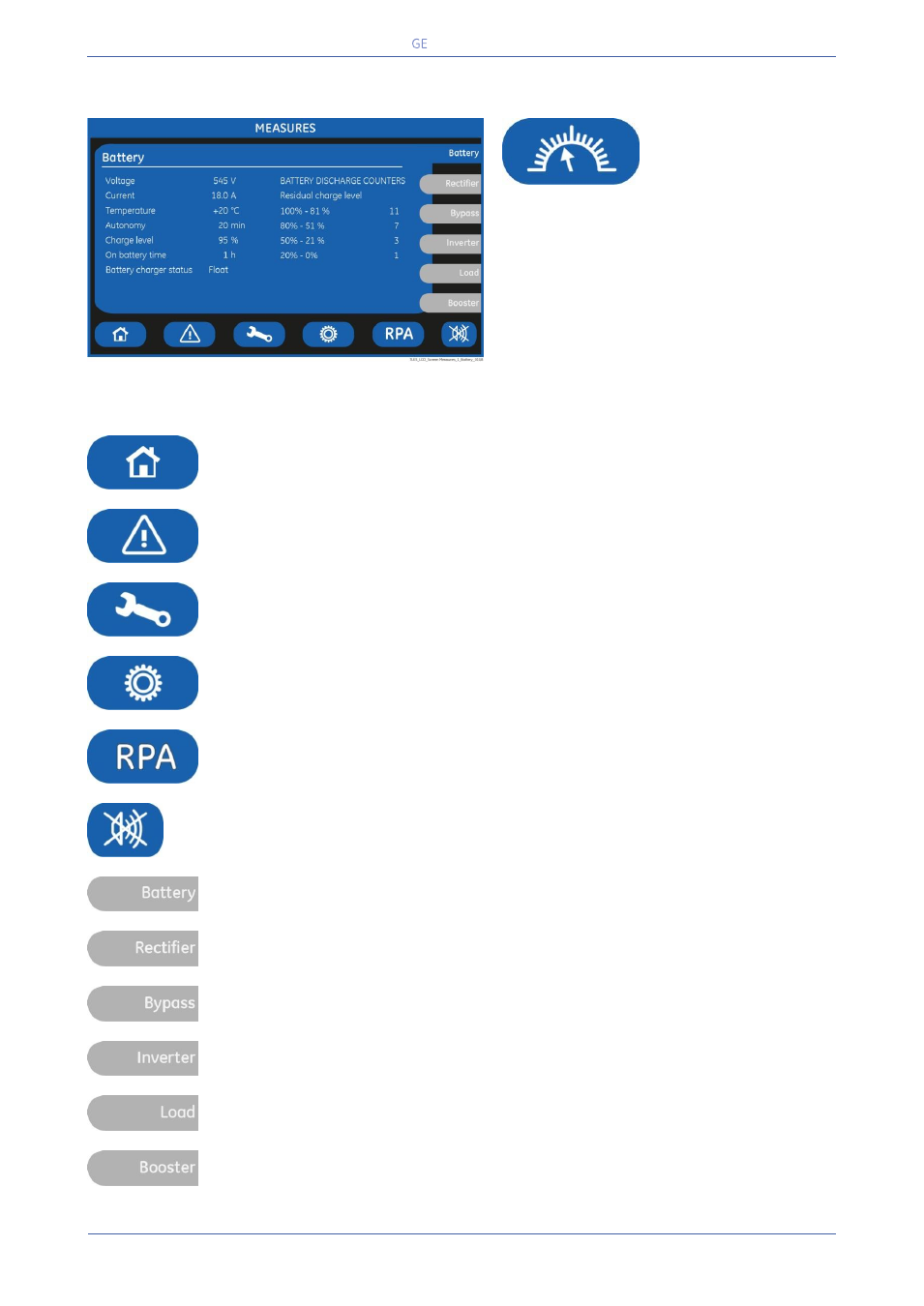

6.2 MEASURES
MEASURES
The MEASURES mode is entered any time the
“MEASURES” key is pressed.
The LCD screen will indicate a series of
screenshots showing the measures of all
electric parameters like AC, DC and various
statistics.
In this mode the keys perform the following functions:
Return to HOME screen.
Shows the main screen EVENTS.
See Section 6.3.
Shows the main screen SETUP.
See Section 6.4.
Shows the main screen COMMANDS.
See Section 6.5.
Shows the operating status of the RPA PARALLEL SYSTEM.
See Section 6.6.
Key to reset general alarm and buzzer.
Shows the screen Battery.
Shows the screen Rectifier.
Shows the screen Bypass.
Shows the screen Inverter.
Shows the screen Load.
Shows the screen Booster.
