35

4.3 Digital Output Port Setting

Rhio10 has 10 digital output ports. You can set each of these digital output ports with Rhio

Manager or by issuing the commands specified in "Ch. 5 I/O Port Related Protocols". Place your

mouse cursor over the Digital Output Port LED on the I/O Port Control screen and right-click it to

display the Setting Output Port window.

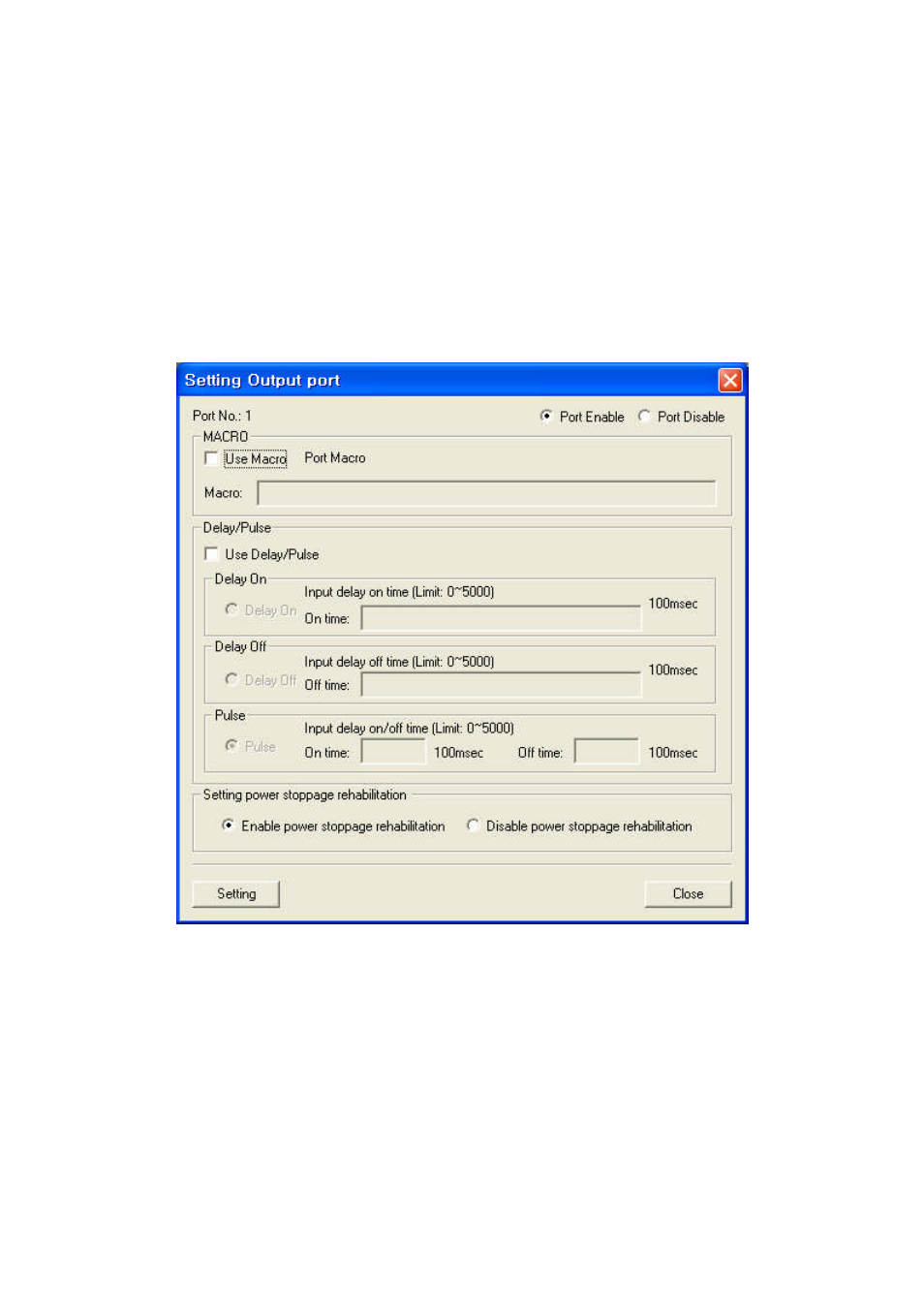

Figure 4-4 Setting digital output port window

4.3.1 Setting Enable/Disable

Set a specified port to Enable/Disable by selecting the [Port Enable] and [Port Disable] check

boxes. If it is set to Disable, the digital output port becomes fixed to OFF.
