15

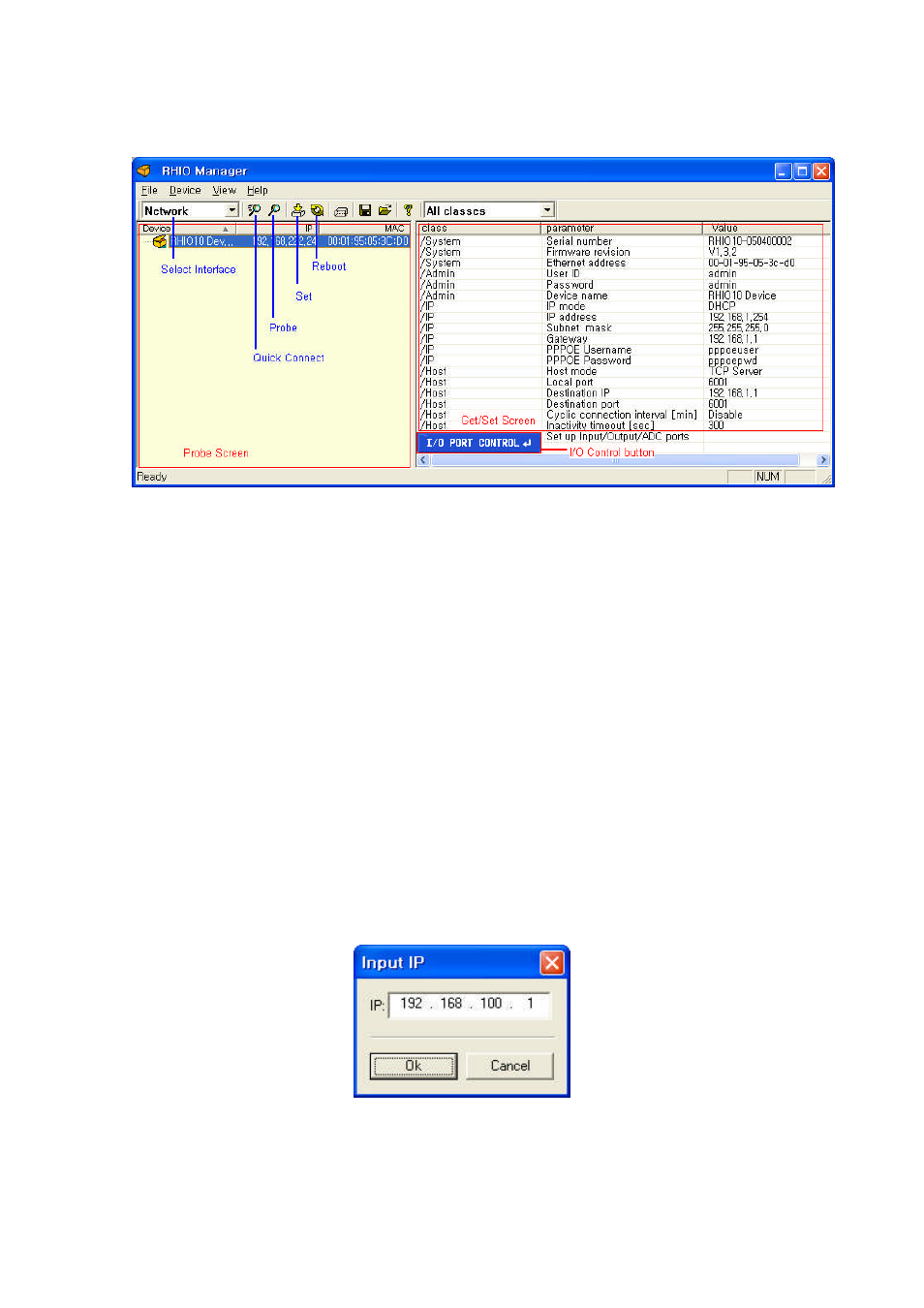

Figure 2.7 Rhio Manager screen layout

2.3.2 Basic configuration using Rhio Manager

Select Interface

It specifies the communication method between Rhio10 and Rhi0 Manager. Be sure to set it up

as “Network” mode.

Quick Connect

Users may connect to the Rhio10 from using Rhio Manager by specifying the destination IP

address. Once users click [Quick Connect] button, then Rhio10 detected is shown on the Probe

screen as a tree structure form. If users click the one, then they will be asked to enter the ID

and Password. The Rhio10 parameters are displayed on the Get/Set screen with correct ID and

password (Factory default ID:PASSWORD is admin : admin.)

Figure 2.8 Quick connect dialog box
