2.2.3 Connecting to the Network
Connect the one end of the Ethernet cable to the Rhio10 10Base-T port and the other to the
Ethernet network. If the cable is properly hooked up, the Rhio10 will have a valid connection to
the Ethernet network by indicating:
- [Link] lamp of the Rhio10 maintains solid green
- [Act] lamp continuously blinks to indicate the incoming/outgoing Ethernet packets
If any of the above does not happen, the Rhio10 is not properly connected to the Ethernet
network.

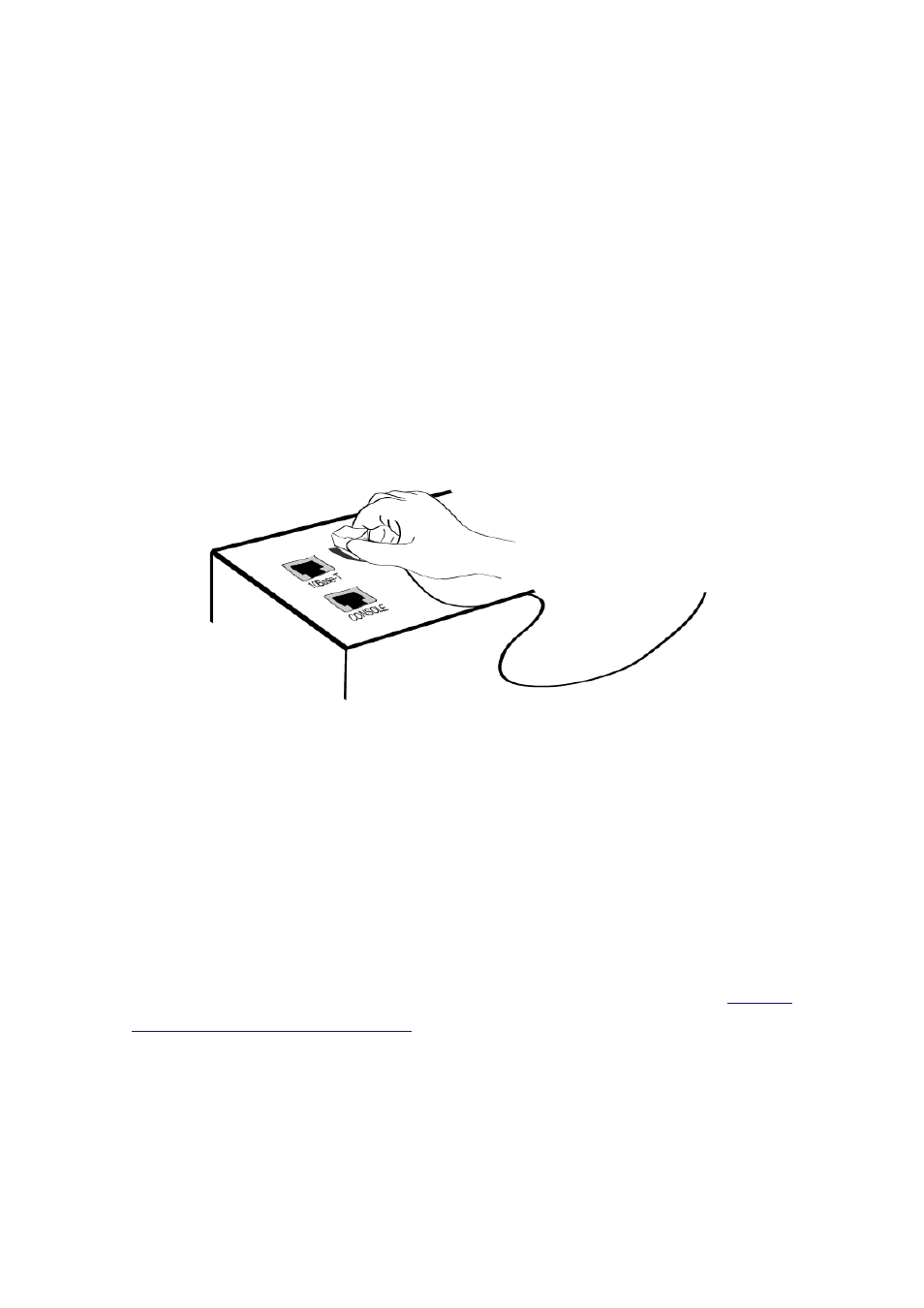

Figure 2-6. Connecting a network cable to the Rhio10
2.3 Rhio Manager Installation
Rhio Manager is a Windows Utility program for system configuration and I/O test of the Rhio10.
2.3.1 Rhio Manager Installation
Users may install the Rhio Manager software by downloading at Sena web site http://
www.sena.com/support/downloads . If it is installed normally, then it will be placed on to
the menu of [Start]->[Program]->[SENA]->[RHIO Manager]. The screen layout is
shown in Figure 2-7.
