LED Indicators
MESR321s have a Power LED, a Ready LED and Data LEDs.

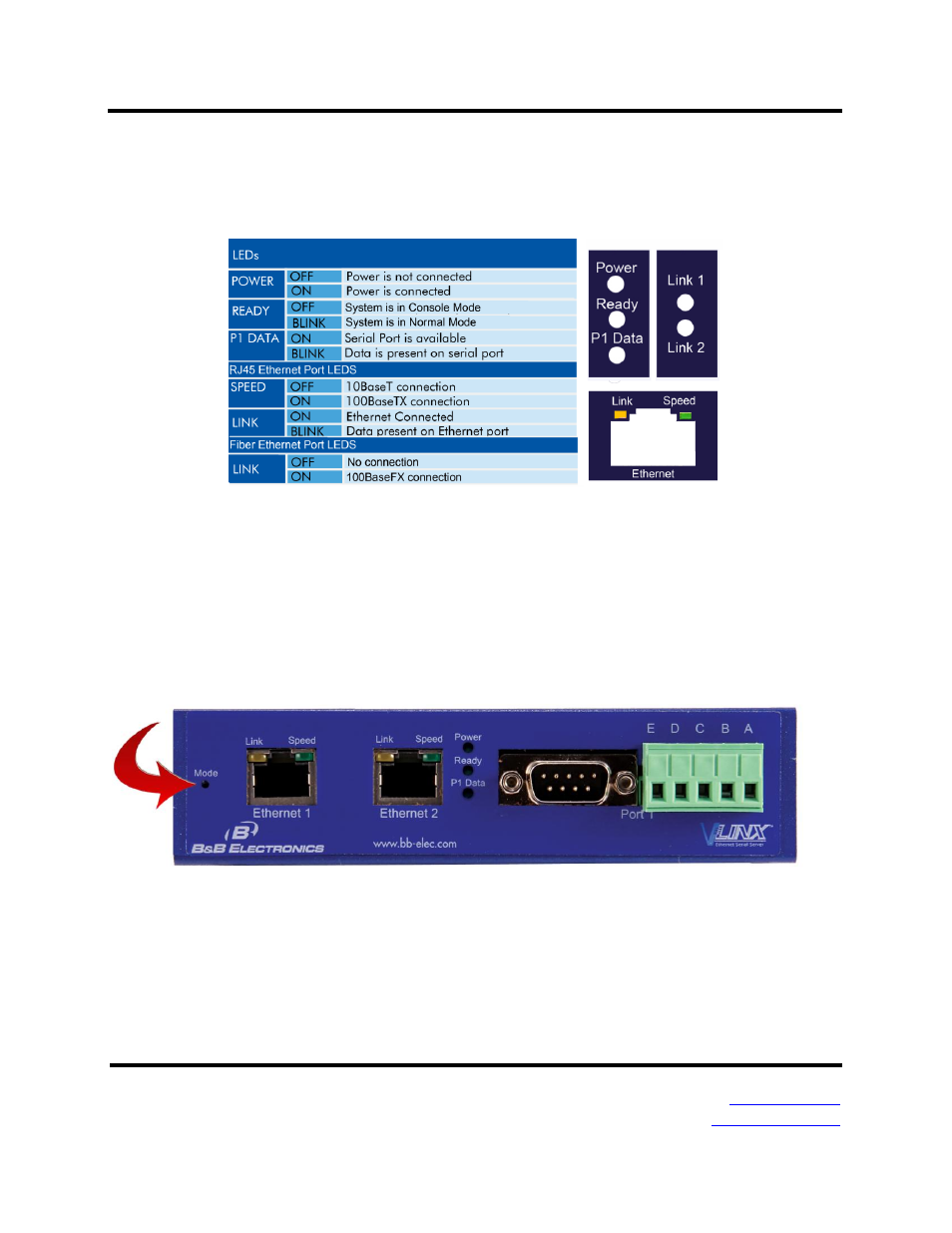

Figure 1. LEDs
Mode Switch
A recessed momentary reset switch is located on the front left side of the
enclosure. To activate the switch, insert a small plastic tool through the hole in
the enclosure and press gently.
Figure 2. Mode Switch
The Mode switch can be used to:

Initiate a Hardware Reset

Enter Console Mode

Reload factory defaults
