Connecting mesr321s to a network – B&B Electronics MESR321_SL_ML - Manual User Manual
Page 15
Setup and Connections
Vlinx MESR321 Modbus Gateway
13
MESR321-xx_R001_2113m
www.bb-elec.com
www.bb-europe.com
If you select RS-422 mode, RS-485 2-wire mode, or RS-485 4-wire mode when
you configure the Modbus gateway, you must connect the Modbus network
appropriately, via the 5-position terminal block.
Note: Refer to Appendix D for connector pin out information.

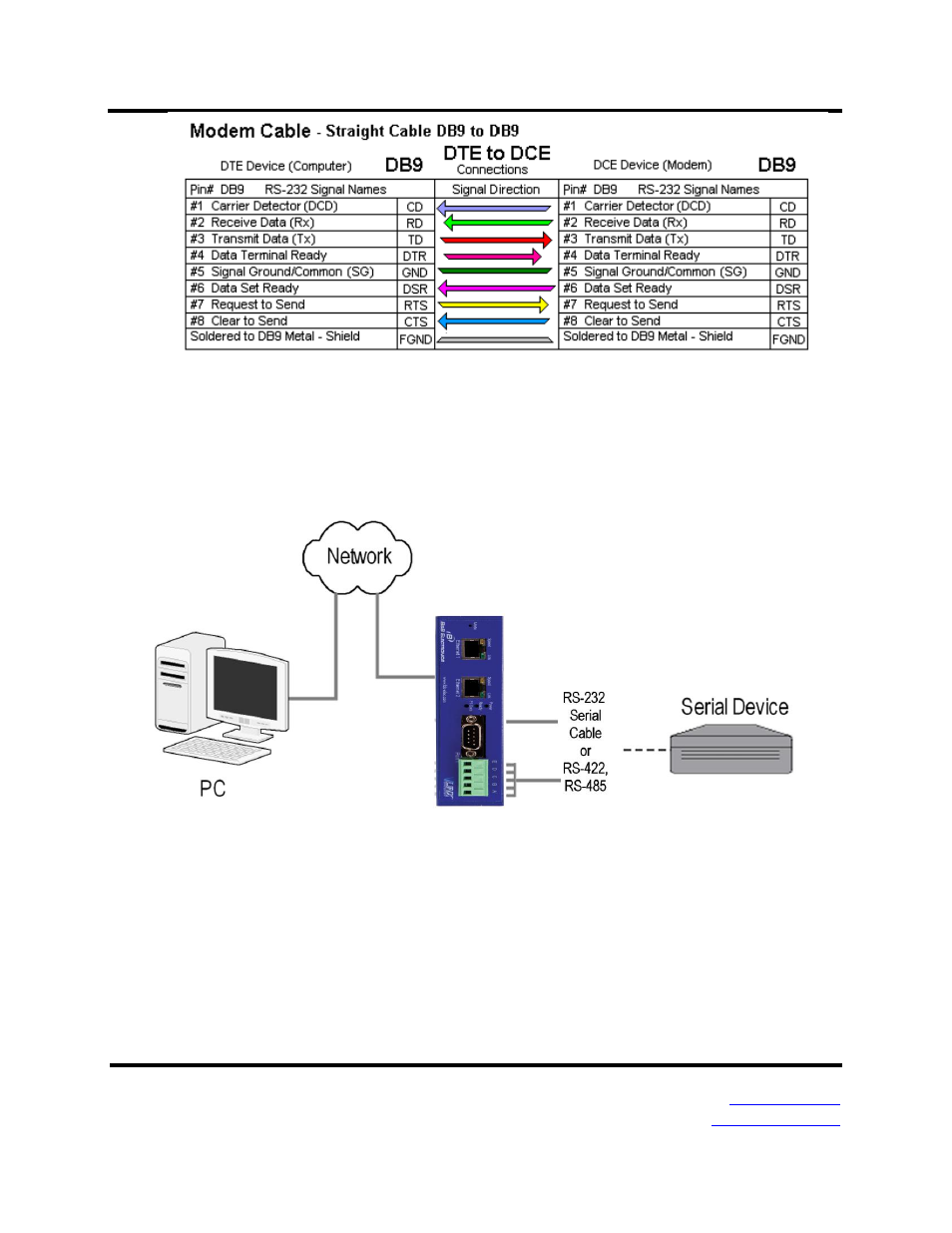

Figure 9. MESR321 Connections
Connecting MESR321s to a Network
