Setup Examples Vlinx MESR321 Modbus Gateway
48
MESR321-xx_R001_2113m
www.bb-elec.com
www.bb-europe.com
6 6 . . S S e e t t u u p p E E x x a a m m p p l l e e s s
Modbus gateways can be used to integrate Modbus networks in a wide variety of
settings. But as each setting has its own requirements, users may not
unders
tand how a gateway helps, or if it’s appropriate for their specific needs.
The following scenarios are examples only, and many others are possible. Refer
to the Modbus Serial Server page on the B&B Electronics web site for detailed
information regarding other applications.
Log into your gateway.
1. Access the serial port one setup screen by clicking the link on the left side of
the screen.

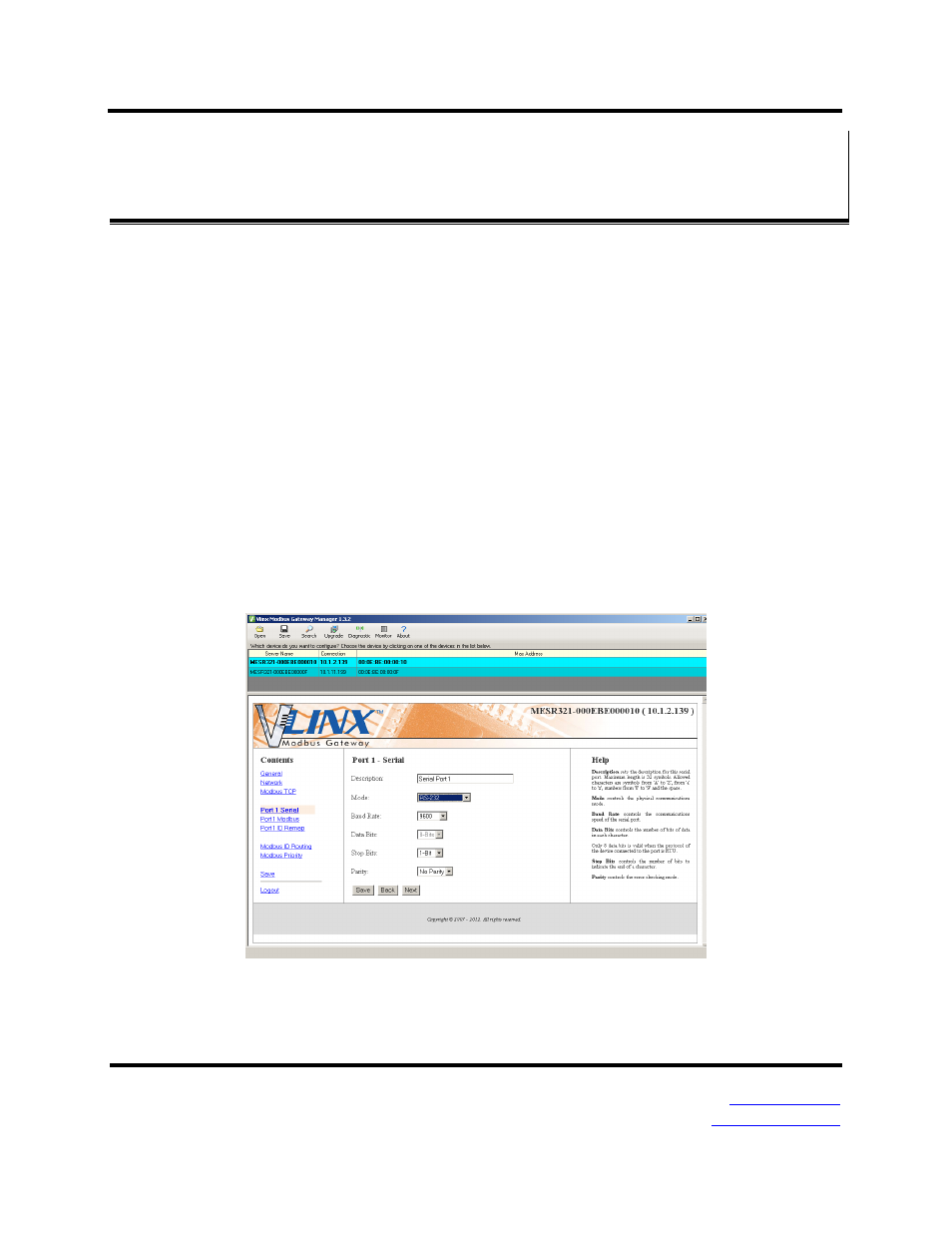

Figure 45. Serial Port 1 Setup
2. Configure Serial Port 1. In this case it is RS-232, 19.2 kbps, 8 data bits, 1
stop bit, and no parity. Save the settings
