Diagnostics

VlinxMESR321 Modbus Gateway

45

MESR321-xx_R001_2113m

www.bb-elec.com

www.bb-europe.com


5

5

.

.

D

D

i

i

a

a

g

g

n

n

o

o

s

s

t

t

i

i

c

c

s

s

Clicking the Diagnostics icon opens the

Diagnostics

dialog box and enables

you to check the operation of connected Modbus gateways on the local
computer.

The Computer Information box displays information about the type of network
connections, the IP addresses, Subnet Masks and Default Gateways in use.

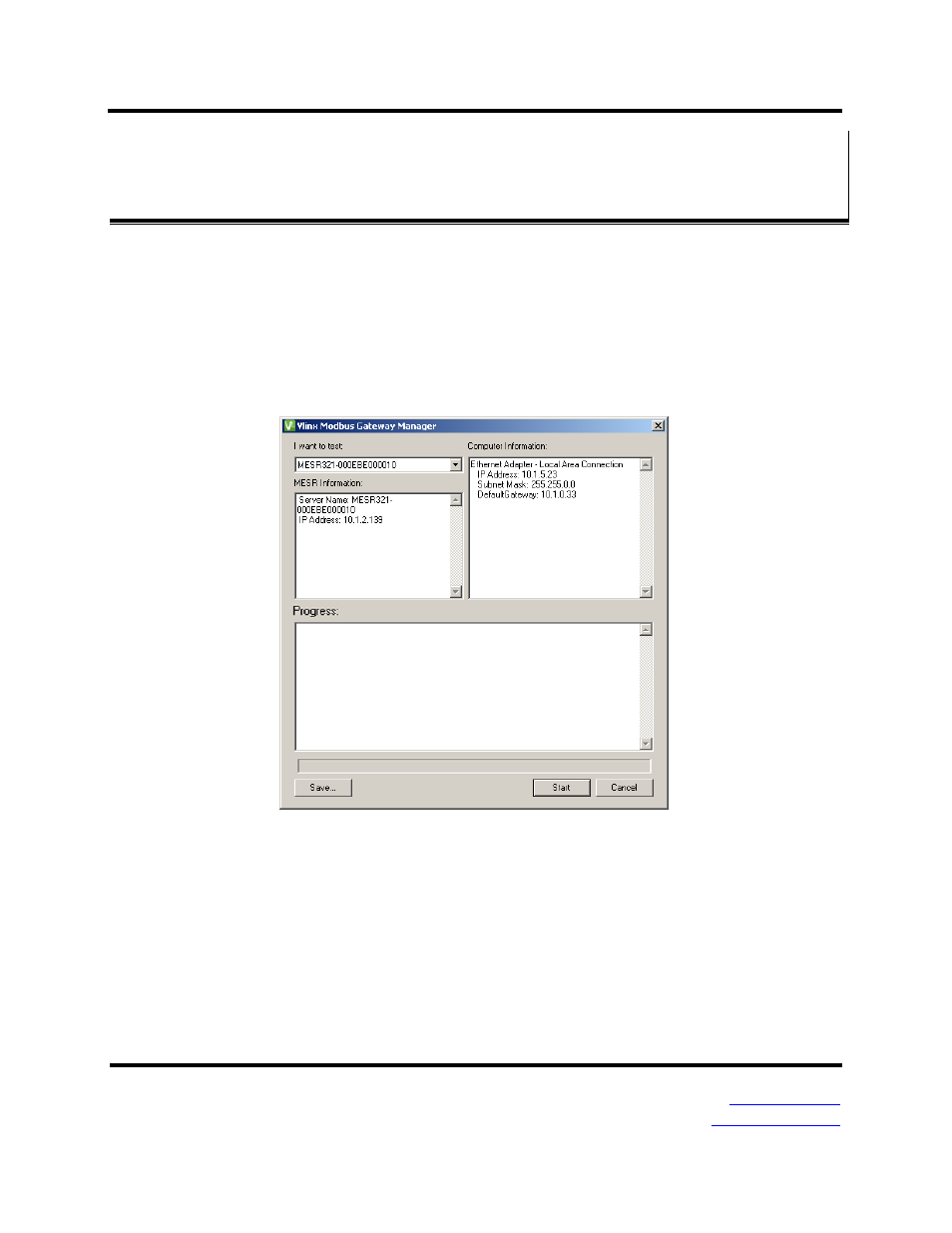

Figure 43. Diagnostics Dialog Box

Testing a Modbus Gateway Connection

To run diagnostics on a Modbus gateway:

1. Click the Diagnostics icon.

The

Diagnostics

dialog box appears.
