Setup and Connections Vlinx MESR321 Modbus Gateway
42
MESR321-xx_R001_2113m
www.bb-elec.com
www.bb-europe.com

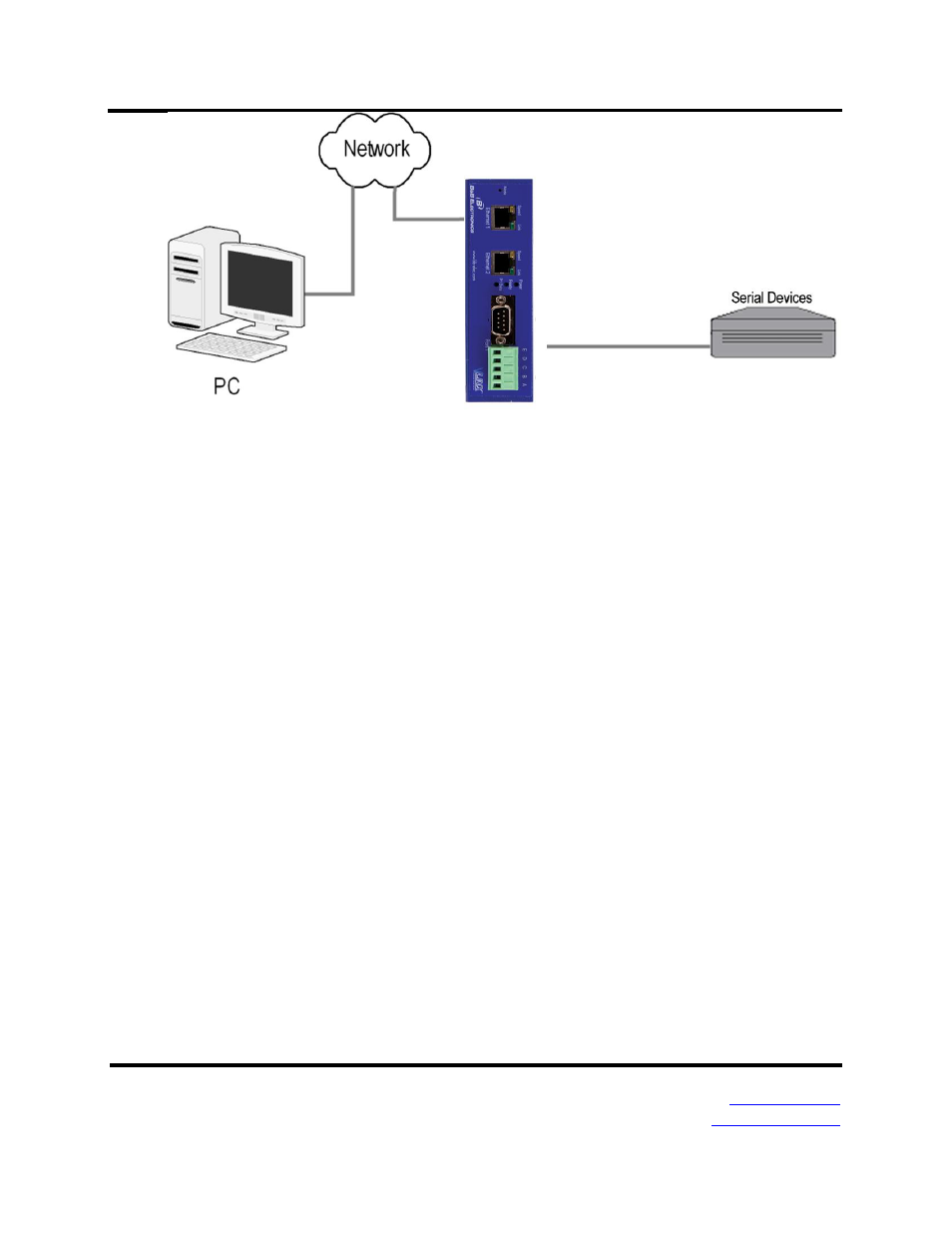

Figure 41. Direct IP Connection
Initiating a Hardware Reset on the Modbus Gateway
To initiate a Hardware Reset on the Modbus gateway, press and hold the
Mode switch for 0 to 2 seconds, and then release it. The LED indicators respond
as follows:
1. The Ready LED blinks while the button is being pressed.
2. When the Modbus gateway has reset and rebooted into Normal Mode the
Ready LED will be blinking.
Reloading Factory Defaults
To reload Factory Defaults, press and hold the Mode switch for more than 10
seconds. The LED indicators respond as follows:
1. The Ready LED blinks three times per second while the button is being
pressed.
The Modbus gateway reloads all factory default configuration parameters.
When the device has reset and rebooted the Ready LED will be blinking.
2. The LEDs go back to their normal states when the device resumes normal
operation.
Note: Factory default parameters are listed in Appendix A
