Setup and Connections Vlinx MESR321 Modbus Gateway
20
MESR321-xx_R001_2113m
www.bb-elec.com
www.bb-europe.com

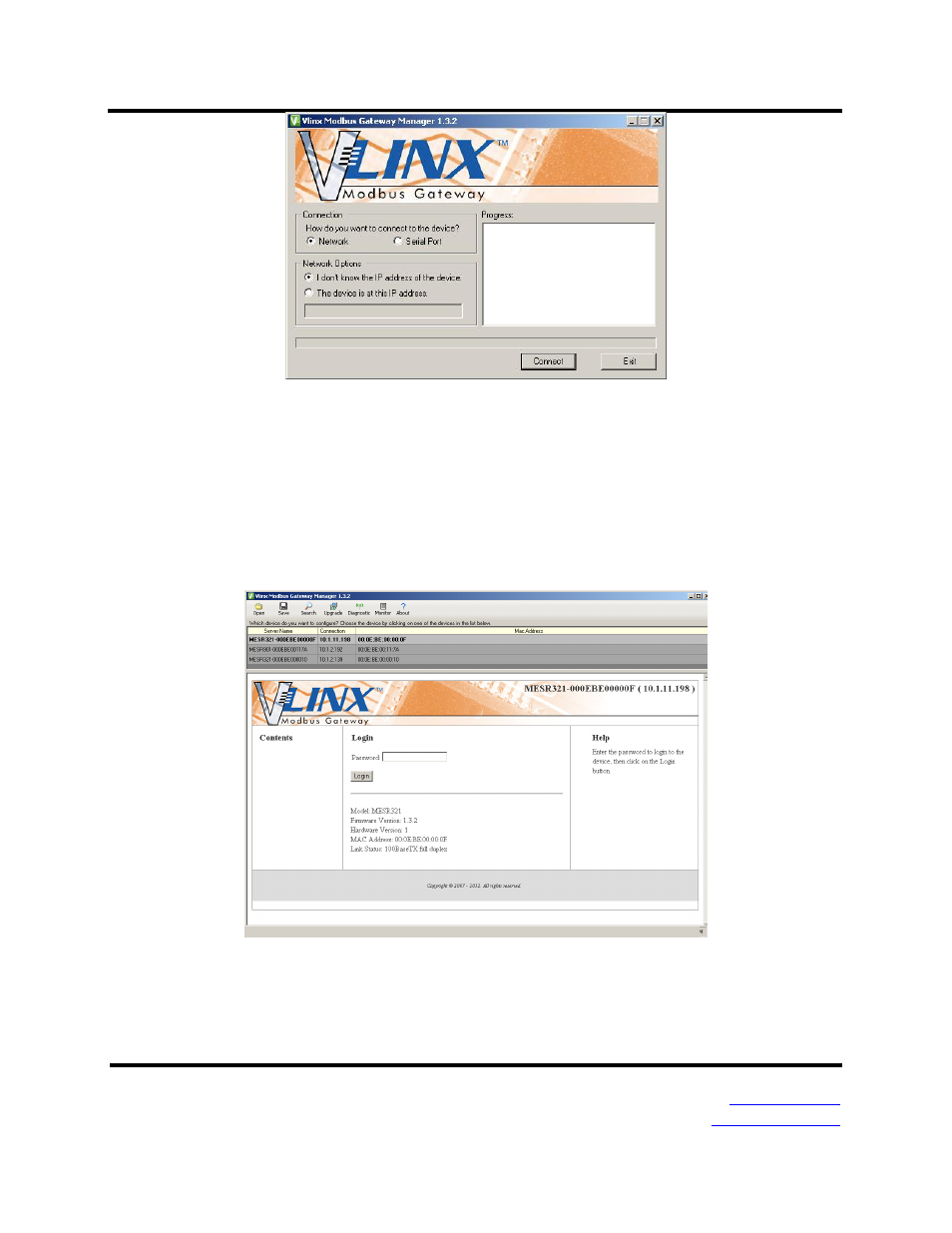

Figure 19. Modbus Configuration Manager Discovery Window
3. If you do not know the IP address, check the “Network” and “I don’t know the
IP address of this device” selections and press the “Connect Button.” The
software will discover any MESR321 Gateways on the network. The
configuration manager screen will be displayed on your computer. All
available devices will be listed on the top portion of this screen. If you know
the IP address, you may select “The Device is located at this IP address” and
input the address in the box provided.
Figure 20. Configuration Manager Screen
4. All Modbus Gateways on the network will be displayed in the top portion of
the screen. To select a gateway, simply click the appropriate device on the
top portion of the screen.
