Setup Examples Vlinx MESR321 Modbus Gateway
49
MESR321-xx_R001_2113m
www.bb-elec.com
www.bb-europe.com
3. Access Port 1 Modbus by clicking the link on the left side of the screen.

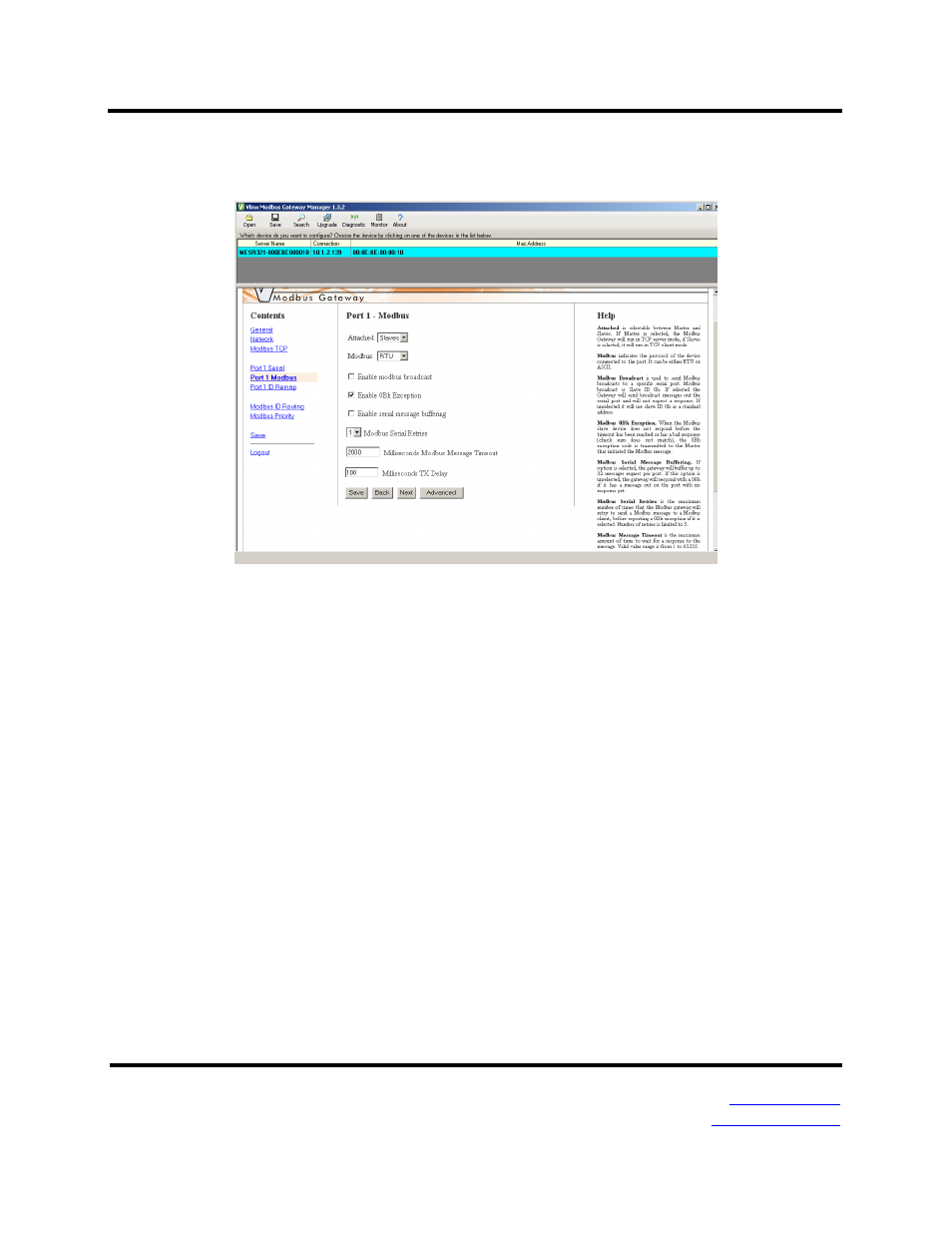

Figure 46. Port 1 Modbus
4. Configure the Port 1 Modbus Settings. In this case Attached should be
slaves, Modbus should be RTU. The other settings depend on your
application.
5. Configure Port 2 Serial and Modbus in the same fashion.
6. Access Modbus ID Remapping for each port and configure as necessary.
