Vlinx MESR321 Modbus Gateway
8
MESR321-xx_R001_2113m
www.bb-elec.com
www.bb-europe.com

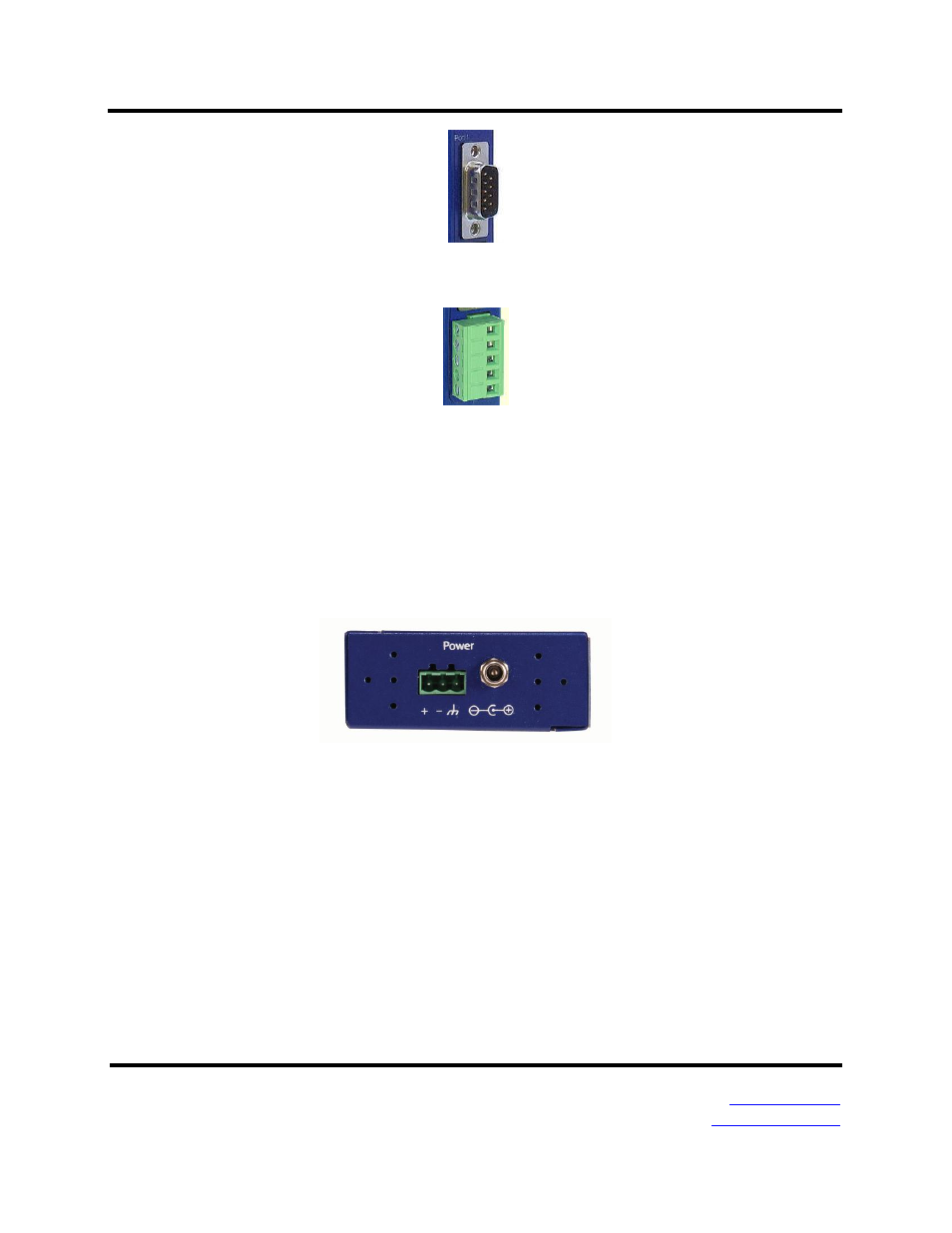

Figure 4. DB-9 Serial Port Connector
Figure 5. Five-Position Pluggable Terminal Block
Note: Refer to Appendix D for connection pin-outs.
Power Connector
Power options include a 5.08 mm 3-position pluggable terminal block and 2.5
mm barrel connector.
.
