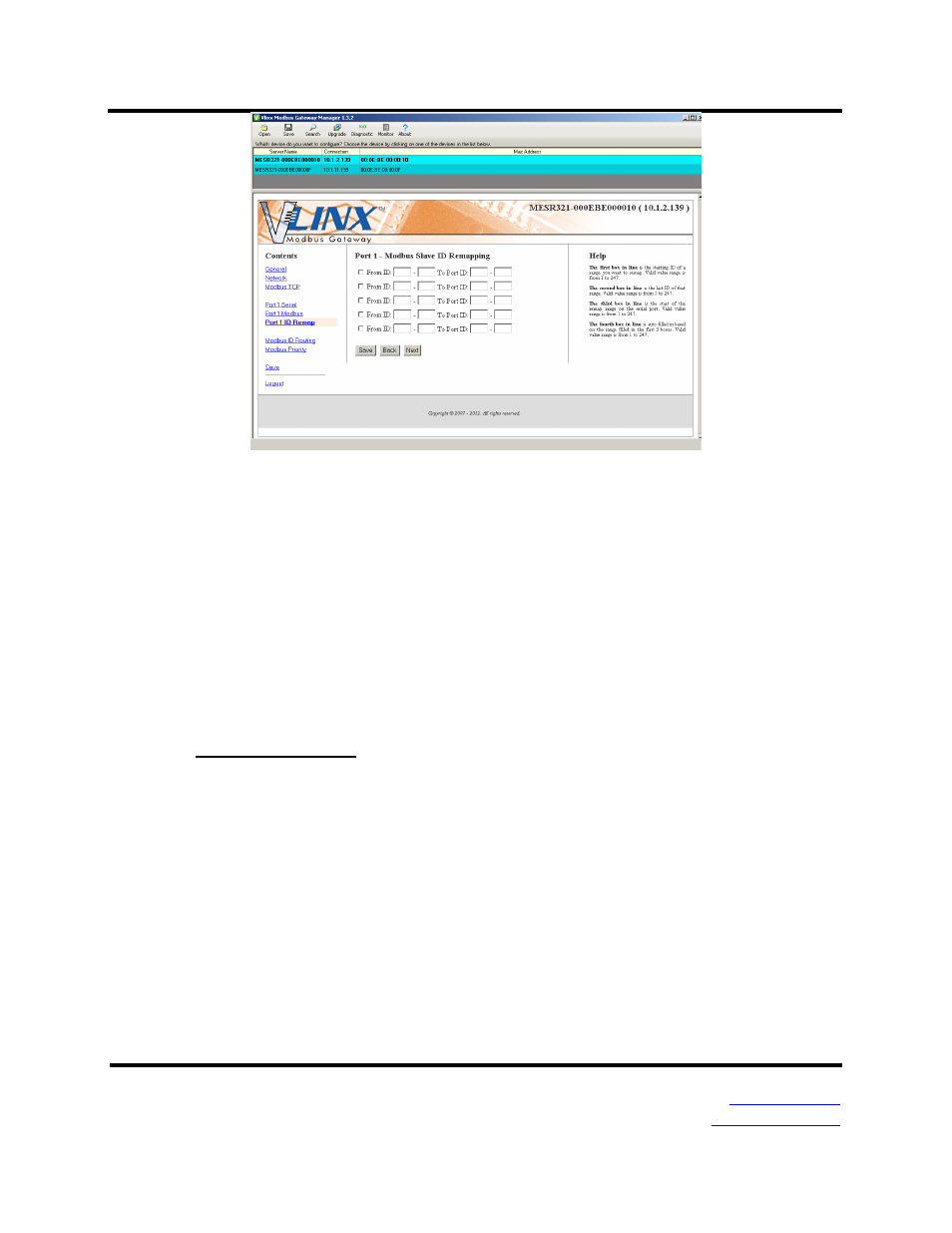

Figure 32. Port ID Remap Screen
c. The first box in line is the start of the remap range on the serial port you
want to remap. Valid value range is from 1 to 247.
d. The second box in line is the last serial port of that range. Valid value
range is from 1 to 247.
e. The third box in line is the starting ID of a range to remap to. Valid value
range is from 1 to 247.
f. The fourth box in line is auto filled in based on the range filled in the first 3
boxes. Valid value range is from 1 to 247.
g.
Save settings by clicking the “Save” button.
13. Modbus ID Routing
a. To access this screen cli
ck the “Next” button or click the “Modbus ID
Routing” Link on the left side of the screen.
b. This screen allows you to set the Modbus Slave ID routing.
