Setup and Connections Vlinx MESR321 Modbus Gateway
34
MESR321-xx_R001_2113m
www.bb-elec.com
www.bb-europe.com

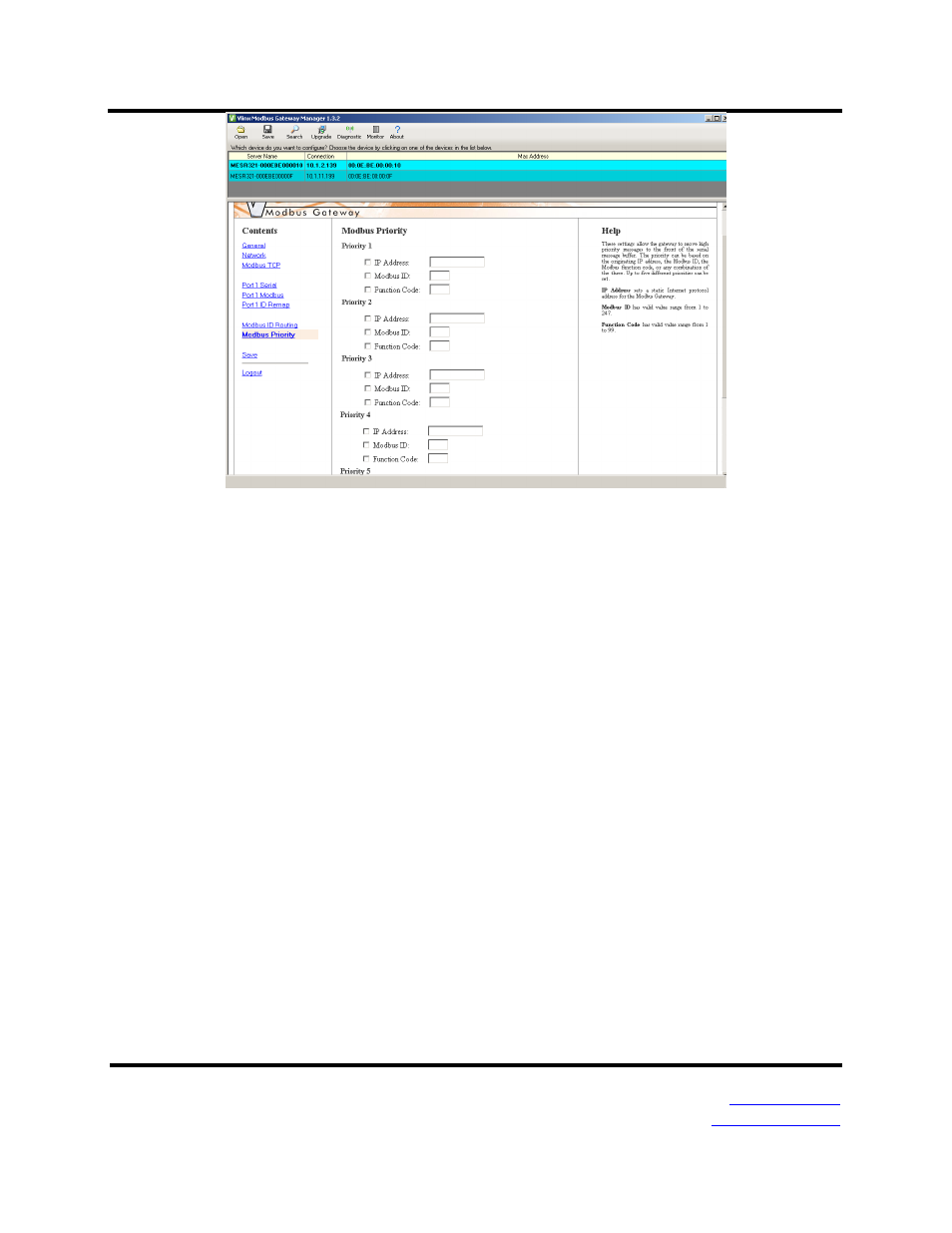

Figure 34. Modbus Priority Screen
c. These settings allow the gateway to move high priority messages to the
front of the serial message buffer. The priority can be based on the
originating IP address, the Modbus ID, the Modbus function code, or any
combination of the three. Up to five different priorities can be set.
d. IP Address – Used to set a static Internet protocol address for the Modbus
Gateway.
e. Modbus ID
– Valid range is from 1 to 255.
f. Function Code – Valid range is from 1 to 99.
g. Save settings by clicking the “Save” button.
Note: For more information on configuration options refer to Section 4:
Description of Modbus gateway Properties.
