Setup and Connections
Vlinx MESR321 Modbus Gateway
21
MESR321-xx_R001_2113m
www.bb-elec.com
www.bb-europe.com
a. The main portion of the screen displays the Model, Firmware version,
Hardware Version, MAC Address, and Link Status. The IP Address is also
displayed on the top portion of the screen and title graphic area.
5. There is no password unless you choose to enter one. The default password
is no password at all
. Click the “Login” button. The “General” Settings screen
will be displayed on your computer.
6. Vlinx Modbus Manager Settings Screen Overview

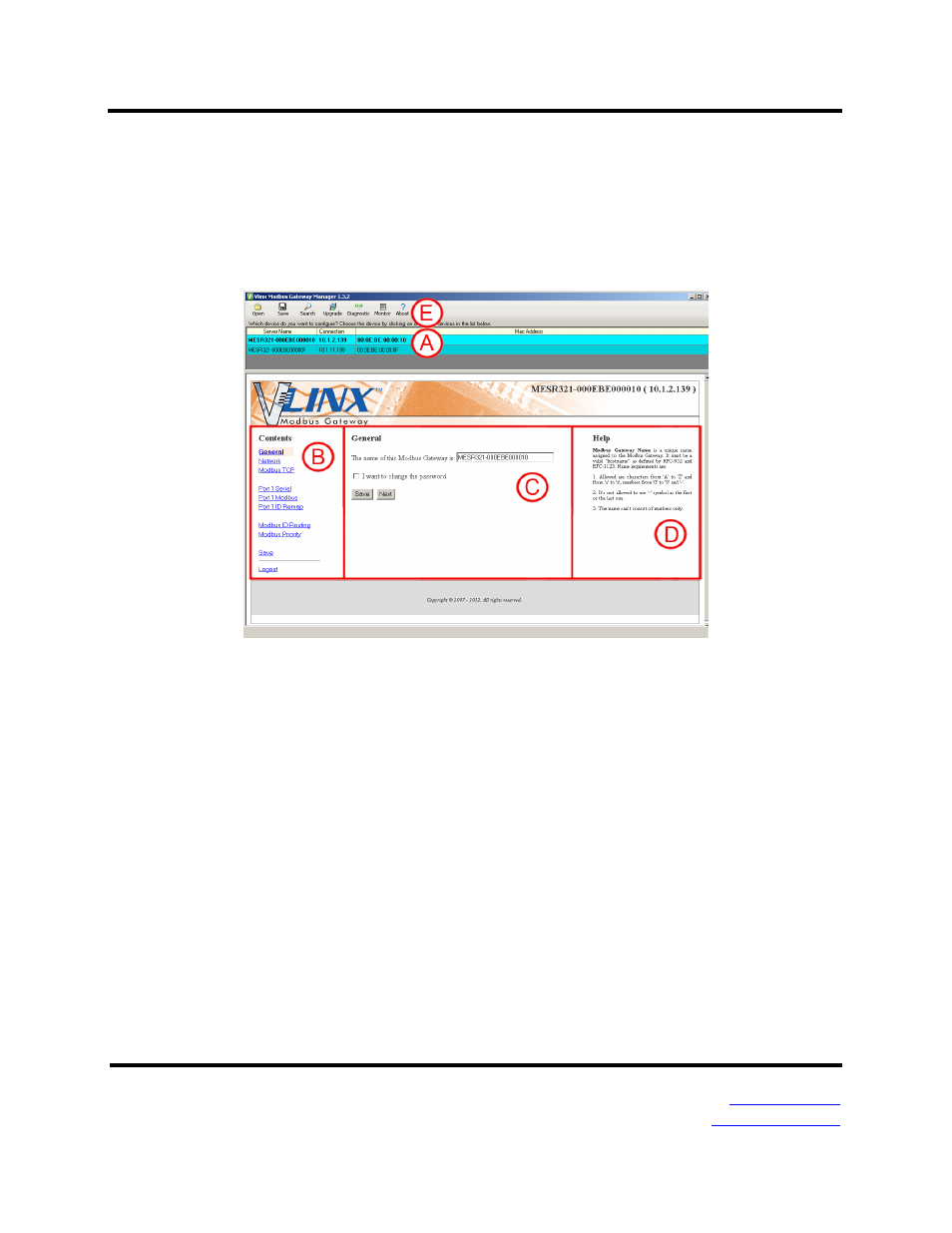

Figure 21. Settings Screen Overview
a. This area shows Modbus Gateways available on the network.
b. This area is used to skip directly to the specific configuration screen you
need to access. An alternate method of accessing the configuration
screens is to use the “Next” button in area C.
c. This area contains dialog boxes specific the configuration screen.
1. Note: Any configuration changes you make need to be
saved using the “Save” button.
d. This area contains helpful information about the configuration screen you
are currently on.
e. This area contains shortcuts to specific functions.
1.
“Open” allows you to load a previously saved configuration file
into your Modbus Gateway.
