I5216 SERIES
Advanced Information
PRELIMINARY
Publication Release Date: November 30, 2001
- 78 Revision A1

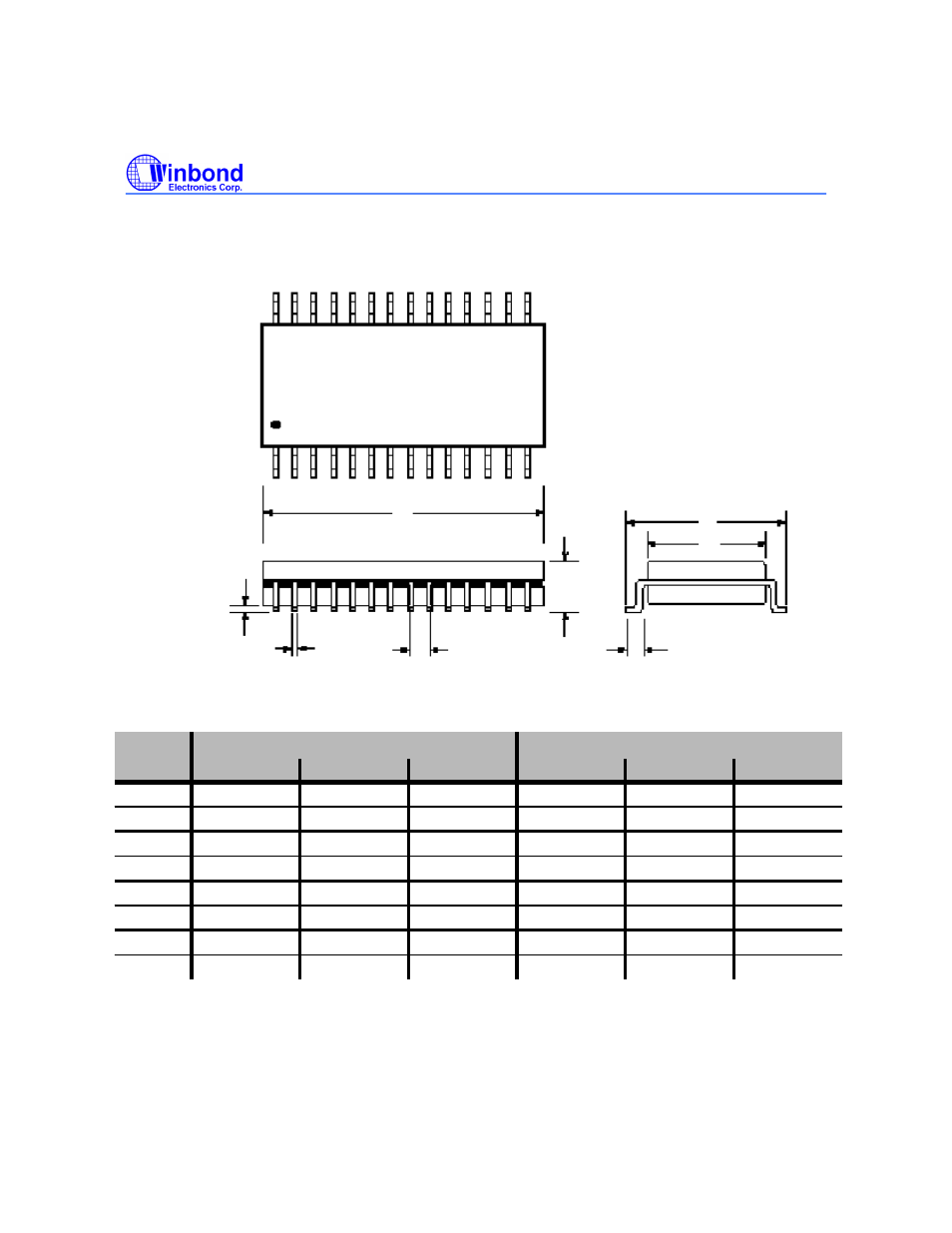

PLASTIC SMALL OUTLINE INTEGRATED CIRCUIT (SOIC) DIMENSIONS
1 2 3 4 5 6 7 8 9 10 11 12 13 14
28 27 26 25 24 23 22 21 20 19 18 17 16 15
A
B
C
D
E F
G
H
Min Nom Max Min Nom Max
A 0.701 0.706 0.711 17.81 17.93 18.06
B 0.097 0.101 0.104 2.46 2.56 2.64
C 0.292 0.296 0.299 7.42 7.52 7.59
D 0.005 0.009 0.0115 0.127 0.22 0.29
E 0.014 0.016 0.019 0.35 0.41 0.48
F 0.050 1.27
G
0.400 0.406 0.410 10.16 10.31 10.41
H 0.024 0.032 0.040 0.61 0.81 1.02
Note: Lead coplanarity to be within 0.004 inches.
PLASTIC SMALL OUTLINE INTEGRATED CIRCUIT (SOIC) DIMENSIONS
INCHES MILLIMETERS
