The RAC pin remains HIGH for 500 µsec and stays LOW for 15.6 µsec under the Message Cueing
mode. See the

Timing Parameters

table on page 55 for RAC timing information at other sample rates.

When a record command is first initiated, the RAC pin remains HIGH for an extra T

RACLO

period in

order to load sample and hold circuits internal to the device. The RAC pin can be used for message
management techniques.

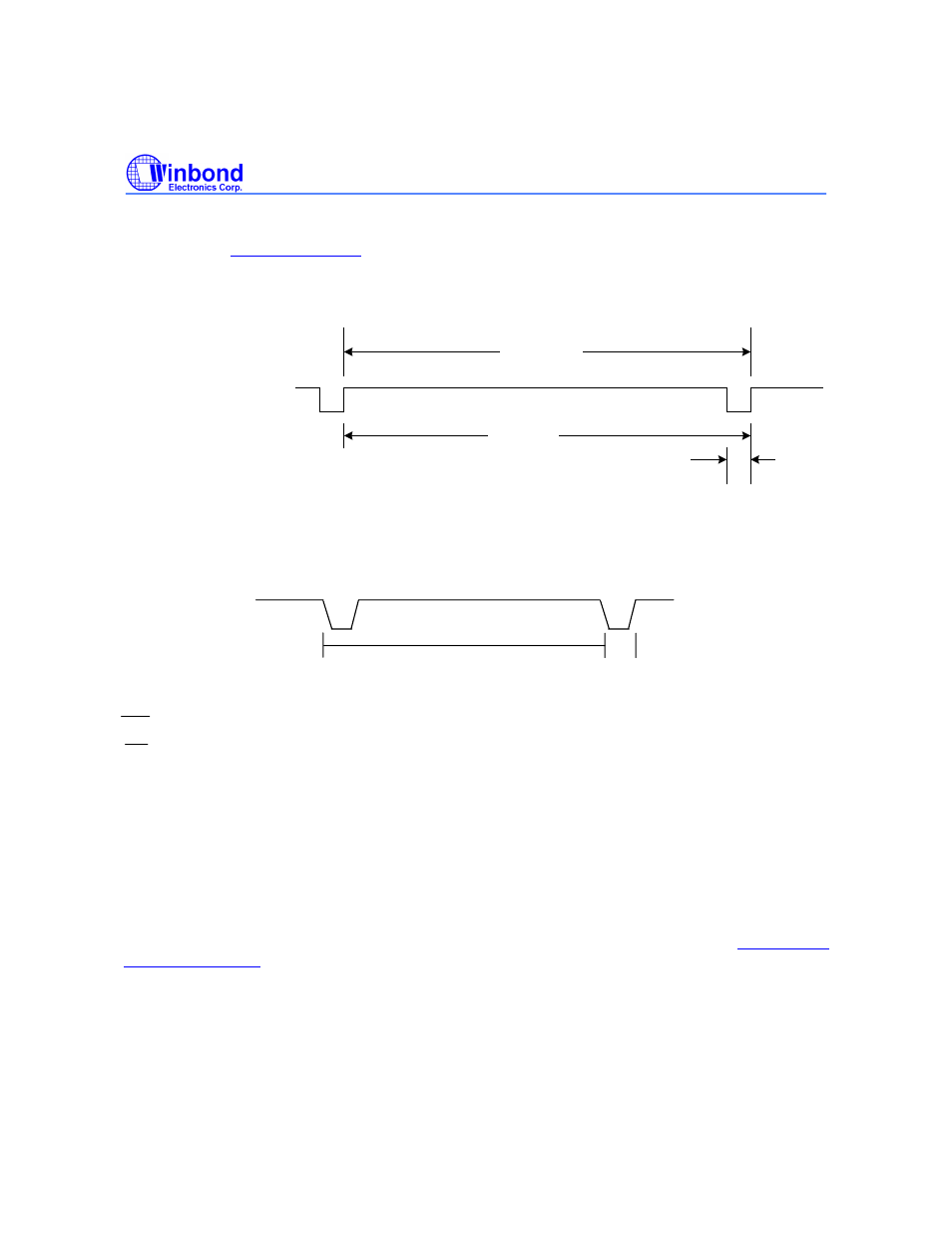

1 ROW

RAC Waveform

During Message Cueing

500 usec

T

RAC

15.6 us

T

RACLO

RAC Waveform
During Digital Erase




INT (Interrupt)

INT is an open drain output pin. The Winbond I5216 Interrupt pin goes LOW and stays LOW when an
Overflow (OVF) or End of Message (EOM) marker is detected. Each operation that ends in an EOM or
OVF generates an interrupt, including the message cueing cycles. The interrupt is cleared by a READ
STATUS instruction that gives a status byte out the SDA line.

MCLK (Master Clock Input)

The Master clock input for the Winbond I5216 product has an internal pull-down device. Normally, the
Winbond I5216 ChipCorder section is operated at one of four internal rates selected for its internal
oscillator by the Sample Rate Select bits. If the internal oscillator is powered down (configuration bit
OSPD set to ONE), the device is clocked through the MCLK pin as shown in the section

I5216 Analog

Structure (right half)

description on page 36.






.

25 µsec

1

.

25 µsec
