I5216 SERIES
Advanced Information
PRELIMINARY
Publication Release Date: November 30, 2001
- 34 Revision A1
MESSAGE CUEING
Message cueing allows the user to skip through messages, without having to know the actual physical
location of each message. This operation is used during playback. In this mode, the messages are
skipped 512 times faster than in normal playback mode. This operation will stop when an EOM marker
is reached. Then, the internal address counter will be pointing to the next message.
ANALOG MODE
AUX IN DESCRIPTION
The AUX IN is an additional audio input to the Winbond I5216, such as from the microphone circuit in a
mobile phone “car kit.” This input has a nominal 700 mV p-p level at its minimum gain setting (0 dB).
(See
Aux In Amplifier Gain Settings table on page 50.) Additional gain is available in 3 dB steps
(controlled by the I 2 C serial interface) up to 9 dB.

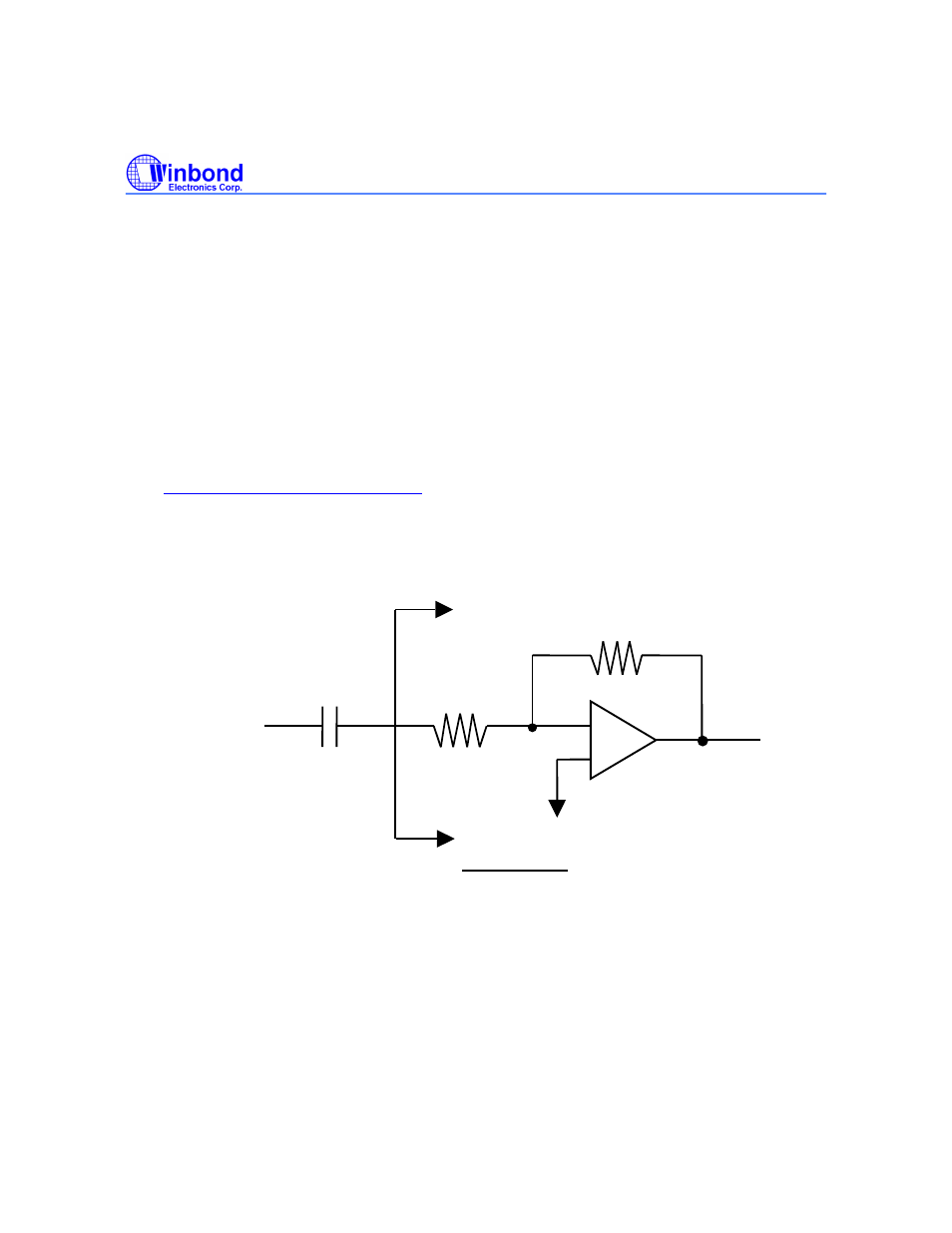

AUX IN
Input Amplifier
AUX
IN
Input
C
COUP
=0.1
µ
F
Ra
Rb
INTERNAL TO THE DEVICE
NOTE: f
CUTOFF
=
2
π
RaC
COUP
1
