VEGACOM 557 Profibus FMS 7
Product description

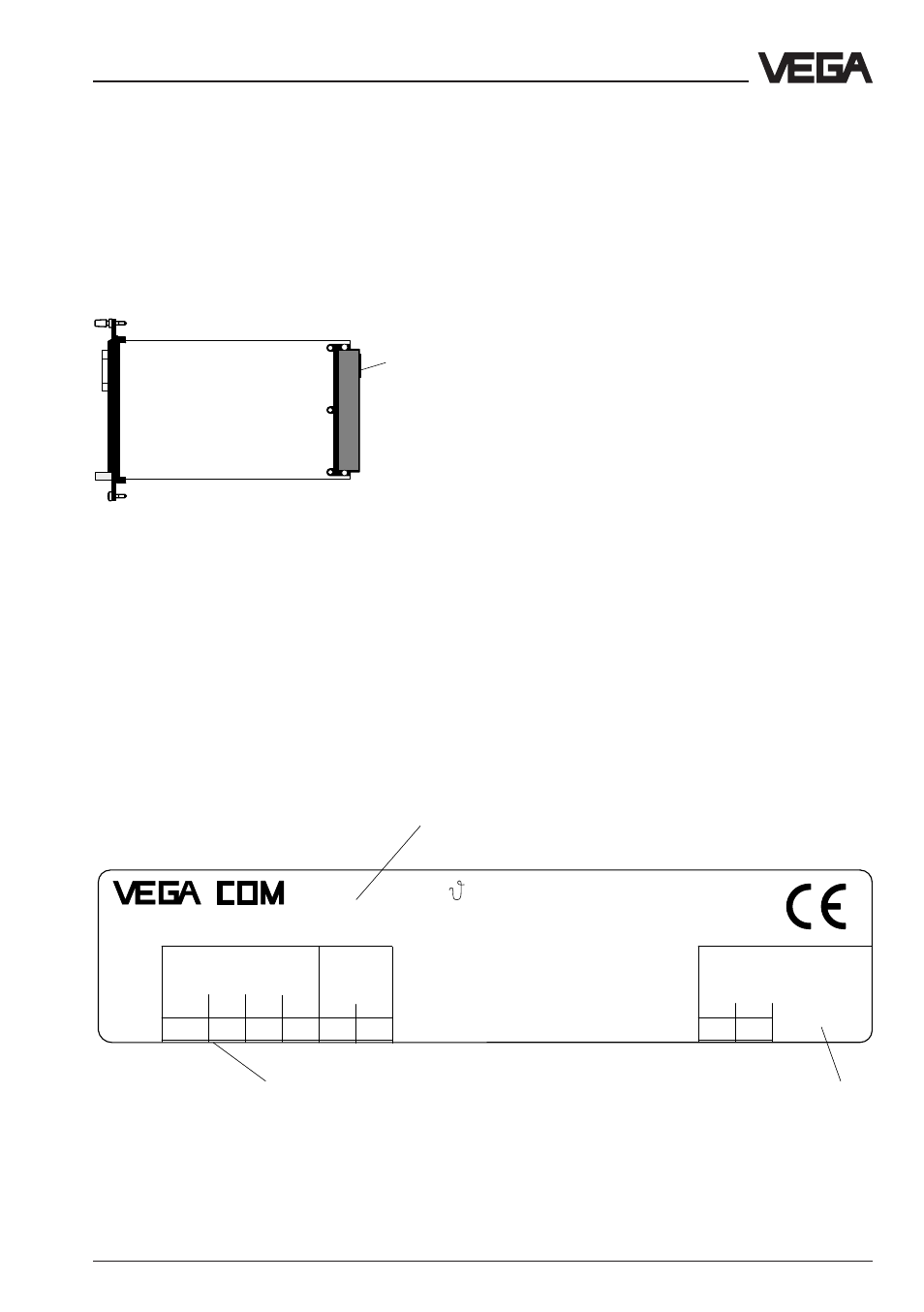

1.2 Type plate
Type plate
Prior to mounting and electrical connection,
please check if you are using the correct
version of VEGACOM 557. Please note the
type plate, located on the multiple plug.
The type plate contains important information
required for electrical connection. The layout
and data elements of the type plate are ex-
plained in the illustration below.
Note:
The serial number of your VEGACOM is on
the rear of the plug connector.
1 Version: Profibus FMS
2 Supply voltage
3 Terminal assignment of the RS 485 interface to the Profibus
Type plate on
the multiple
plug
®
Profibus FMS
RS 485
d32 d16 d30
N- L+
557
z2 d2
DATA
IP 40 (front)
a: -20 ... +60˚C
power supply
20 ... 53V AC
6 VA
20 ... 72 V DC
z22 z24
- +
DIS
DATA GND
d28
Insp.
3 2
1
GND-1
