2.1 Mounting instructions
The gateway VEGACOM 557 can process
measurement data and status information in
two different ways:
- via DISBUS (from measuring systems with
VEGAMET)
- via LOGBUS (from measuring systems
with VEGALOG).
For DISBUS configurations, VEGACOM 557
can be either mounted into carrier BGT 596
or housing type 505.
In conjunction with LOGBUS, VEGACOM 557
is mounted into carrier BGT LOG 571. The
location is individually selectable, the system
adapts automatically when rebooting
(autoconfiguration).

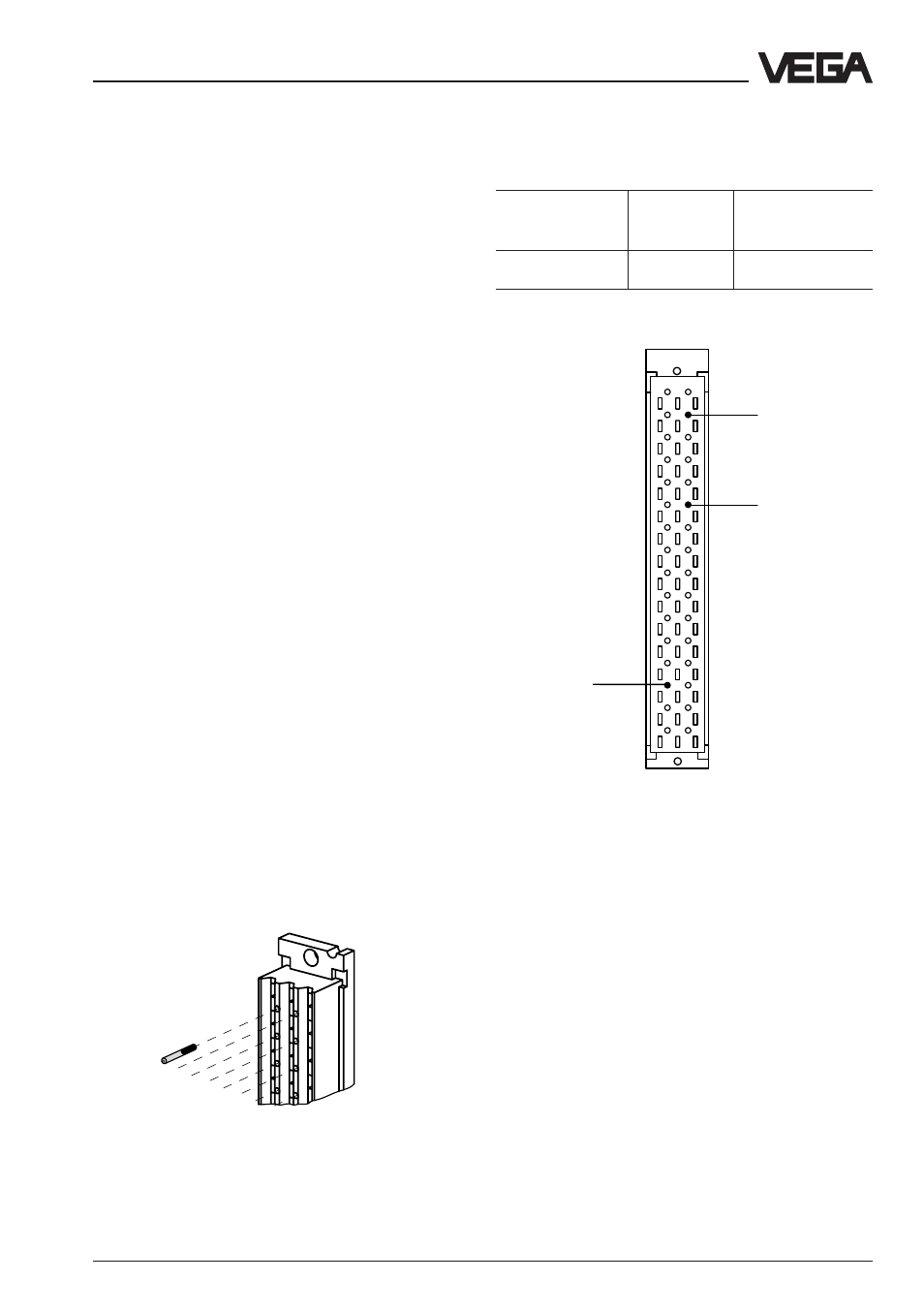

Coding
A mechanical coding system prevents mixing
up the different module cards in the carrier or
in the housing.
The coding system consists of:
- three coded pins in the multipoint connec-
tor
- three holes in the multiple plug of
VEGACOM 557.
The coded pins are provided with the module
or the housing. The user must fit the plug-in
socket with the coded pins according to the
following table and diagram.
Instrument coding Function coding
Coded pin
Plug-in socket of VEGACOM 557
Positioning of the coded pins
Instrument Function
coding coding
VEGACOM 557 a27 c3/c11
