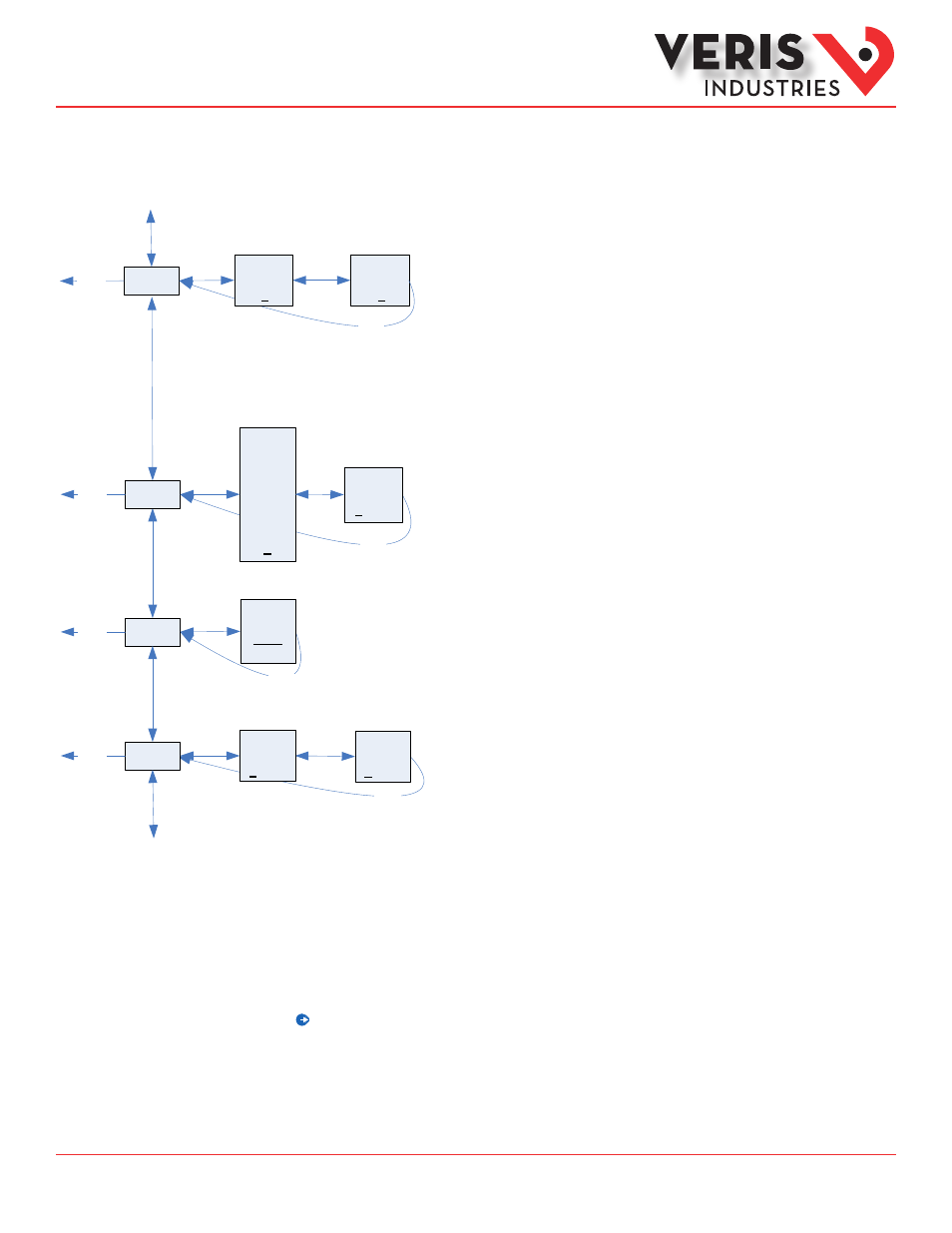

Set Passwords:

SETUP - The Password to enter the SETUP menu.

RESET - The Password to enter the RESET menu.

RESET

--------

00000

SPASS

Setup

Passwords

SETUP

--------

00000

Back

Next

SDMND

INTRV

--------

6

5

4

3

2

1

Demand

SEC

--------

00900

Back

Set Demand Interval:

INTRV - The number of Sub-Intervals (1 to 6) in a Demand Interval.

Default is 1 (block demand).

SEC - Sub-Interval length in seconds. Default is 900 (15 minutes).

Set to 0 for external sync-to-comms.

Next

S DIS

Display

Units

UNITS

--------

IEEE

IEC

Back

Set Display Units: +/- to switch between:

IEEE – VLL VLN W VAR VA Units.

IEC – U V P Q S Units.

To Setup p. 1 “S PWR”

SPLOS

Back

IMBAL

--------

0.25

Next

VOLTS

--------

0.10

Set Phase Loss:

VOLTS - Phase Loss Voltage: Phase Loss Voltage Threshold in

percent of system voltage. Any phase (as configured by the System

Type) whose level drops below this threshold triggers a Phase Loss alert.

For example, with the system type set to 40 (3L+N) and the System

voltage set to 480V L-L, the L-N voltage for each phase is 277V.

When this threshold is set to 10%, if any phase drops to less than 10%

of 277V (less than 27.7V), or if any L-L voltage drops to less than 10% of

480V (less than 48V), the corresponding phase loss alarm activates.

IMBAL - Phase Loss Imbalance: Phase Loss Imbalance Threshold in

percent is the fractional difference in Line to Line voltages above which

Phase Loss Alarm is on. For a 3-phase Y(3+N) system (type 40), both

Line to Neutral and Line to Line voltages are tested. In a 3-phase delta

system (type 31), only the Line to Line voltages are examined. In a single

split-phase (2+N) system (type 12), only the Line to Neutral voltages are

compared. For system types 1+N (10) and 2 (11), imbalance is not tested.

Phase

Loss

To Setup page 1 “S CT”

UI for Setup (cont.)

† When leaving this parameter screen using the right button ( ), the display will briefly indicate “SAvEd)” to confirm that any changes made have been accepted.
