Function, Figure 4, Dimensions vc-2-sl – M&C TechGroup VC-2-SL Operator's manual User Manual
Page 10
10
Gas sampling and gas conditioning technology
3-0.1-ME

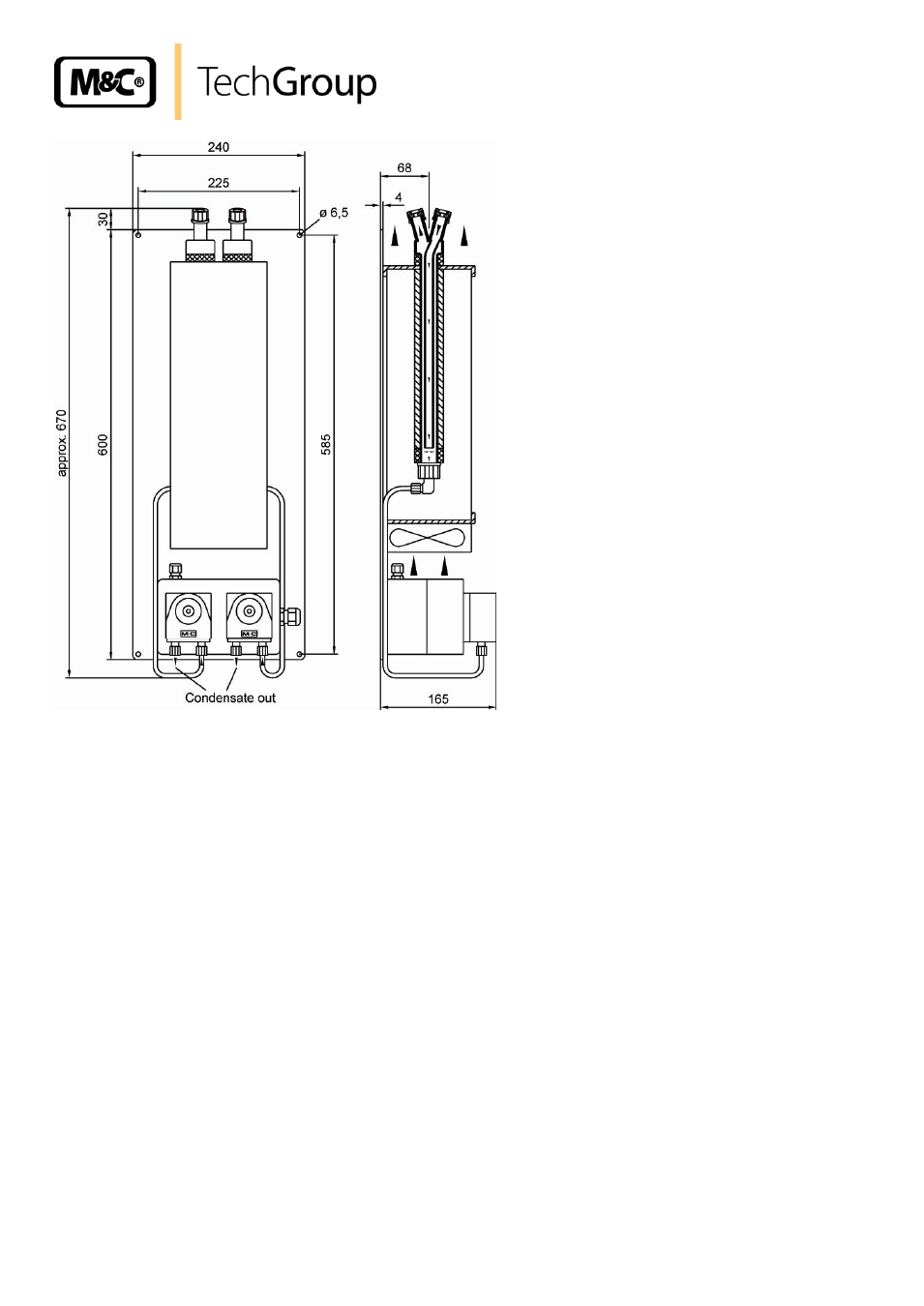

Figure 4 Dimensions VC-2-SL
10
FUNCTION
The especially for gas analysis designed M&C gas pre-cooler type VC-.. cools sample gas down to
ambient temperature. The novel construction of the jet-stream heat exchangers guarantees a very
good pre-separation of condensate and for that reason an optimal drying of sample gas with a
minimum of washing out effects. Figure 3 shows the functional diagram of the heat exchanger.
